The Ultimate 120cc Hybrid Evolution

The Pilot-RC 103″ Raven is the culmination of a intensive design journey that began in early 2025. Our mission was clear: synthesize the world-class features of our most successful platforms into a single, dominant 120cc airframe. By blending the cutting-edge, lightweight wing technology of the Extra 330SX with the legendary tail authority and side profile of the Extra NG V2, we have created a “super-hybrid” that defines the modern aerobatic experience.

Extensively flight-tested through three generations of prototypes, the Raven has been refined to hit the perfect “sweet spot.” It delivers the aggressive 3D agility you demand with the rock-solid tracking and precision required for high-level sequences.

Whether you are pushing the envelope in low-and-slow high-alpha flight or screaming through a precision line, the Raven 103″ provides a connected, intuitive feel that inspires total confidence. This isn’t just another airplane; it’s the new benchmark for Pilot-RC performance

Specifications:

Video:

COWL AND WHEEL PANTS WITH SCALE DETAILING:

“SPARE” transparent cowl for easy markings:

FULL GALLERY:

FEATURES:

• NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
• NEW! Patented quick assembly system for wings, stabilizer no tools require
• NEW! Patented quick assembly system for canopy.
• NEW! Pre-installed blind nut on tip wing for night flight light system
• NEW! Counter balance on tip aileron for allow servo outboard move closer to inboard servo for lighter tip wing and crisp snap roll
• NEW! Fiberflass canopy frame.
• NEW! Spinner painted special color scheme (additional option)
• Film covering applied over a Genuine German Oracover (Ultracote) base
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and pinned)
• Internally mounted cowling – so no visible external screw expose
• Removable wings and stabs
• Laser engraved motor mounting position
• Easy canister installation due to open construction
• Pull push system for Rudder servo

Included hardware:

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• “Spare” lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Pre-prepared pushrods with ball links
• Matching plain color carbon spinner 5”
• Special color spinner available separately
• Baffles cooling for intake cowl to cylinder

CRASH KITS AVAILABLE FOR THIS MODEL:

• Landing gear repair package. Includes the wooden parts required to repair the damage often suffered around the landing gear area.
• Front fuselage repair package. Includes the wooden parts required to repair the damage often suffered around the front of the model
• Please note that additional or alternative spare wood outside of the above Packs is not available to order.

Required hardware:

Motor: 80-120cc or equivalent electric

Servos: 7 high torque plus throttle // Uses x2 per aileron, x1 per elevator half and x1 or x2 on rudder using push-pull

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Pilot-Rc recommended hardware:

• Servos: Pilot-Rc PW48AH (48Kg – 0,10s at 8,4v)
• Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)
• Wingbags: Pilot-RC wingbags
• Suncover: Acrobatic Suncover

Colour schemes available:

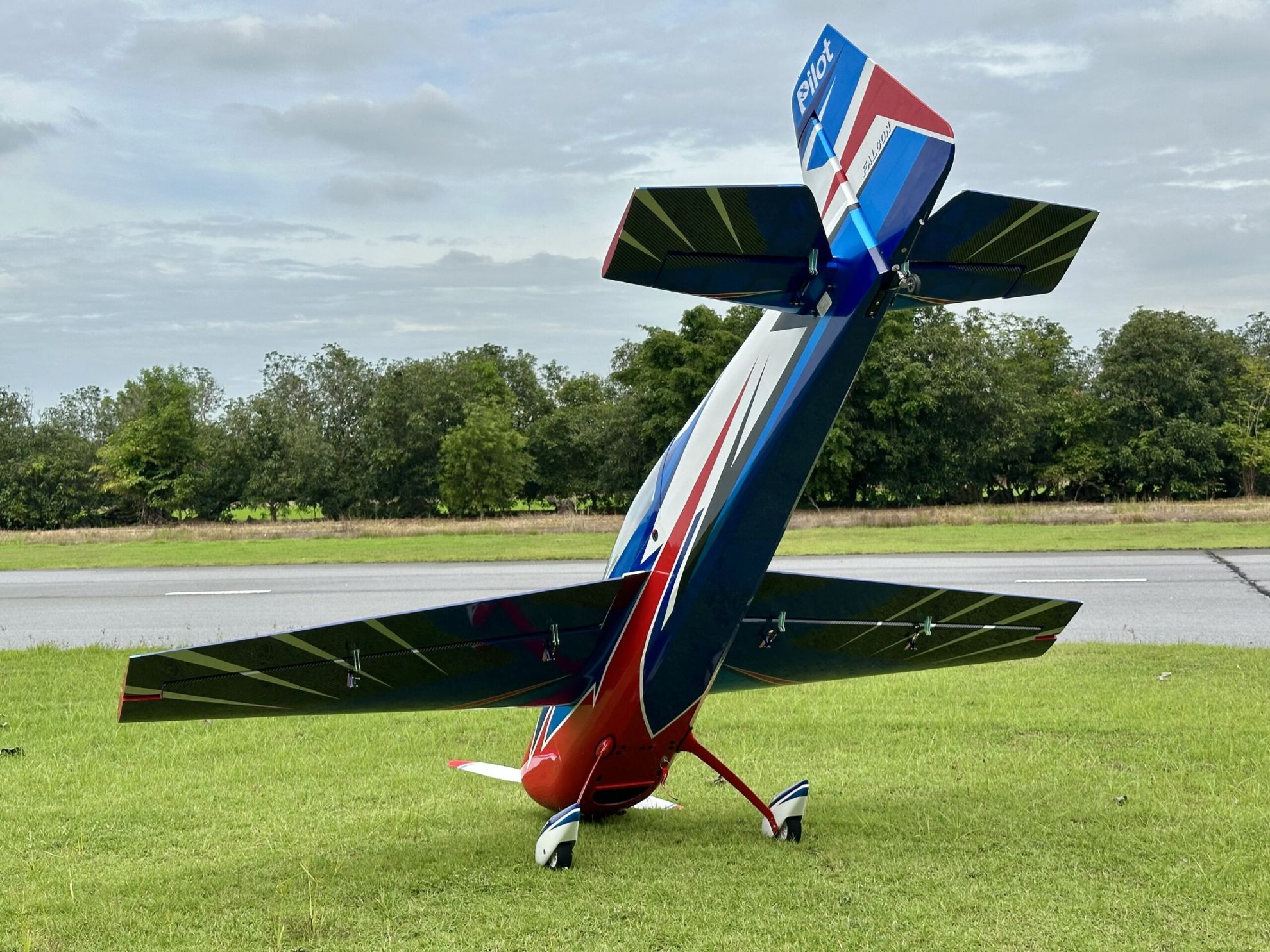

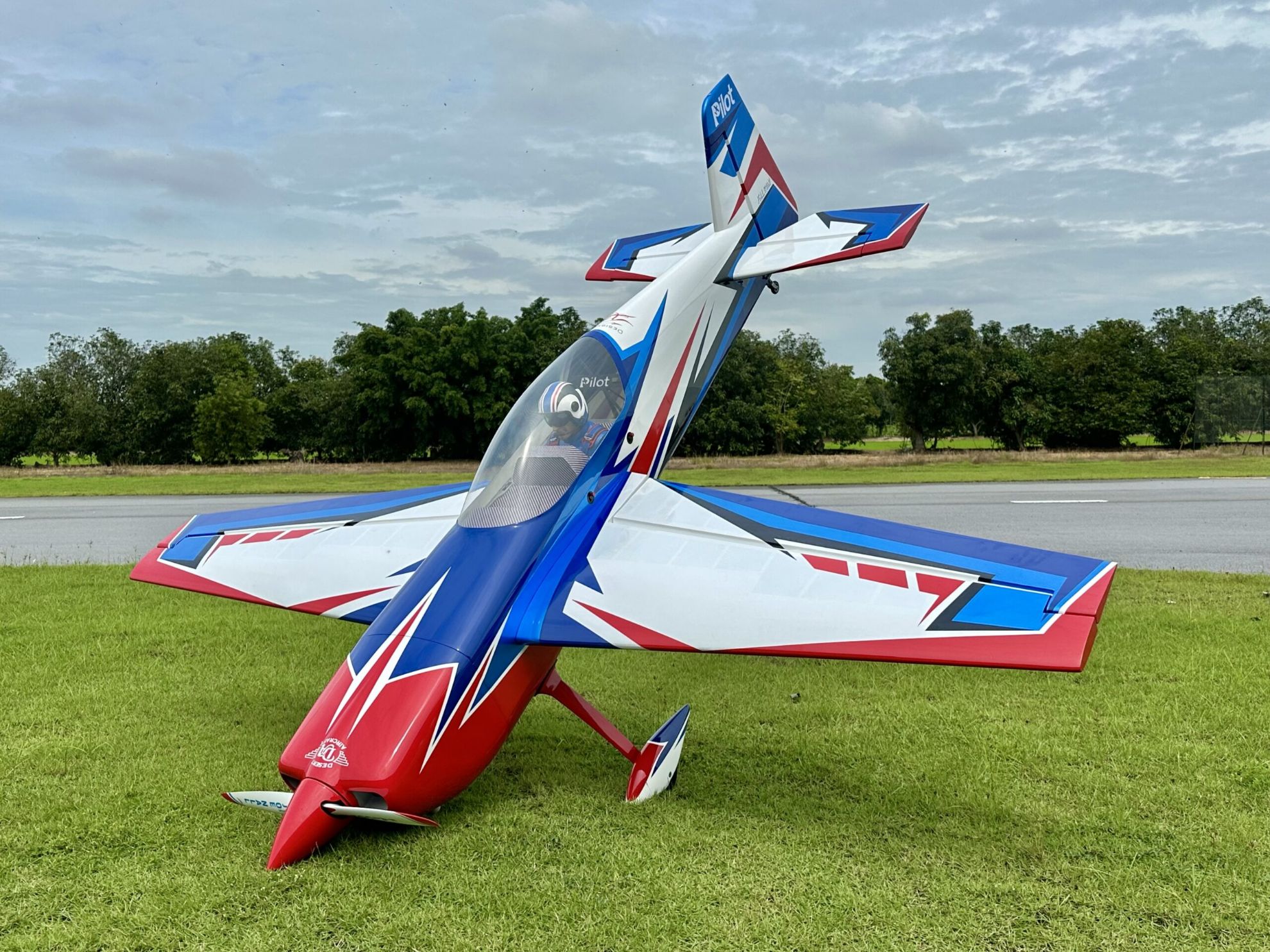

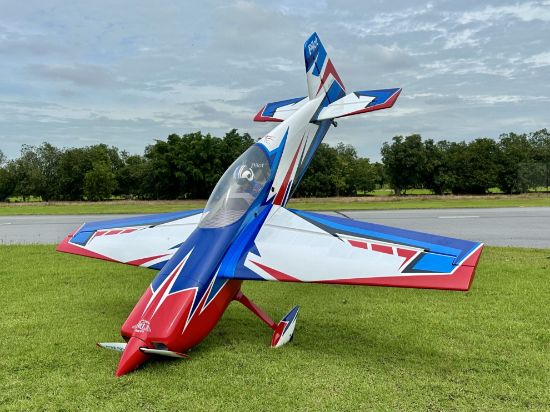

Colour scheme 01:

Colour scheme 02:

---

Build information

COWL SIZE:

---

EXHAUST TUNNEL SIZE:

---

RUDDER HORNS AND PULL PULL LOCATION:

---

Extension wire lengths:

Throttle:
25cm

Each wing:
Inside aileron 30cm
Outside aileron 80cm
(to reach receiver direct)

Each elevator:
136cm

Each rudder servo:
136cm

---

CENTER OF GRAVITY:

215mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

---

FULL Build manual:
