If you are looking for a big plane that runs on a small engine and can still do all the tricks while still being stable, forgiving and even relaxing… You need a Decathlon!

SPECIFICATIONS:

VIDEO AND GALLERY:

 FEATURES:

• Strong yet light weight design, good for acrobatic  flying and can even hover!
• Genuine German Oracover (Ultracote) covering
• Fast to put together at the field
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and pinned)
• Internally mounted cowling – so no external screws exposed
• Removable wings and stabs
• Laser engraved motor mounting position and multiple servo locations available for Rudder setup (pull pull or direct push pull)
• Optional LED Light Set

INCLUDED HARDWARE:

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Pre-preared pull-pull wires and pushrods with ball links
• Matching carbon spinner

REQUIRED HARDWARE:

Motor: 30-60cc or equivalent electric

Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x1 per aileron, x1 per flap, x1 per elevator and x1 or x2 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:

• Servos: Pilot-Rc PW27AH (27Kg – 0,119s at 8,4v)
• Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)
• Lighting: Pilot-RC LED Light set for Decathlon with programmer

COLOUR SCHEMES AVAILABLE:

Colour scheme DE-CH3:
References: Oracover 21-010, 21-050, 21-023 / Ultracote HANU870, HANU873, HANU89*



Colour scheme DE-04:
References: Oracover 21-010, 21-022, 21-052 / Ultracote HANU870, HANU883, HANU885

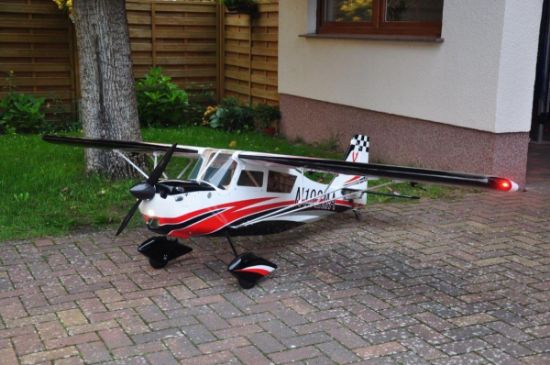

Colour scheme DE-09:
References: Oracover 21-010, 21-071, 21-091, 21-022 / Ultracote HANU885, HANU874, HANU881, HANU877



BUILD MANUALS

More photos available on the Pilot-RC facebook: www.facebook.com/pilotrcmodel
