O.S. OSMG9515 .15 Brushless Outrunner Motor 3815-1000

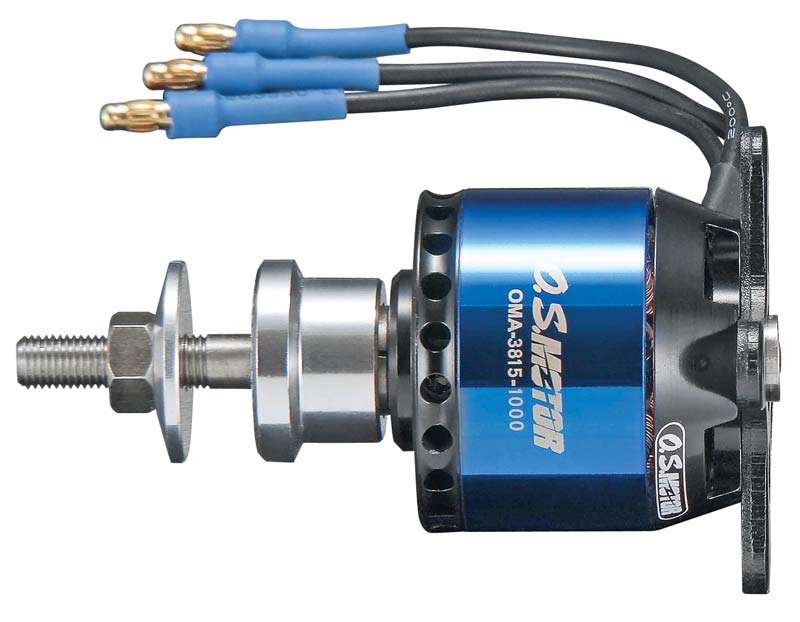

This is the .15 OMA-3815-1000 Brushless Electric Motor from O.S. Motors.

FEATURES

For .15 size airplanes
 Stainless steel prop shaft
 Rigid rear mounting design

INCLUDES

.15 Brushless Electric Motor with Backplate
 Propeller Adapter
 3.5mm Gold Plated Male Plugs attached to leads
 Three 3.5mm Female Plugs with Shrink Wrap
 Instruction Sheet

REQUIREMENTS

50 - 70A brushless ESC
 Slow flyer type electric propeller from 9x6 to 12x6 in size
 depending on specific aircraft

SPECIFICATIONS

Rated Voltage: 11.1
 Rated Current: 35A
 Maximum Current (5 sec): 60A
 No Load Current: 1.1A
 Phase Resistance: 36.5 miliohms
 Maximum Efficiency: 85%
 kV: 1000
 Turns: 16
 Poles: 14
 Shaft Diameter: 0.16" (5mm)
 Shaft Length: 0.46" (11.7mm)
 Weight: 4.6oz (130g)
 Lead Wire Length: 1.96" (50mm)
 Lead Wire Gauge: 17AWG
 Length of Motor Can: 1.5" (37.8mm)
 Diameter of Motor Can: 1.45" (37mm)
 Prop Washer Diameter: 0.78" (20mm)
 Thickness of Motor Mount: 0.118" (3mm)
 Width of Motor Mount: 1.96" (50mm)
 Height of Motor Mount: 1.96" (50mm)

COMMENTS

Nomenclature is defined as follows:
 0MA means 0.S. airplane motor
 First two digits are the rotor diameter
 Second two digits are the length of the magnets
 Last digits indicate the kV of the motor
