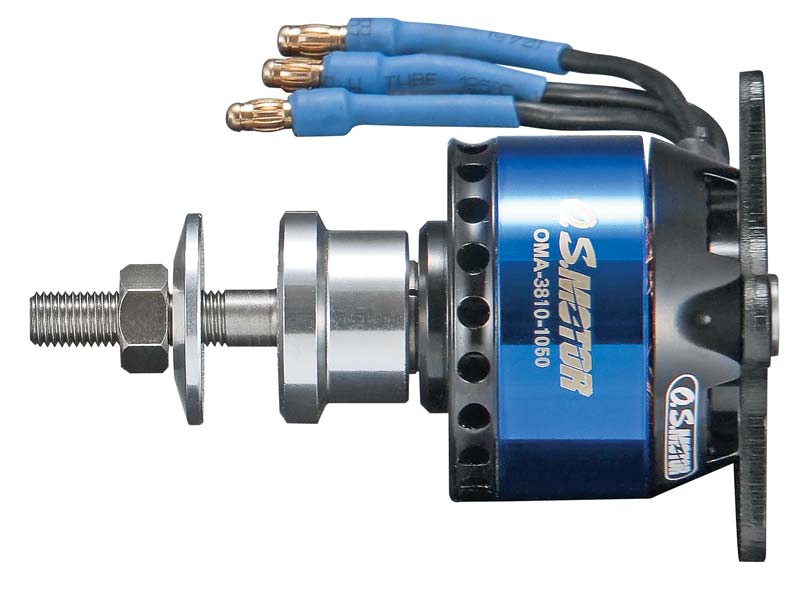

O.S. OSMG9510 .10 Brushless Outrunner Motor 3810-1050

This is the .10 OMA-3810-1050 Brushless Electric Motor from O.S. Motors.

FEATURES

For .10 size airplanes
 Stainless steel prop shaft
 Rigid rear mounting design

INCLUDES

.10 Brushless Electric Motor with Back plate,
 3.5mm Gold Plated Male Plugs attached to leads,
 three 3.5mm Female Plugs with Shrink Wrap, and
 Instruction Sheet

REQUIREMENTS

50 - 60A Brushless ESC
 Slow flyer type electric propeller from 9x6 to 11x10 in size
 depending on specific aircraft

SPECIFICATIONS

Rated Voltage: 11.1
 Rated Current: 30A
 Maximum Current (5 sec): 50A
 No Load Current: 1.1A
 Phase Resistance: 51.3 milliohms
 Maximum Efficiency: 85%
 kV: 1050
 Turns: 22
 Poles: 14
 Shaft Diameter: 0.16" (4mm)
 Shaft Length: 0.46" (11.7mm)
 Weight: 3.6oz (102g)
 Lead Wire Length: 1.96" (50mm)
 Lead Wire Gauge: 17AWG
 Length of Motor Can: 1.3" (32.8mm)
 Diameter of Motor Can: 1.45" (37mm)
 Prop Washer Diameter: 0.78" (20mm)
 Thickness of Motor Mount: 0.118" (3mm)
 Width of Motor Mount: 1.96" (50mm)
 Height of Motor Mount: 1.96" (50mm)

COMMENTS

Nomenclature is defined as follows:
 0MA means 0.S. airplane motor
 First two digits are the rotor diameter
 Second two digits are the length of the magnets
 Last digits indicate the kV of the motor
