O.S. OCA150 50Amp 25V ESC

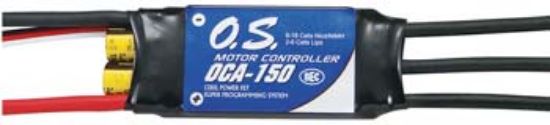

This is the OCA-150 50A 25V Electronic Speed Control from O.S.

FEATURES

For airplane and helicopter usage
Low voltage cut-off stops motor before control is lost and cells are over-discharged
Battery type and cell number recognition
Start protection guards against involuntary starting of motor
No signal cut-off switches ESC off when transmitter signal is not received

INCLUDES

OCA-150 50A 25V Electronic Speed Controlwith pretinned Motor and
Battery Leads, Receiver Connector and Instructions

REQUIREMENTS

Brushless motor such as the O.S. OMA-3820-1200 OSMG9525,OMA-3825-750 OSMG9530, OMA-3815-1000 and OMA-3810-1050
Battery connectors of modeler's choice (O.S. motors listed above include ESC connectors)

SPECIFICATIONS

Cell Handling Capability: 6-18 NiCd/NiMH, 2-6 LiPo
Function: Forward-Stop-Brake-Reverse
Voltage Range: 6-25V
Peak Load Current: 50A (60A 5 seconds)
BEC Output: 5.5V 3A (peak 5A)
PWM Frequency: 32kHz
Protective Function: Start protection/Low Voltage/ No Signal cut-off/
Overheat protection
Parameter Setting: ESC/ESC Programmer OCP-1 (optional extra)
Dimensions: 1.9 x 0.79 x 0.39" (50 x 20 x 10mm)
Weight: 1.8oz (52g)
