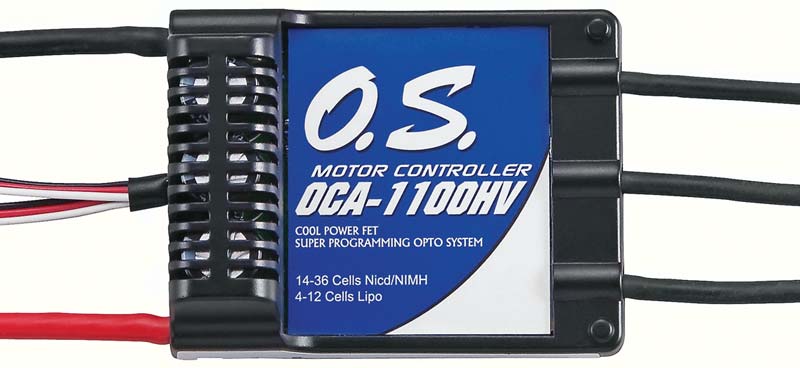

O.S. OCA1100HV 100Amp 50V ESC

This is the OCA-1100 100A 50V High Voltage Electronic Speed Control from O.S.

FEATURES

For airplane usage
Low voltage cut-off stops motor before control is lost and cells are
over-discharged
Battery type and cell number recognition
Start protection guards against involuntary starting of motor
No signal cut-off switches ESC off when transmitter signal is not
received
Extension wire for O.S OCP Programmer (programmer not included)
Anti spark function reduces sparking when connecting power battery

INCLUDES

OCA-1100 100A 50V Electronic Speed Control, 12" (305mm) Extension
 Wire and Instructions

REQUIREMENTS

Brushless motor such as the O.S. OMA-5020-490, OSMG9540 and the OMA-5025-375, OSMG9550

SPECIFICATIONS

 Cell Handling Capability: 14-36 NiCd/NiMH, 4-12 LiPo
 Function: Forward-Stop-Brake-Reverse
 Peak Load Current: 100A (150A/5 seconds)
 PWM Frequency: 32kHz
 Protective Function: Start protection/Low Voltage/ No Signal cut-off/
 Overheat protection
 Parameter Setting: ESC/ESC Programmer OCP-1 (optional extra)
 Dimensions: 2.9 x 2.2 x 1.2" (73.4 x 56 x 31mm)
 Weight: 4.4oz (124g)
