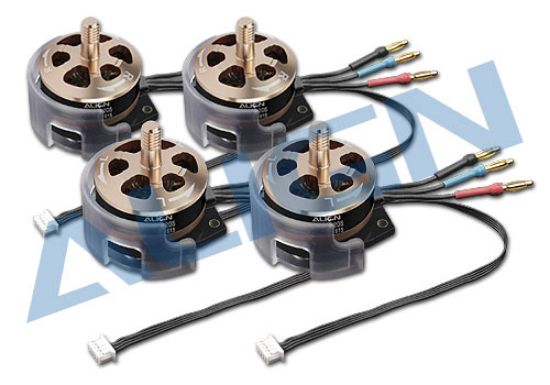

M425022XXW 2205 Motor Upgrade Set

● Suitable for MR25 / MR25P

● Must with 2205 Motor Cover (M425020XXW) and 2205 Motor LED Mounts Board (M425021XXW)

● Brand new Align BL1806-2300kv multirotor race motor, based on Align's legendary motor core technology, featuring high torque, high speed, high efficiency, low power consumption, and low temperature.

Warning:

Must use Align 5045 propellers with 2205 motor, and prohibit from using 6 inch propellers.

Specification:

● Input Voltage: 4S
● Max Continuous Current(3 min): 16.3A
● Max continuous Power(3 min): 240W
● KV Value: 2300KV
● Stator Arms: 12
● Magnet Poles: 14
● Dimension/Weight: Φ5xΦ28x25.7mm / 25.7g

● Input Voltage: 4S

Product:

Product:

MR25 Power Tip:

Align Motor Battery Propeller 5045 [MP05031] 6040 [MP06031] RCM-BL1806 [HML1806M01] [HML1806M02] 3 Cell [HBP13001] [HBP18001] V V 4 Cell   V Prohibited RCM-BL2205 [M425022XXW] [HML2205M01] [HML2205M02] 3 Cell [HBP13001] [HBP18001] V V 4 Cell   V Prohibited
