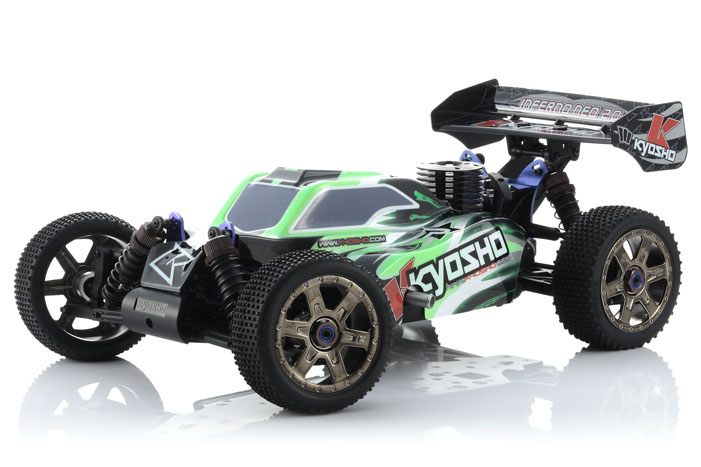

Kyosho 31684T2 Inferno NEO 2.0 1/8 GP 4WD RACING BUGGY

Required for Operation

• Glow fuel
• 8 x AA alkaline batteries for transmitter and receiver
• Starting tools (fuel bottle, plug heater)

Ultimate Ready set features newly developed KE21R engine and user-friendly 2.4GHz R/C system!
World-class Inferno DNA combines with a new generation chassis for spectacular performance!

Crowned World Champion a record 8 times, the legendary Inferno DNA runs through the core of the next evolution in the Inferno NEO Ready set. Features including the front and rear shock stays of the MP777 provide rigidity and strength with precision off set to produce excellent surface tracking, even over the rugged surfaces. Combined with big bore shocks equipped with seamless dial-adjustable tension, the effective damping force delivers sure-footed stability and easy control for beginners with the sharper response required by serious racers. In addition, universal swing shafts on the front provide extra reliability under severe racing conditions, when it’s needed most. A new aerodynamic cab forward body design realizes stable posture through the air and reinforces its competitive edge with frontal down force. With the proven KE21R engine (based on the KE25) installed, the machine thrives on the ideal balanced of power, torque and stability. Fitted with recoil starter, the 21-class engine is fast and simple to start too. The Ready set is equipped with the 2.4GHz Perfex KT-200 R/C system and KS-200 servo incorporating metal gears. Multiple setting points hold fast to deliver effective performance that can be relied upon under the pressure of hard racing. With two Color variations to choose from, the Inferno NEO 2.0 provides the best 1/8 off-road buggy experience from all angles.

Evolved chassis with narrow side guards delivers even more potent racing power. Realizes slim form.

Safe, multi-functional 2.4GHz Perfex KT-200 R/C system and KS-200 servo are pre-installed.

Resin Big Bore shocks with black anodized shock caps feature adjustable spring tension system.

New black chrome wheels feature a 6-spoke aero design.

Color printed body variations for Type 1 and Type 2. Cab forward body design produces superior aerodynamics.

Resin torque rods with optimal hardness and flexibility are equipped on the front/rear. Minimizes effect of sudden input while using suspension function to maintain running performance.

Matching wing for the new body can be securely bolted on and withstands plenty of punishment.

Mounted KE21R engine fitted with recoil starter produces enough power for competition level performance.

＜ Ready Set Contents ＞ Pre-assembled chassis with R/C linkages installed Completed body with printed Color scheme 2.4GHz Perfex KT-200 R/C system installed 1.5, 2.0, 2.5, 3.0mm L shape hex wrench Cross wrench (small) 17mm wheel wrench

Chassis Technical Data

Length	469mm
Width	307mm
Height	189mm
Wheelbase	325.5mm
Tread (F/R)	258mm / 261mm
Tire(F/R)	116×44mm /116×44mm
Gear Ratio	11.704：1
Weight	3,400g approx.
Engine	KE21R
R/C System	2.4GHz Perfex KT-200
Servo	KS-200 x 2
