JTEC Pitts Muffler for DLE 50/55 DA50

These Wrap Around Pitts Mufflers are designed generally for inverted mounted engines. Each muffler is made to replace the standard muffler using the existing mounting bolt location and exhaust pattern. The Wrap Around Pitts Style Mufflers are light weight, offer large expansion chambers to help reduce noise and are TIG welded for strength.

Excellent quality!

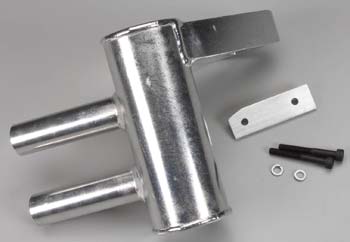

This is an optional J'Tec Wraparound Pitts Muffler for the
                     DLE 50/55cc Gasoline Engines.

FEATURES: Constructed of aluminum with polished natural finish

INCLUDES: J'Tec Wraparound Pitts Muffler with two 5x44mm socket head cap screws and two lockwashers

REQUIRES: Fastening to engine with included hardware

SPECS:

Can Diameter: 2.01" (51mm)
Outlet Tube Diameter: 0.91" (23mm)
Outlet Tube Length: 3.19" (81mm)
Distance Between Muffler Mounting Hole Centers: 1.57" (40mm)
Width of Exhaust Opening: 1.0" (25.5mm)
Height of Exhaust Opening: 0.57" (14.5mm)
