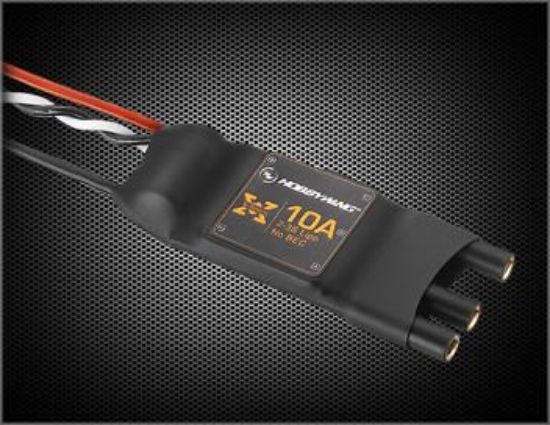

Hobbywing XRotor-10A Multirotor ESC

Specs:

• Model / SKU XRotor-10A / 30901003
• Cont./Peak Current 10A /15A
• Multicopter Applicable 250 Class Quadcopter
• Input  2-3S LiPo
• Bullet connector size  2mm
• BEC Type / BEC Output NO
• Programming item
• Timing (High/Intermediate),
• Size / Weight 36.5 x 16.4 x H4.1mm, 8.2mm at capacitor 6.5g (0.23oz)

• Special core program for multi-rotor controllers greatly improves throttle response.
• Specially optimized software for excellent compatibility with disc-type motors.
• All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
• The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
• Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
• Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
• MOSFET with extra-low resistance brings high performance and great current endurance.
