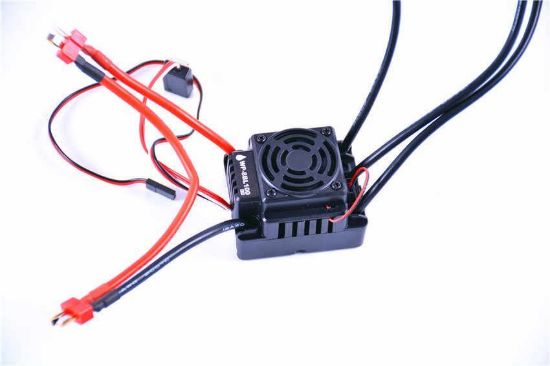

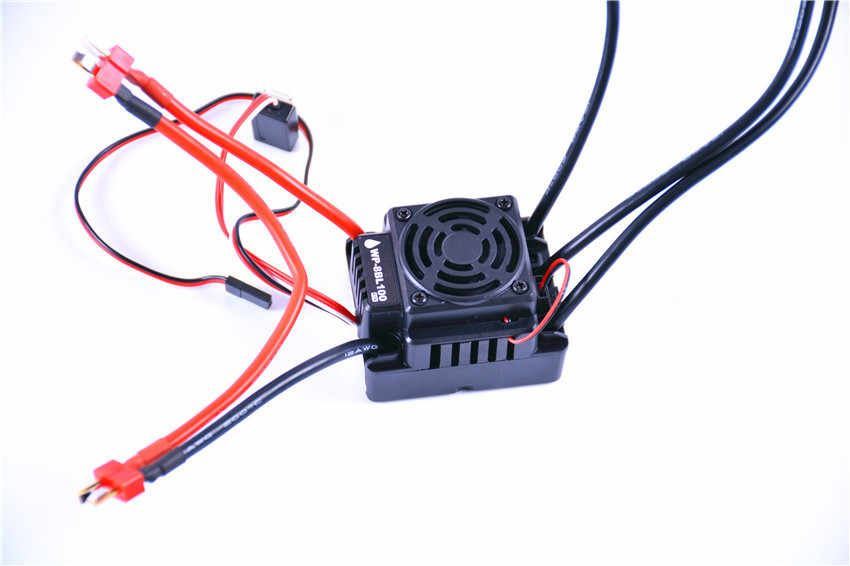

Hobbywing HH8BL100 100A V2 Waterproof Brushless ESC with Deans plug x 2 (No retail packaging)

Features:

• Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)

• External programming port, easy to connect to the Program Card，and also works as power port for cooling fan.

•Excellent start-up.acceleration and linearity features,suitable for truggy(especially short course trucks) and buggy.

• The built-in switching mode BEC has powerful output to supply all electronic equipments.

• These is a mounting stand for installing the ESC on chassis easily and firmly.

• Proportional ABS brake function with 5 steps of maxximum brake force adjustment ,8 steps of drag-brake adjustment . Also compatible with the mechanical disc-brake system.

• Multiple protection features:Low voltage cut-off protection / over-heat protection / Throttle signal loss protection / Motor blocked protection.

• Easily programmed with the SET button of the ESC ,and also compatible with Program Card.

Specifications:

Cont./Burst: 100A/650A

Resistance: 0.0005 ohm

Car Applicable: 1/8 Touring Car，Traxxas 1/10 Truggy，Buggy，SCT

Motor Limit：

3S :KV≤ 3000（4068 size motor）

4S :KV≤ 2400（4068 size motor）

Battery: 8-12 cells NiMH 3-4S Lipo

Built-in BEC: 6V/5A(Switch Mode)

Programming Port：FAN/PRG Port

Dimension/Weight: 59.5*48*42mm/173g

Programmable Items:

(Those "black backgroud and white text" options are the factory default settings)
