Hobbywing HH80060020 SkyWalker Brushless 40Amp ESC w Deans plug- No Retail Packaging. Buy 2, get 1 Free!!

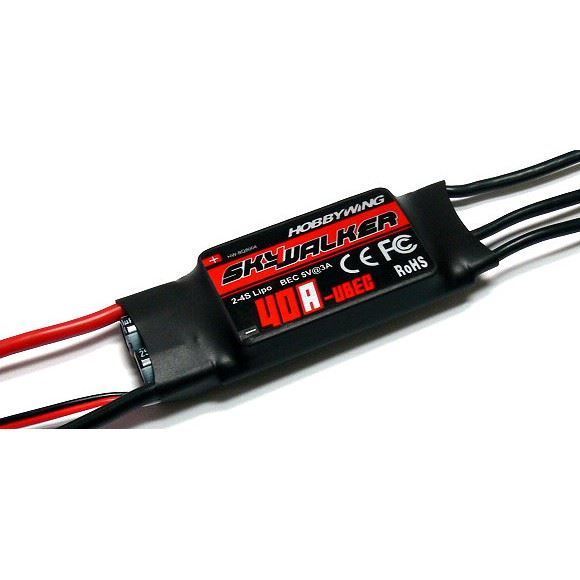

Hobbywing HH80060020 SkyWalker Brushless 40Amp ESC- No Retail Packaging
Manufacturer: Hobbywing
Availability: 64 in stock
SKU: HH80060020
Old price: $26.00
Ship to
Shipping Method
Estimated Delivery
No shipping options

No Retail Packaging- Special offer, buy two, get one free!!

Skywalker-40A (PN=80060020): Linear mode BEC, 2-3S Lipo
1 Specification

1.1 Output: Continuous 40A, Burst 55A up to 10 seconds.
1.2 Input Voltage: 2-3S Lipo, 5-9 cells NiMH.
1.3 BEC: 3A / 5V Linear mode BEC.
1.4 Refresh rate of the throttle signal: 50Hz to 432Hz.
Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
1.6 Size: 68mm*25mm*8mm.
1.7 Weight: 39g.

1.8 Deans plug

2 Features

2.1 Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
2.3 User programmable.
2.4 Multiple program methods supported: transmitter stick,
LED Program Card. Very easy to program the ESC at home or at the flying field.
2.5 Compatible with Lipo and NiMH battery.
2.6 Timing can be changed to be suitable for different brushless motors.
2.7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
