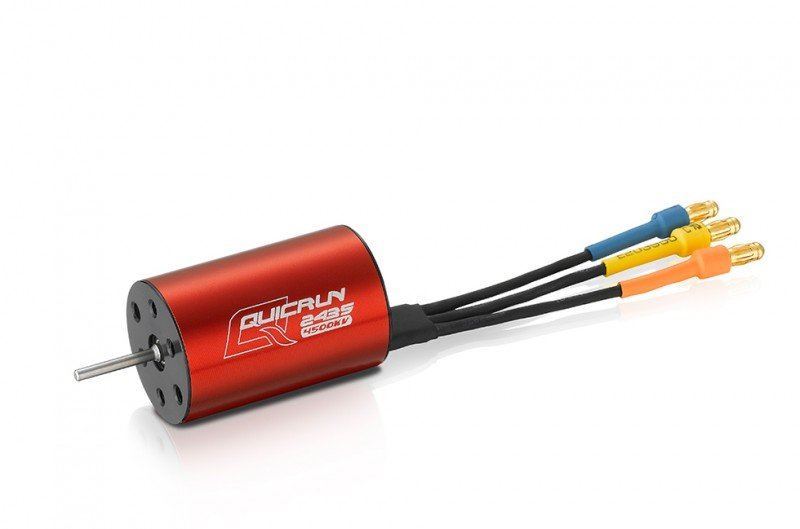

Hobbywing HH30404001 Quicrun 2435SL 4500KV G2 Sensorless Brushless Motor Red- D2.3mm Shaft

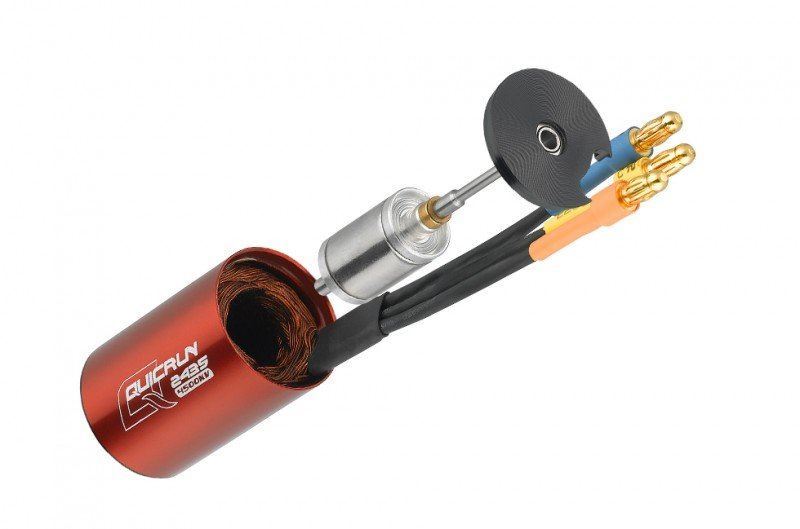

Great Construction

The use of a heat-resistant magnet attached steel case and double insulated windings,
high precision bearings, and rotor with a strong structure guarantees outstanding
performance and super durability.

Cost-effective

The QUICRUN-2435 is an inexpensive motor but applicable
to 1/16th & 1/18th scale vehicles.

High Efficiency

The output performance of this motor has an efficiency of up to 80%.
In the same load condition, QUICRUN 2435 has the higher efficiency but lower temperature
than other 2435 motors.

Dustproof Design

The dustproof design implemented at the load end of the motor makes this
QUICRUN 2435 motor applicable for monster trucks, buggies.

Plug and Play

Pre-soldered with high-quality gold connectors on motor leads,
the QUICRUN 2435 motor is a plug and play.

Product Specification

Type

• Scale : 1/16th、1/18th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Pole Count : 2

Relevant Parameters

• KV Rating : 4500
• LiPo Cells : 2-3S
• No-load Current(A) : 1.5
• Max. Power Output(W) : 150
• Current at the Point of Max. Power Output(A) : 33

Size & Weight

• O.D.(mm) : 24.0
• Length (mm) : 36.5
• Shaft Diameter (mm) : 2.3
• Weight (g) : 73
