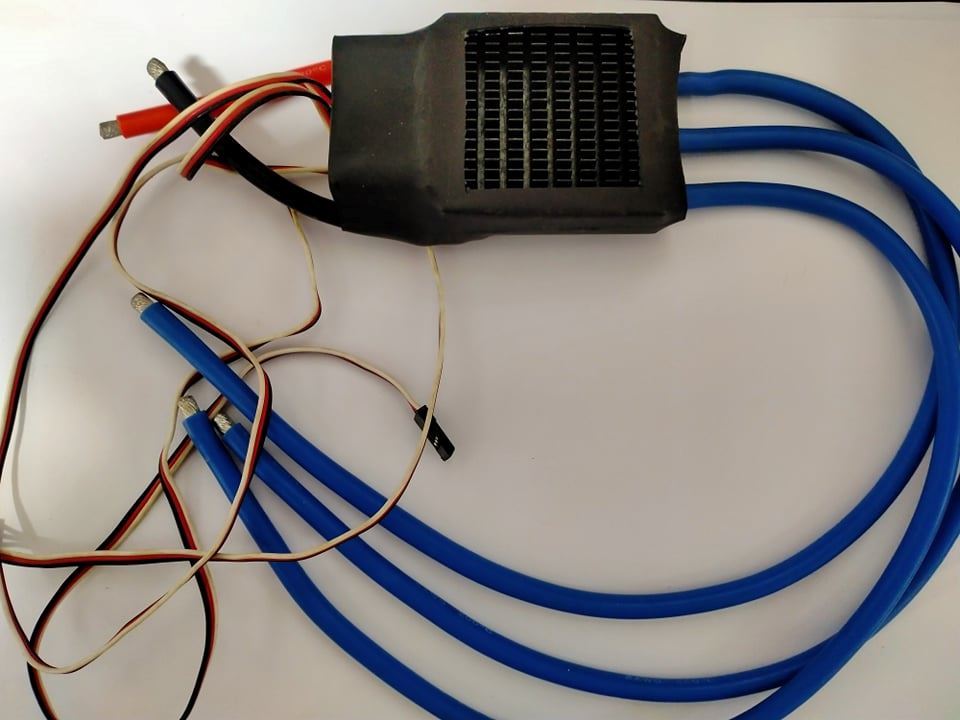

Hobbywing HH Platinum 150A Opto V1 ESC- No retail packaging

Be the first to review this product

Manufacturer: Hobbywing

Availability: 3 in stock

SKU: HHPlatinum150AOptoNRP

Old price: $379.01

Price: $119.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

**No retail packaging**

Platinum-150A-PRO ESC belongs to Hobbywing's "Platinum" series products line, it is the most significant top-class product for aircraft and helicopter.

1 Typical Applications

1.1 Very powerful for 600 class helicopter (Working with 6 cells Lipo battery)
1.2 Very powerful for 700 class helicopter (Working with 6 cells Lipo battery)

1.3 Very powerful for huge scale aircraft such as F3A (Working with 6 cells lipo battery)

2 Specification

2.1 Output: Continuous 150A, burst 220A up to 10 seconds.

2.2 Input Voltage: 2-6 cells lithium battery or 15-18 cells NIMH battery.

2.3 BEC: None.

2.4 Control Signal Transmission: Optically coupled system.

2.5 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.

(BLM: BrushLess Motor)

2.6 Size: 88mm (L) * 55mm (W) * 16mm (H).

2.7 Weight: 125g.

3 Features

3.1 High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.

3.2 Wide-open heat-sink design to get the best heat dissipation effect.

3.3 With 3 types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.

3.4 Smooth, linear, quick and precise throttle response.

3.5 The throttle signal is transfered through optically coupled system to avoid the electromagnetic interference.

3.6 Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.

3.7 Perfect governor mode for helicopter.

3.8 The firmware of the ESC can be updated through the USB adapter on the Professional LCD Program Box.

3.9 User programmable. Several kinds of program methods are supported: transmitter, digital LED program card, advanced professional LCD program box, PC software. Very easy to program the ESC at home or at the flying field.
