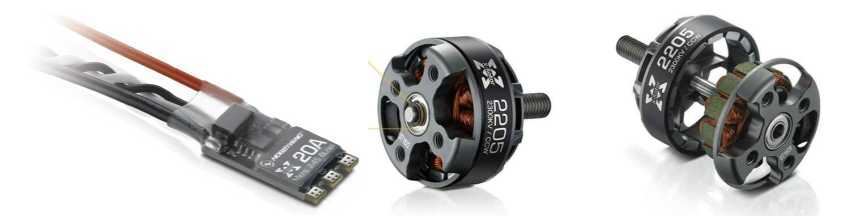

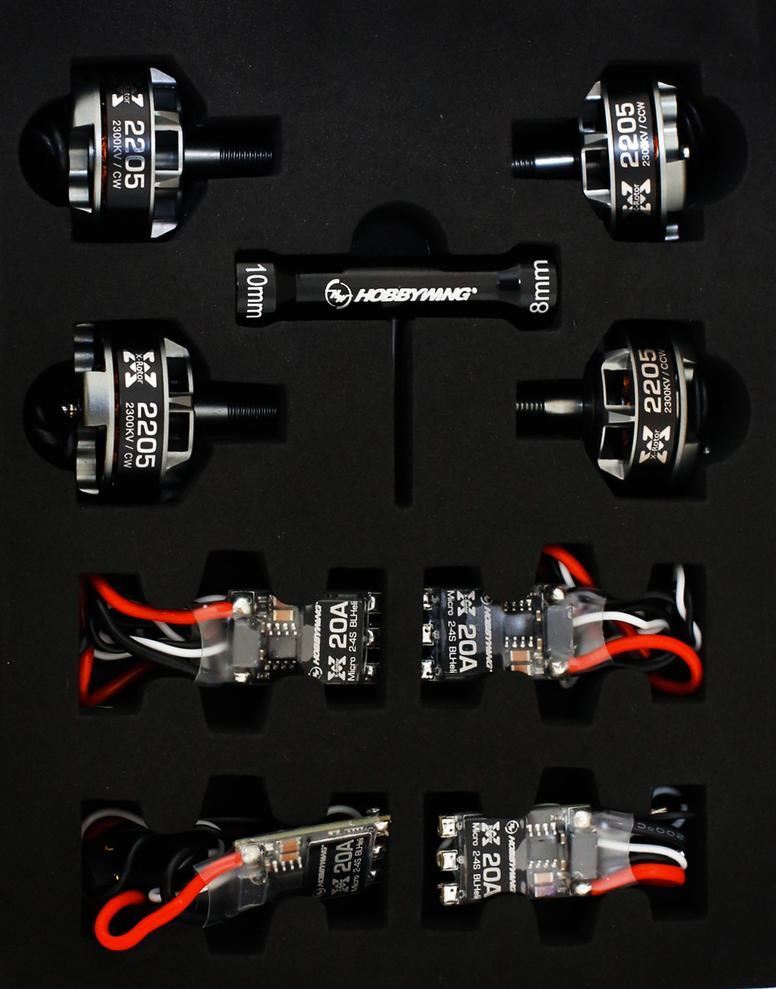

Hobbywing FPV PWR System-A XR-20A Micro ESC/ 2205-2300KV Motor

Motor's

Specifications:

Xrotor 2205 2300KV

Relevant Parameters:

KV Rating: 2300

LiPo Cells: 4S

No-Load Current(A/10V): 1.6A

Motor Resistance: 0.068Ω

Max Continuous Current @ Power: 25A@420W

Size & Weight:

Stator Diameter/Thickness: 22mm/5mm

Slot/Plot Count: 12/14

Motor/Shaft Diameter: 28.1mm/5mm

Motor Length (w/o, w/ Shaft): 17.1mm/31.1mm

Weight: 28.4g

Recommended Props/ESCs

5045 Two-bladed/Three-bladed Propeller(s)

30A/3-4S ESC(s)

ESC'S

XRotor Micro BLHeli 20A 2-4S

Super Small & Light architecture

• F396 48MHz MCU
• Premium MOSFETs (Toshiba MOSFETs for 20A &35A ESCs, Fairchild MOSFETs for 30A ESCs)
• Ceramic capacitors
• 3-in-1 drive ICs, 3-ounce copper
• Ultra high efficiency & rapid response - 4 layers of PCBs and other quality components guarantees less heat.
• BLHeli Firmware Ready - Users can flash or upgrade the BLHeli firmware via the signal cable (on ESCs), and program 4 ESCs simultaneously after connecting their flight controller to the BLHeli Suite software if the flight controller uses the Clean Flight firmware
• Damped Light Mode & OneShot125 Mode Supported
Damped light mode improves the motor retardation and allows
users to brake the FPV drones more efficiently. Active-freewheeling
technology improves driving efficiency, flight time and heat
dissipation.
•  Support OneShot125 high speed throttle
signal and regular throttle signal (within 500Hz) modes.

Specs:

Application: FPVs with 150-330mm Diagonal Wheelbase

LiPo Power input: 2S-4S

Cont.Current: 20A

Burst Current: 30A

BEC Output: N/A

Input wires: 20AWG-100mm* (Red/Black)

Output Wire: Solder tabs (no wires)

Connectors (In/Out): no (raw wires)

Weight / Size: 7g/24.0x13.9x5.5mm
