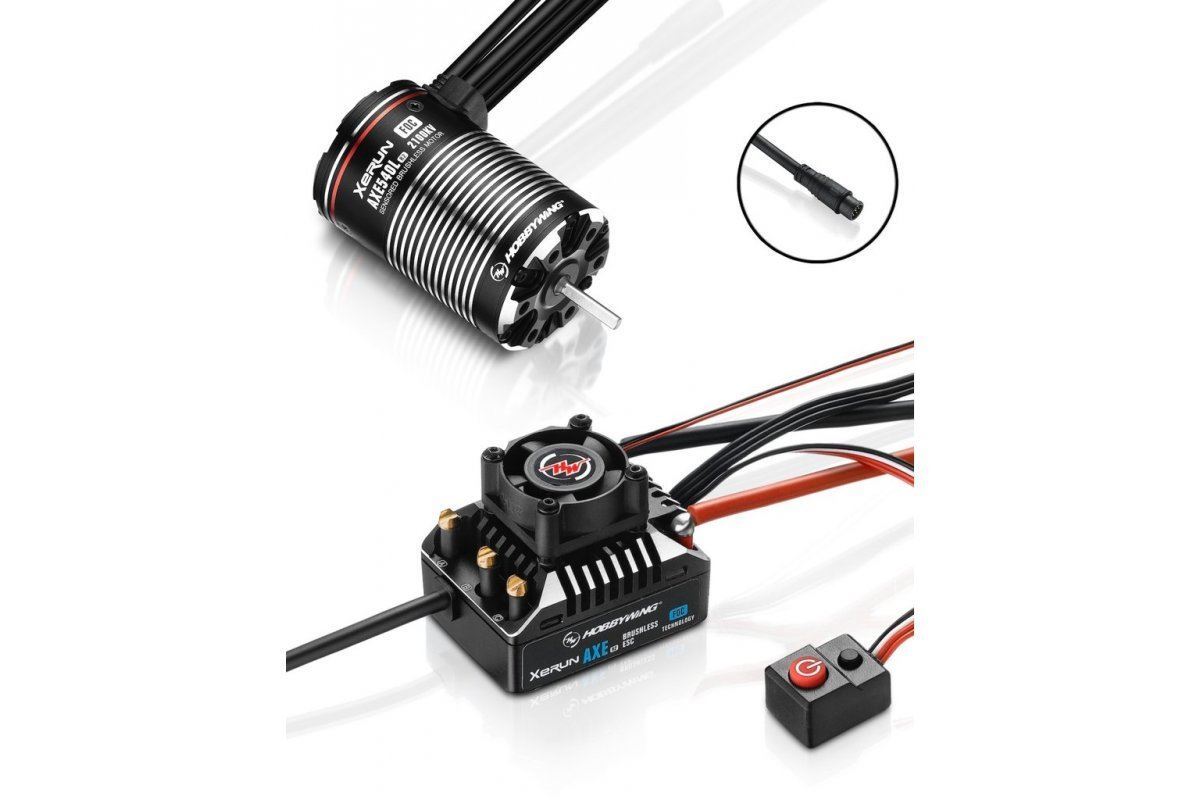

Hobbywing 38020313 XeRun AXE540L R2 2800Kv FOC Sensored Brushless 80A Motor & ESC Crawler Combo

Manufacturer: Hobbywing
Availability: 2 in stock
SKU: 38020313
$369.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Overview

Field Oriented Control Technology reads the magnetic field of the motor and allows extremely precise operation. The closed-loop AXE system maintains the RPM to the motor under load conditions. Matching RPM to throttle position allows extremely consistent control.


FOC (Field-Orientated Control) for Super Linearity & High Torque & Extreme Silence

New sensor technology has changed the feel, performance, and overall tune-ability of the new Axe ESC and Motor in ways some have never experienced. Field-oriented Control (FOC) is the name of this new tech, and is something all new to the scale trail, rock racing, and rc world in-general. This new style of sensor allows extremely accurate control and sensing of the motor while maintaining extreme performance and reliability. The motor and ESC are able to match the RPM of the motor to your throttle position under all driving conditions. This greatly improves down hill driving giving this system the ability to drive down hill under complete control. FOC technology also makes the whole system extremely silent, the motor doesn't create the annoying PWM noise when it is running.


Features
  • Field-Oriented Control for Super Linearity & High Torque & Extreme Silence
  • Chip-type magnetic encoder guarantees consistency between three phases’ signals and outputs the precise rotor position
  • Polarity Protection to solve the problem of using incorrect wires
  • Waterproof and dust-proof design (*IP67 standards)
  • Intelligent torque output & speed closed-loop control for easy control and consistent motor RPM
  • The adjustable drag brake & drag brake rate control (maximum 200%)
  • Unprecedented parking capacity on slopes, with no jerky stops
  • Read and update ESC firmware via smartphone
  • Incorporates Staggered Pole Technology for zero cogging effect & torque ripping.
  • Sensor harness provides firm connection between motor & ESC and waterproofs sensor ports
  • Advanced Electronic Switch features a waterproof, dust-proof & shock-resistant design
  • Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent

Specifications
ESC
  • Brushless: Yes
  • Cont/Peak Current: 80A/480A
  • Motor Compatibility: Xerun AXE R2 Series
  • Applications: 1/10th Rock Crawler
  • BEC Output: 6V/7.4V Switchable, Continuous Current of 6A
  • Connectors: Input/Output Ends: No Connectors
  • Size/Weight: 47.4(L)x36.2(W)x26.5(H)mm/ 108g (Included input wires)
  • ESC Programming: iOS or Android smart phone (installed with the HW link app)
Motor
  • Brushless: Yes
  • KV: 2800KV
  • LiPos: 2-3S
  • Resistance: 12.7
  • No-load Current: 3.6A
  • Motor Diameter Length: 36/57.8mm (1.42/2.28")
  • Shaft Diameter Length: 3.175/60mm (0.125/0.63")
  • Poles: 4
  • Weight: 234g

Included items
DescriptionQTY
AXE R2 FOC Sensored Brushless ESC1
AXE 540L R2-2800KV FOC Sensored Brushless Motor1

Note
  • Xerun AXE series is a closed system: AXE ESC's work exclusively with Xerun AXE brushless motors

Specifications
ESC (Electronic Speed Controller)
For Motor Type:Brushless
Max Voltage:11.1
Continuous Amps:80
Battery Connector:Bare Wire
LiPo Cut-off:Yes
Programmable:Yes
Waterproof Design:Yes
Cooling Method:Air
BEC Voltage:6v,7.2v
Dual Motor:No
Motor
Motor Type:Brushless
Can Length (mm):57.8
Can Diameter (mm):36
KV (RPM/V):2800
Shaft Diameter (mm):3.175 (1/8")
