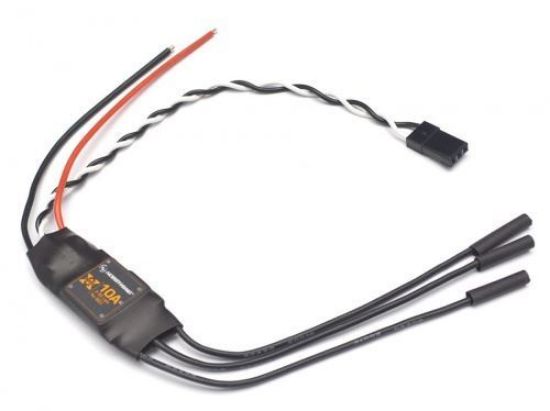

Hobbywing 30901009 XRotor 10A Brushless ESC- Wire Leaded

Rapid Throttle Response

Dedicated program for multi-rotor ESCs, which is better than various
open-source programs, greatly improves throttle response.

Easy to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making usage simple, highly intelligent and adaptive.

Less Signal Interference

The twisted-pair throttle signal cable effectively reduces interference produced
in signal transmission and makes flight more stable and reliable.

Super Low Internal Resistance

Good quality MOSFETs utilized by this XRotor 10A ESC make
internal resistance low but current endurance high.

Super High Throttle Signal

Compatible with various flight-control systems and supports a
throttle signal frequency of up to 621Hz.

Specifications

• Cont./Peak Current : 10A/15A
• LiPo Cells : 2-3S LiPo
• BEC Output : No

Wires & Connectors

• Output Wires : Black-20AWG-100mm*3
• Input Connectors : No
• Output Connectors : 2.0mm Gold Connectors (Female)
• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Not Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

Size & Weight

• Size : 32.0x16.7x8.2mm
• Weight : 9g

Applications

• 250 Class Multirotors
