Hobbywing 30416202 Platinum 5230SL Brushless Outrunner Motor (380KV)

Motor Overview:

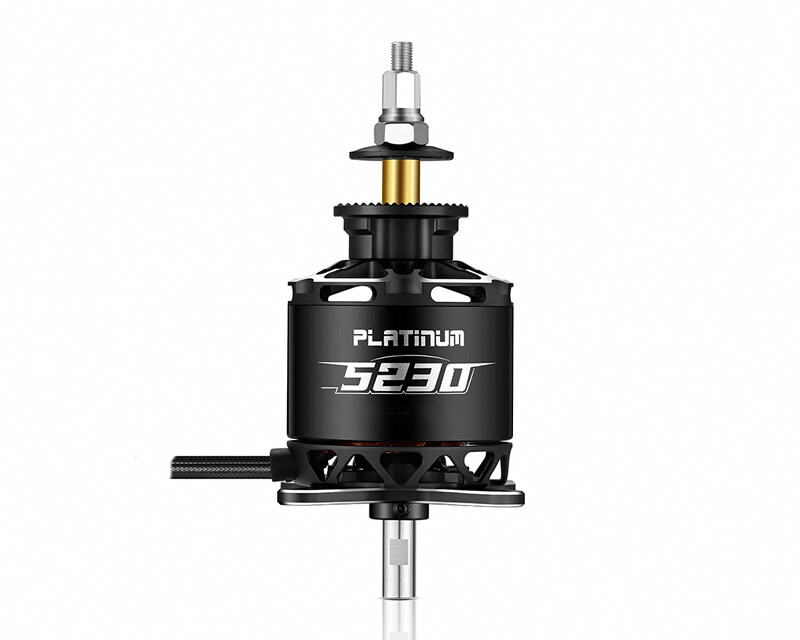

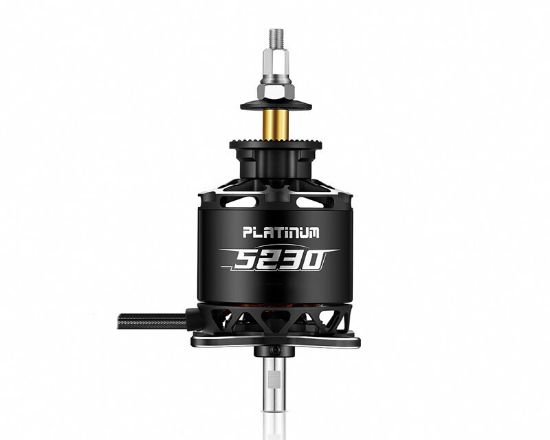

This is the Platinum 5230SL Brushless Outrunner Motor from Hobbywing. Designed with Dual Dynamic Balance Technology, this motor delivers unmatched efficiency and smooth operation. It also features superior heat dissipation for extended performance and a patented propeller locking system for enhanced flight safety.

Features:

• Dual Dynamic Balance Technology for smooth operation
• Boosts efficiency by over two percent compared to competing motors
• Superior heat dissipation for extended runtime
• Patented propeller locking system for added flight safety
• Diamond-shaped anti-slip propeller mount for enhanced reliability

Specifications:

• Suggested Application: Aircraft/Drone
• Size: Platinum 5230SL
• Type: Brushless Outrunner
• Voltage: 6-8S LiPo
• Adjustable Timing: No
• Watts: 5423
• Connector: Bullet
• Dimensions: 2.37x3.68in (60.2x93.5mm)
• Shaft Diameter: 8mm
• Weight: 20.42oz (579g)(with wire)
• Recommended Propellor: 6S：19x10E，20x10E，22x10E
  8S：17x10E，18x10E，18x12E
• Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5

Includes:

• (1) Platinum 5230SL Brushless Outrunner Motor

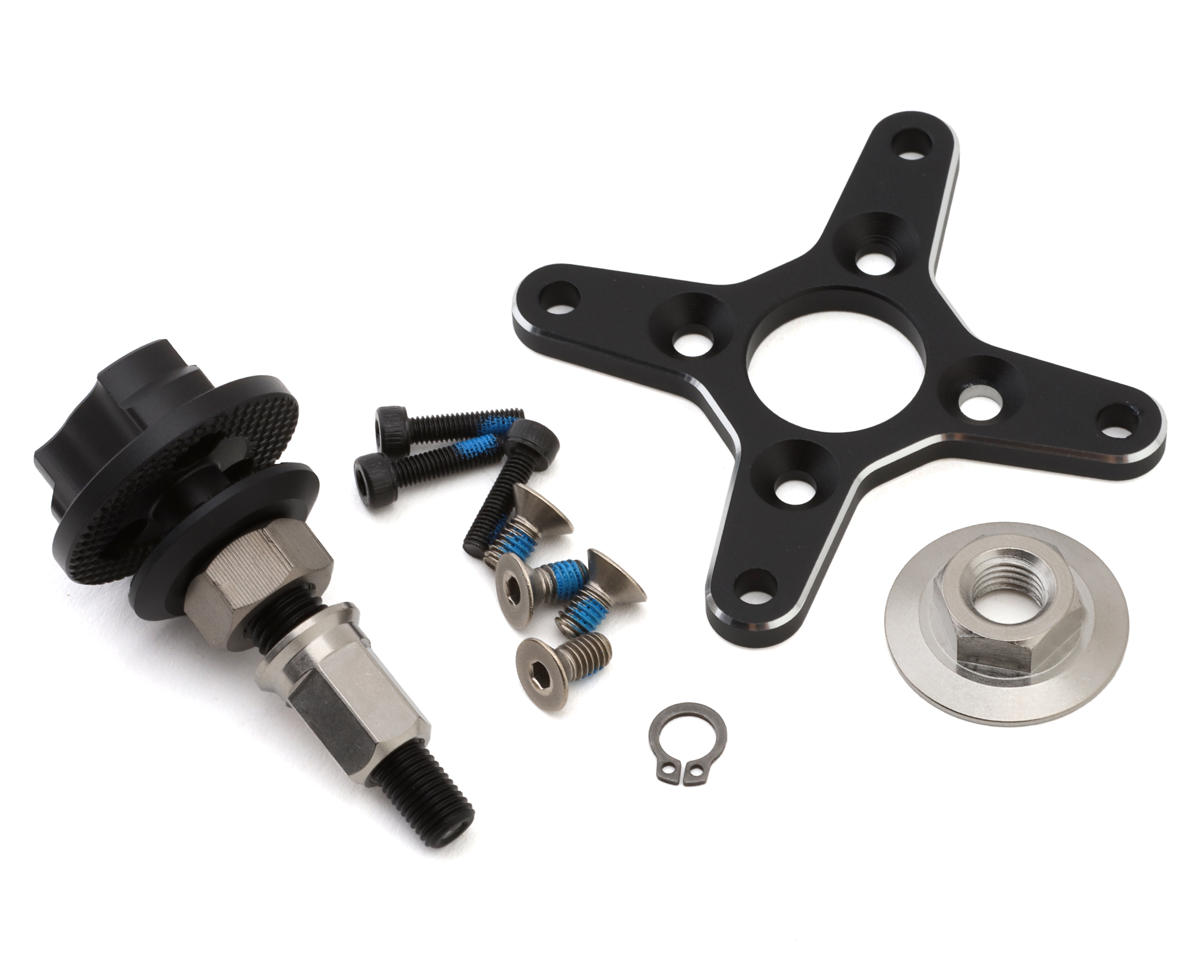

• Motor Hardware and Accessories
