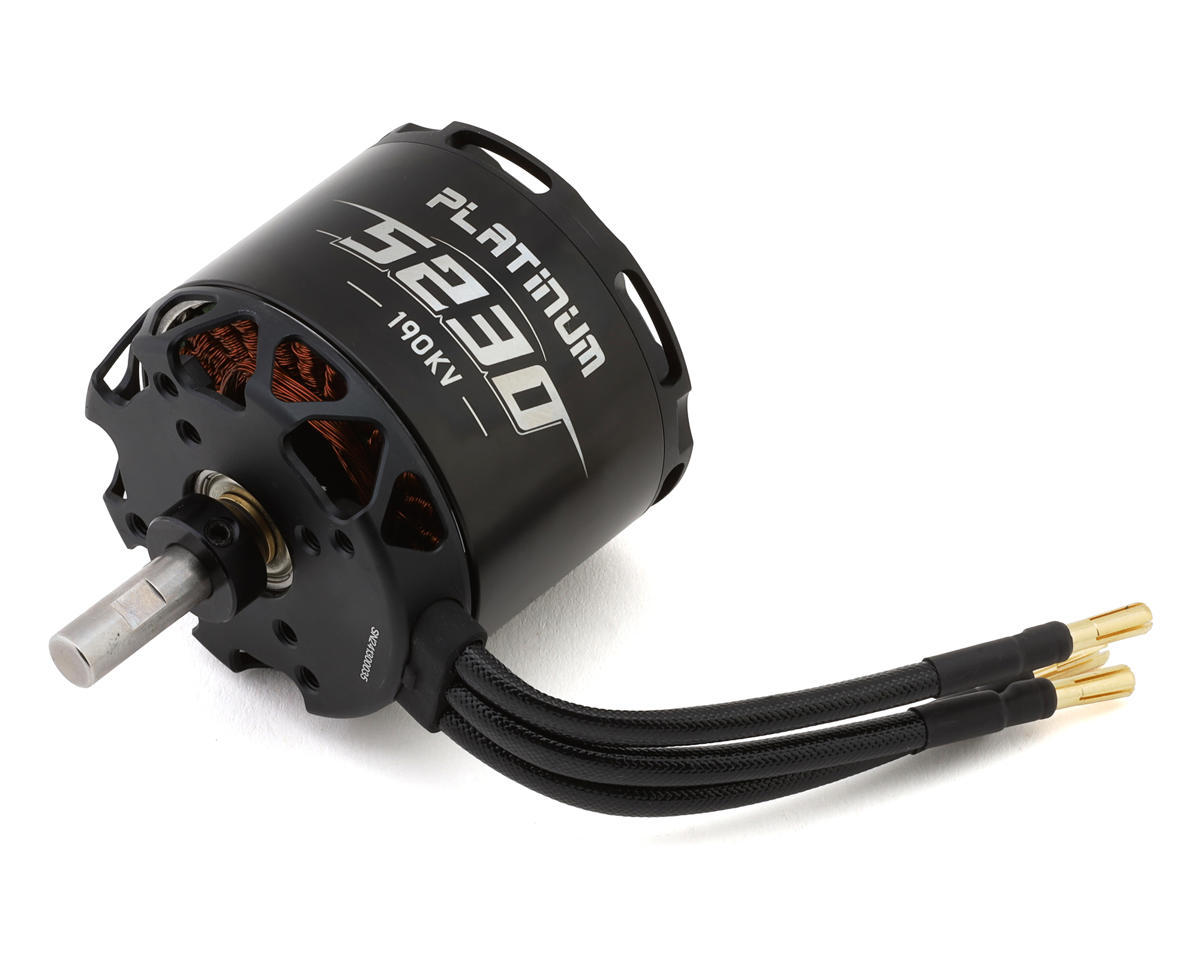

Hobbywing 30416200 5230SL Brushless Outrunner Motor (190KV)

• Motor Overview:

  This is the Platinum 5220SL Brushless Outrunner Motor from Hobbywing. Designed with Dual Dynamic Balance Technology, this motor delivers unmatched efficiency and smooth operation. It also features superior heat dissipation for extended performance and a patented propeller locking system for enhanced flight safety.


  Features:

  • Dual Dynamic Balance Technology for smooth operation
  • Boosts efficiency by over two percent compared to competing motors
  • Superior heat dissipation for extended runtime
  • Patented propeller locking system for added flight safety
  • Diamond-shaped anti-slip propeller mount for enhanced reliability

  Specifications:

  • Suggested Application: Aircraft/Drone
  • Size: Platinum 5220SL
  • Type: Brushless Outrunner
  • Voltage: 6S (22.2V)
  • Adjustable Timing: No
  • Watts: 4028
  • Connector: Bullet
  • Dimensions: 2.37x3.29in (60.2x83.5mm)
  • Shaft Diameter: 8mm
  • Weight: 15.34oz (435g)(with wire)
• Recommended Propellor: 10S：20x10E，22x10E，22x12E
  12S：20x8E，20x10E，22x10E
• Recommended ESC: PLATINUM 130A V4, PLATINUM 180A V5

Includes:

• (1) Platinum 5230SL Brushless Outrunner Motor

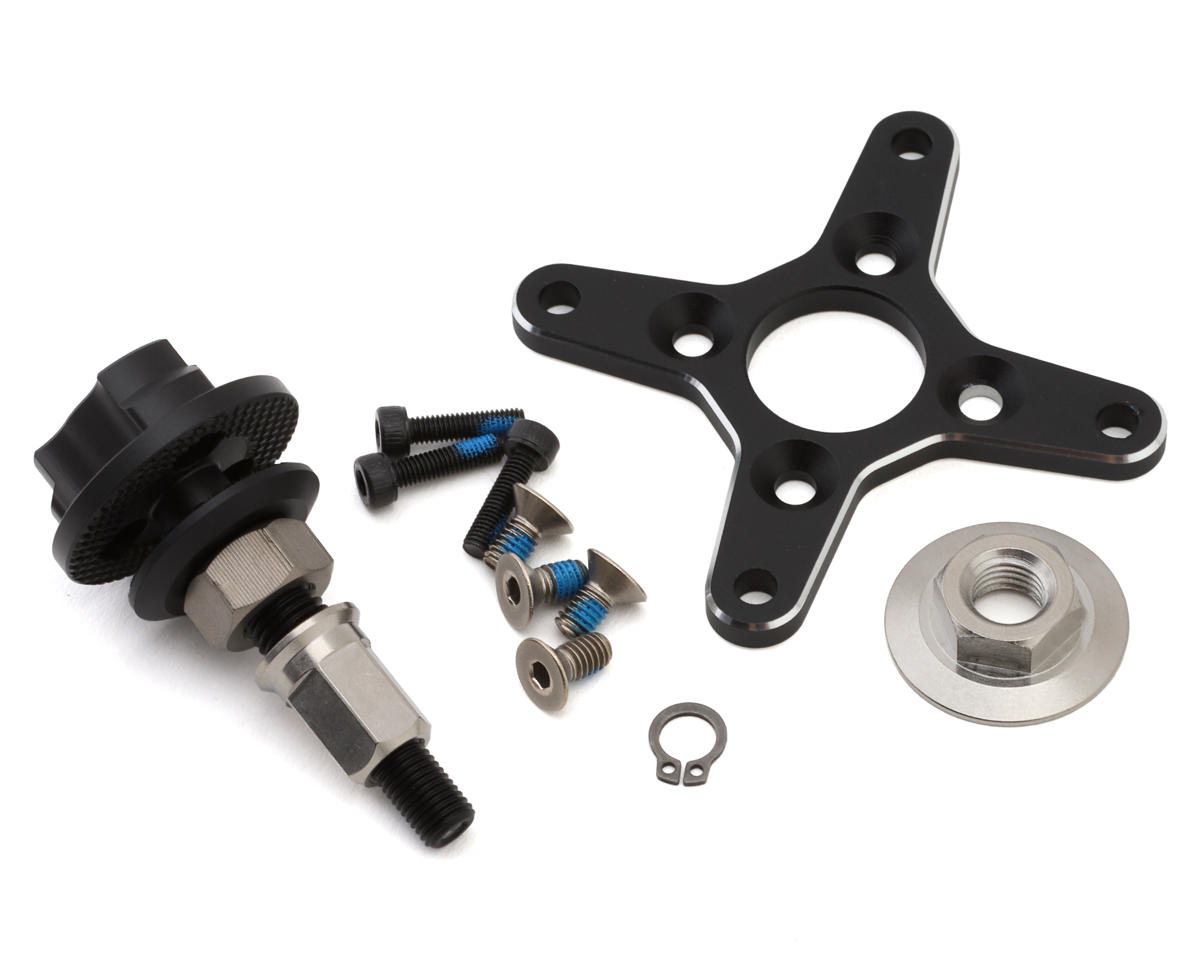

• Motor Hardware and Accessories
