Sorry - this product is no longer available

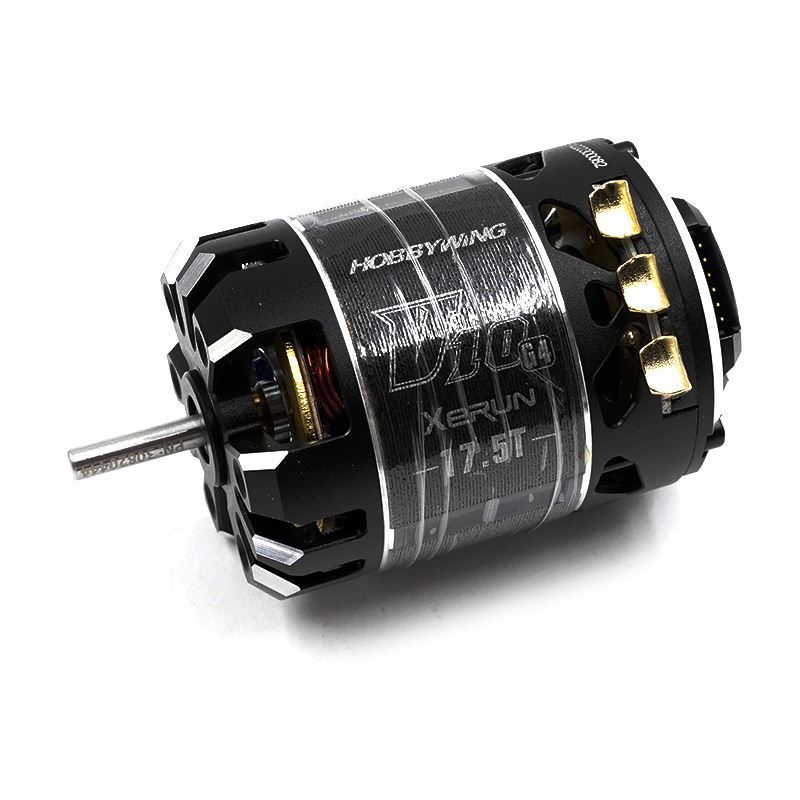

Hobbywing 30401141 XERUN V10 G4 17.5T 3020kV Competition Stock Sensored Brushless Motor

For 1/10 Stock Class Racing
Manufacturer: Hobbywing
Availability: Out of stock
SKU: 30401141
$179.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Description:

This is Hobbywing XERUN V10 G4 17.5T 3020kV Competition Stock Sensored Brushless Motor For 1/10 Stock Class Racing. Built for the ultra-competitive Stock racing category around the world, the XeRun V10 G4 motor has all the winning formula you need to win a race. The V10 G4 motor has been tested and developed intensively by our factory drivers such as Spencer Rivkin, Jan Ratheisky and Max Machler to give the ultimate performance.

Feature:

  • For: 1/10 Stock Class Racing

  • Material: Aluminum

  • Color: Black

  • This new generation has been greatly optimised with the stator being redesigned for higher efficiency and is equipped with ultra high grade custom magnetic ring rotor for maximum torque and increasing the output power by 5%.

  • The motor is equipped with a high-precision endbell plate that uses high quality structural components to greatly improve the consistency and structural stability of the power output at all times.

  • The motor adopts a full exposed stator core and is directly exposed to the air for excellent heat dissipation.

  • The internal resistance has also been reduced by about 4% resulting in a more efficient and cooler temperature of the motor.

  • The V10 G4 adopts a modular structural design which is convenient for maintenance which prolongs the service life of the motor.

  • Optional Rotor is available

  • The outlet terminals adopt custom-widened U-shaped gold-plated curved copper strips with extremely low internal resistance, and increase the gap between the copper strips, which makes it easy to weld.

  • Large open hole structure at the rear of the motor provides excellent heat dissipation effect for endplate components.

  • The use of high-performance and high-quality stator, high temperature resistant wire(200°C), high temperature resistant explosion-proof rotor(180°C), international grade bearings.

Specification:

  • KV Rating: 3020KV

  • LiPo Cells: 2-3S

  • No-load Current(A): 3.7A

  • O.D.(mm): 35.8

  • Length (mm): 51.4

  • Shaft Diameter (mm): 3.175

  • Weight (g): 149g

  • Front Bearing: D9*D4*t4

  • Rear Bearing: D8*D3*t4

  • Timing: 30-60 Degrees(Adjustable)

Include:

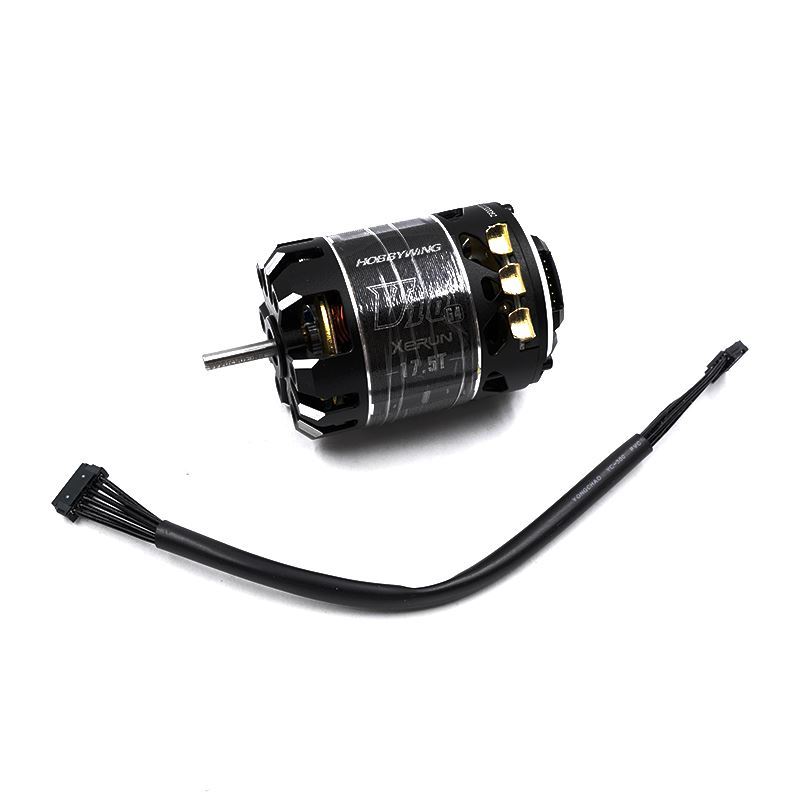

  • Hobbywing XERUN V10 G4 17.5T 3020kV Competition Stock Sensored Brushless Motor (1 pc)

  • Sensor Cable (1 pc)
