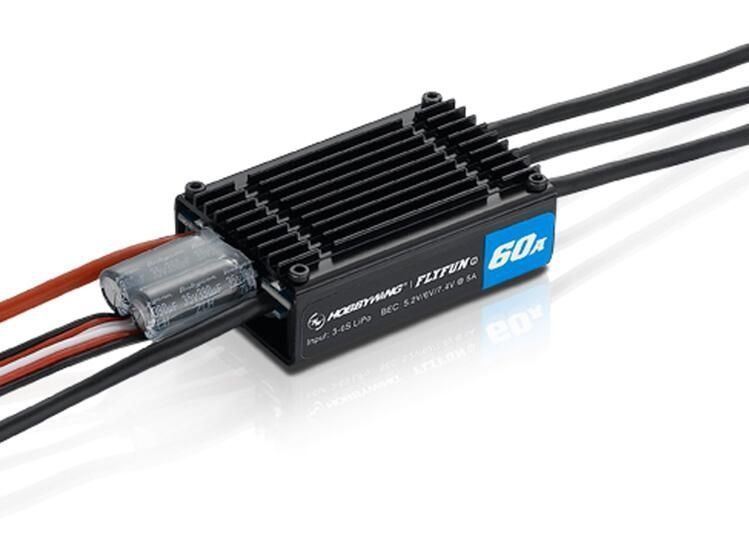

Hobbywing 30214101 Flyfun 60A V5

Hobbywing 30214101 Flyfun 60A V5
Manufacturer: Hobbywing
Availability: 2 in stock
SKU: 30214101
$95.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
  •
  •
     120A V580A V560A V540A V5
    p/n30201400302142013021410130214002
    Cont./Peak Current120A/150A80A/100A60A/80A40A/60A
    Input3-8S LiPo3-8S LiPo3-6S LiPo3-6S LiPo
    BEC Switch Mode:
    5.2V/6V/7.4V, 8A/20A
    Switch Mode: 5.2V/6V/7.4V, 8A/20ASwitch Mode: 5.2V/6V/7.4V, 8A/20ASwitch Mode: 5.2V/6V/7.4V, 8A/20A
    Input /output wire12AWG-150mm12AWG-150mm14AWG-150mm14AWG-100mm/
    16AWB -75mm
    Input connectorNONONONO
    Output
    connector
    4.0mm Gold Connectors (Female)4.0mm Gold Connectors (Female)4.0mm Gold Connectors (Female)3.5mm Gold Connectors (Female)
    Size (mm)77.2x34.6x19.269.8x34.6x19.268.8x34.6x1847x28x14
    weight (g)939273.544
    Reverse Brake ModeSupportedSupportedSupportedSupported
  •
  •
  • ESC programmable through Transmitter and LED program card (purchase separately)
  • DEO Technology / Active Freewheeling
    The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:
    • Rapider and smoother throttle response, better stability and flexibility during flight.
    • Higher driving efficiency, longer flight time.
    • Lower ESC temperature, more reliable operation.
  • Soft Start-ups & Reverse Brake
  • High-power BEC: High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V & 7.4V allows users to have more electronic devices or devices with higher power like servo, flight controller, and on-board light on their aircraft.
  • Multiple Protections: Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.
