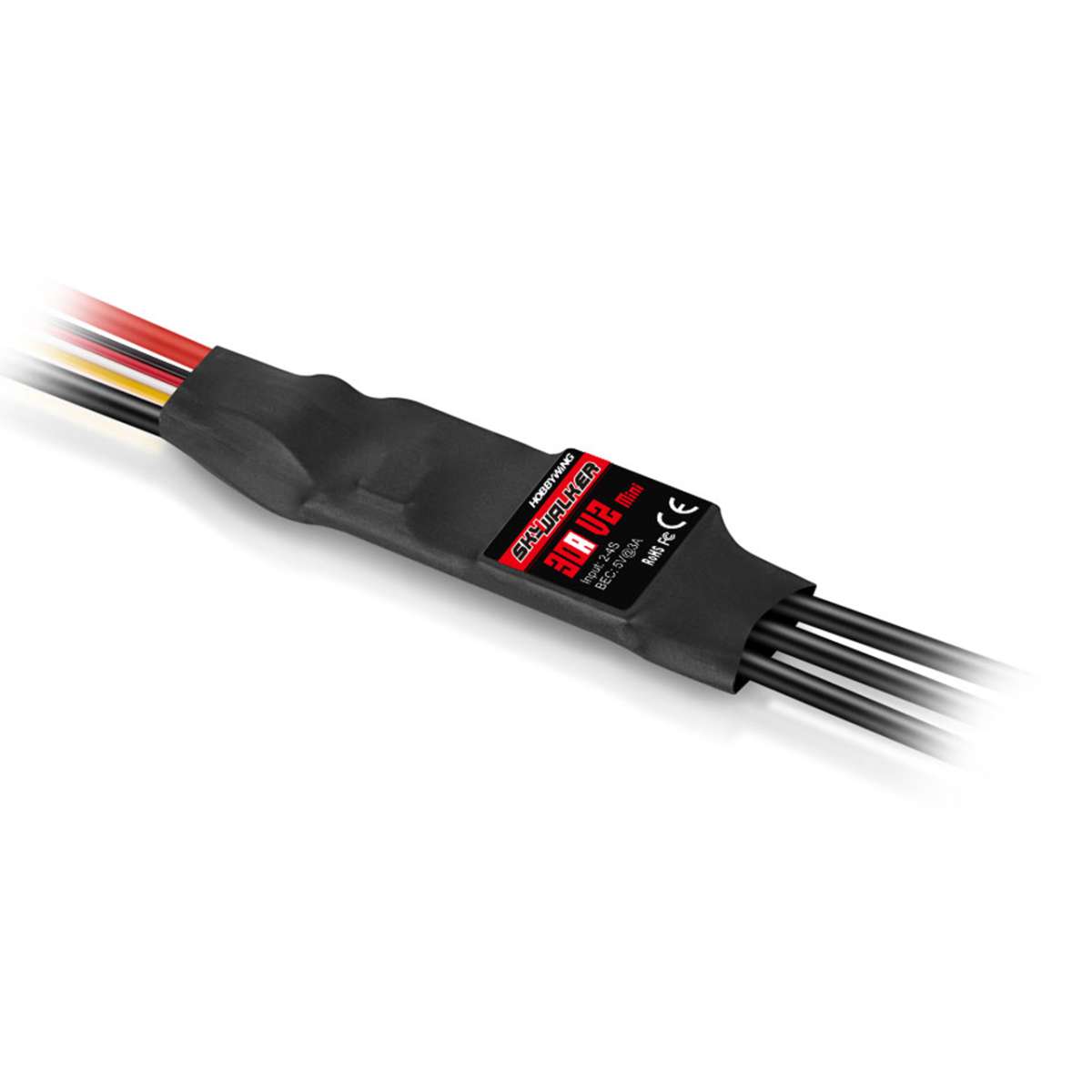

The SkyWalker V2 Mini family is expanding with the SkyWalker V2 Mini 30A, an extremely compact ESC designed for light to medium-sized RC aircraft. The high-efficiency 32-bit ARM-M0 microcontroller (up to 96 MHz) combined with DEO Technology / Active Freewheeling ensures smooth throttle response, cooler operating temperatures, and longer flight times. On board are Reverse Brake and Linear Reverse Brake modes, Normal Brake/Brake-Off, a Find Mode, as well as extensive protection features. Programming is simple via transmitter or the LED Program Box.
Technical Data:
| Continuous / Peak Current: | 30A / 50A |
| Input Voltage: | 2–4S LiPo |
| BEC: | 5V / 3A (Switch-Mode) |
| Programming: | Via transmitter or LED Program Box |
| Functions: | DEO/Active Freewheeling, Reverse Brake & Linear Reverse Brake, Normal Brake/Brake-Off, Find Mode |
| Protection Features: | LVC, ESC/Capacitor Thermal Protection, Overcurrent/Overload, Throttle/Signal Loss Protection (Failsafe) |
| Dimensions: | 44 × 18 × 10 mm |
| Weight: | 23g |
