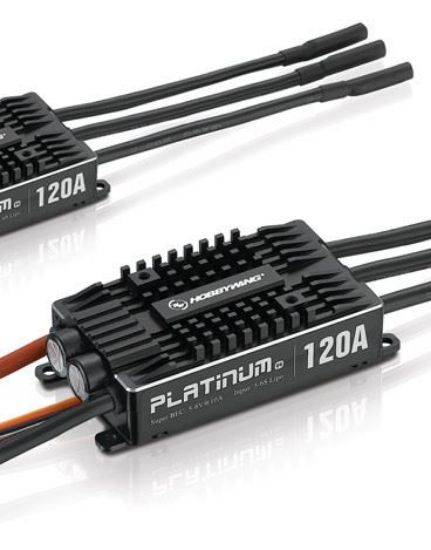

Hobbywing 30203401 Platinum PRO ESC V4 -120A (3S-6S)

Hobbywing 30203401 Platinum PRO V4 -120A (3S-6S)
Manufacturer: Hobbywing
Availability: Out of stock
SKU: 30203401
$235.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
ModelPlatinum 120A V4 ESC
SKU30203401
Application500- 550 Class Helicopter
Input Voltage3-6S Lipo
Cont./Peak Current (10s)120A/150A
(Switch-mode) BEC5V-8V Adjustable (Step: 0.1V), 10A/25A Cont./Peak
Separate Programming PortFor connecting LCD Program Box/WIFI Express
Throttle Signal/BEC Output/RPM Signal Transmission Wire(s)White Throttle Signal Wire/Red & Black and Red&Brown BEC Output Wires/Yellow RPM Signal Transmission Wire
Input WiresRed-12AWG-150mm*1/Black-12AWG-150mm*
Output WiresBlack-12AWG-100mm*3
Output connector4.0mm Gold Connectors (Female)
Size84.3x38.2x20.4mm
Weight107g / 3.77oz
Download

Brochure of Platinum80A-120Aen.pdf
