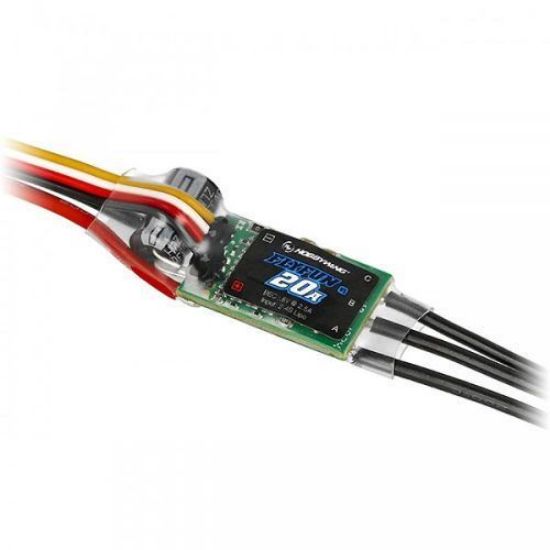

Hobbywing 30202308 FlyFun 20A V5 2-4S ESC

HOBBYWING FLYFUN 20A V5 SPEED CONTROL (30202308)

The new FlyFun V5 series has been designed from scratch.

Externally recognizable is the minimalist structure, which significantly reduces the weight compared to the ESCs with solid aluminum heatsink.

Inside, the pilots are still offered the fullest functionality thanks to high-quality built-in electronic components.

FEATURES

• DEO Driving Efficiency Optimization Technology
• Soft and prompt response of the controller function
• Higher efficiency, longer flight time
• Lower operating temperature and reliable operation
• 4 different braking modes including thrust reverser
• Braking effect with 8 adjustments
• Soft start adjustable (normal / soft / very soft)
• LiPo undervoltage protection adjustable (off / 2.8V - 3.8V)
• Timing adjustable (0° - 30°)
• And a lot more to do

SPECIFICATIONS

• Cont./Peak Current: 20A / 30A
• Cells: 2s - 4s
• BEC Voltage: 5.2V
• BEC Output: 2,5A / 4A
• Cable/Cable length: 16AWG / 100mm
• Plug Battery/Motor: ohne / 3.5mm Plug
• Dimensions: 25x15x5mm
• Weight: 13g
• Optional: 30501003 Program Box LED Universal
