Advanced Modified Racing Electronic Speedo

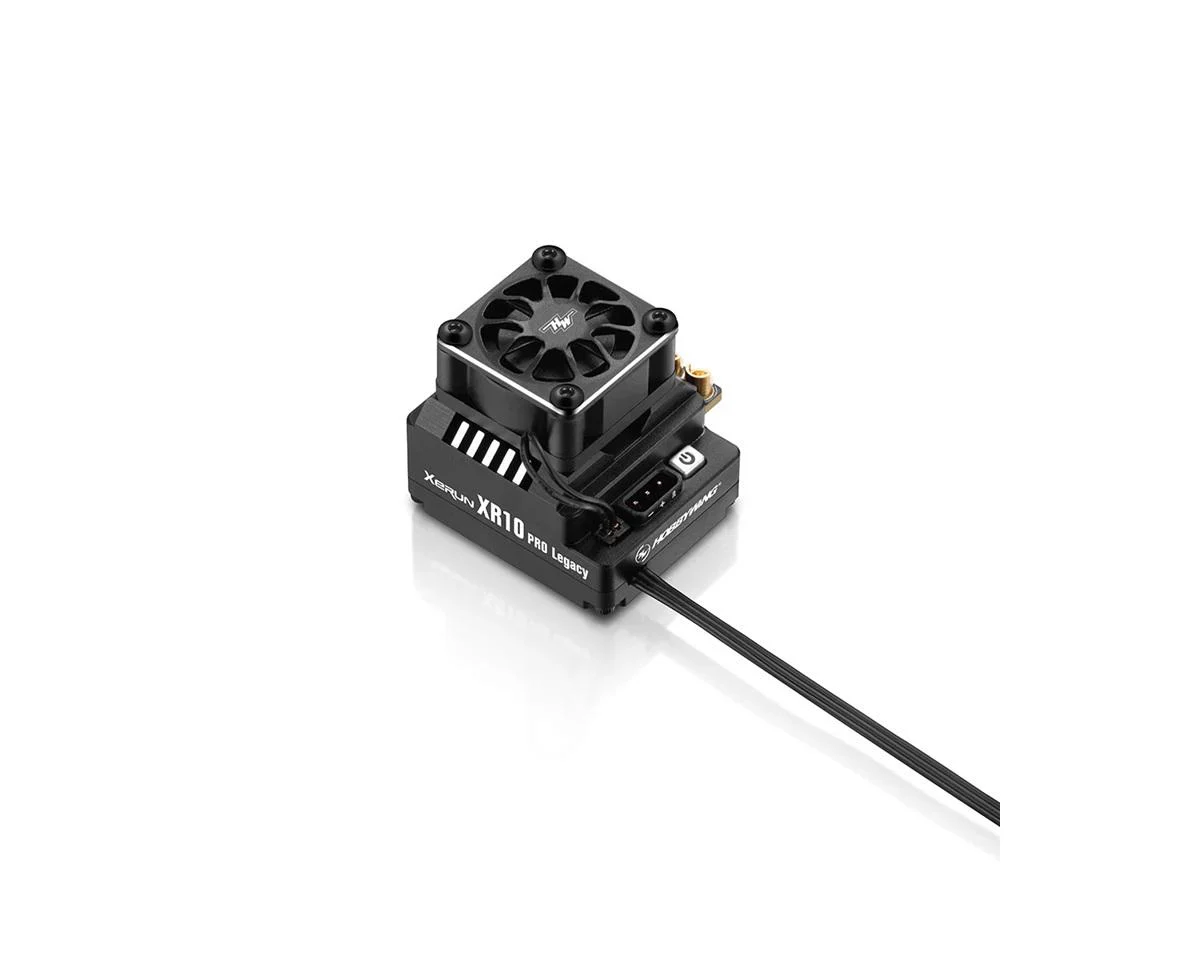

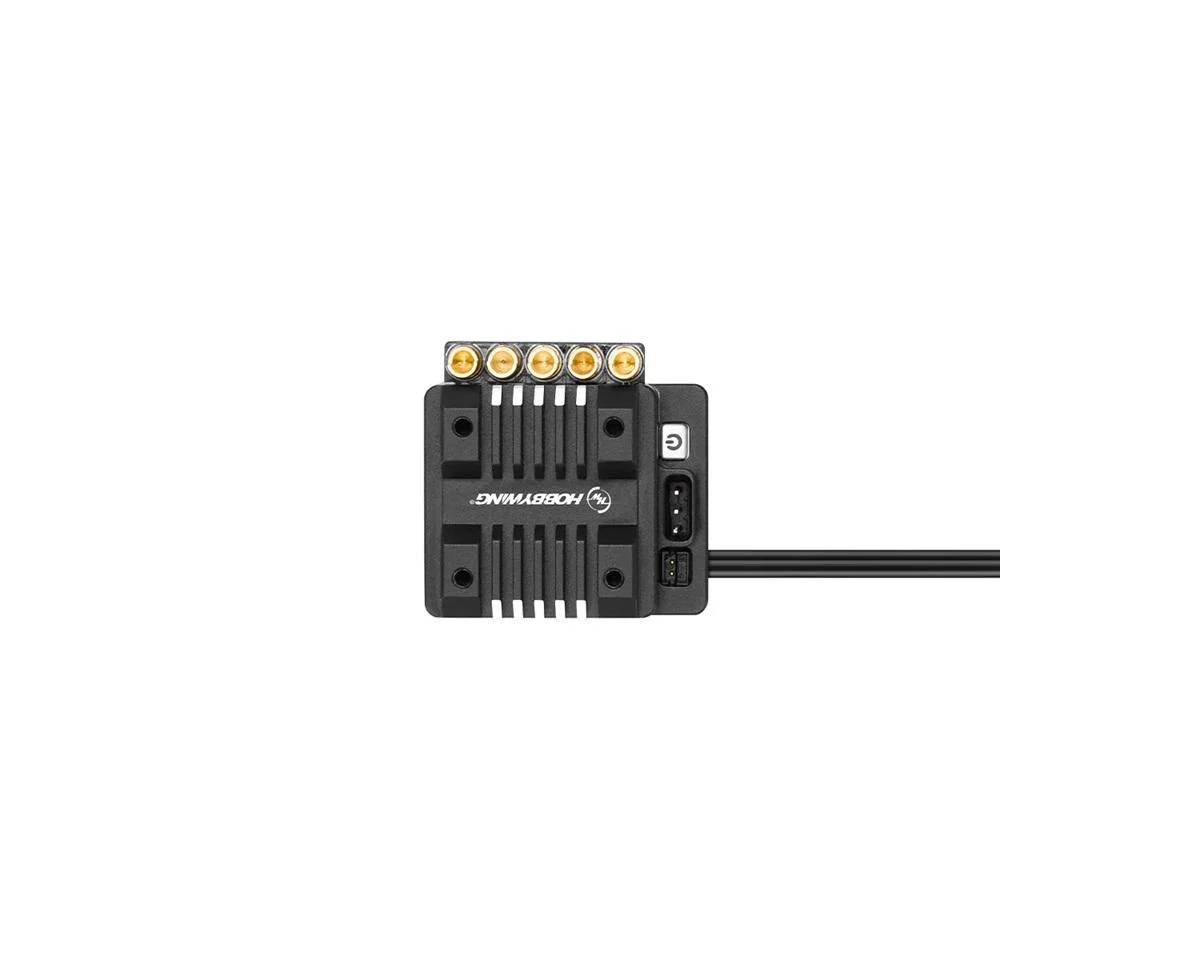

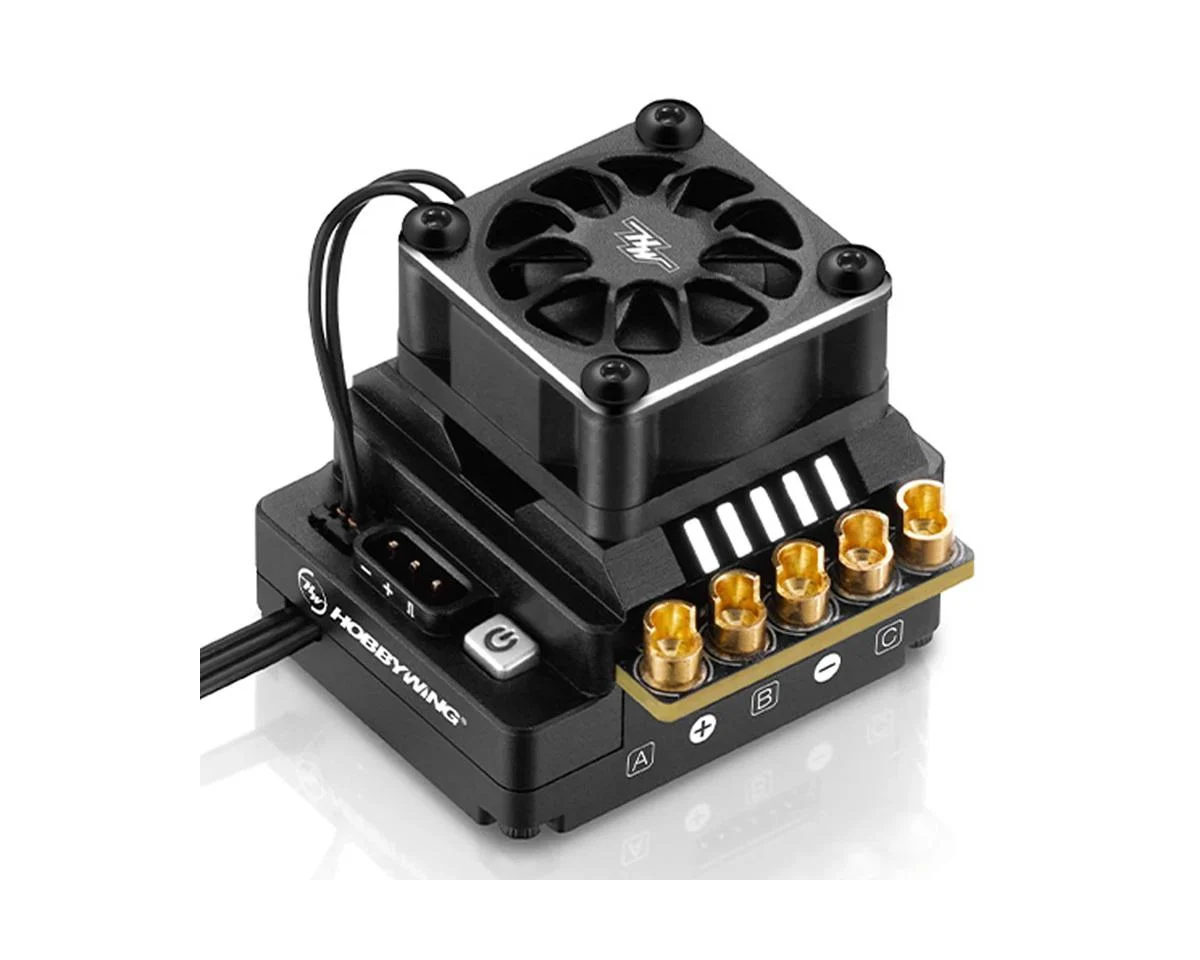

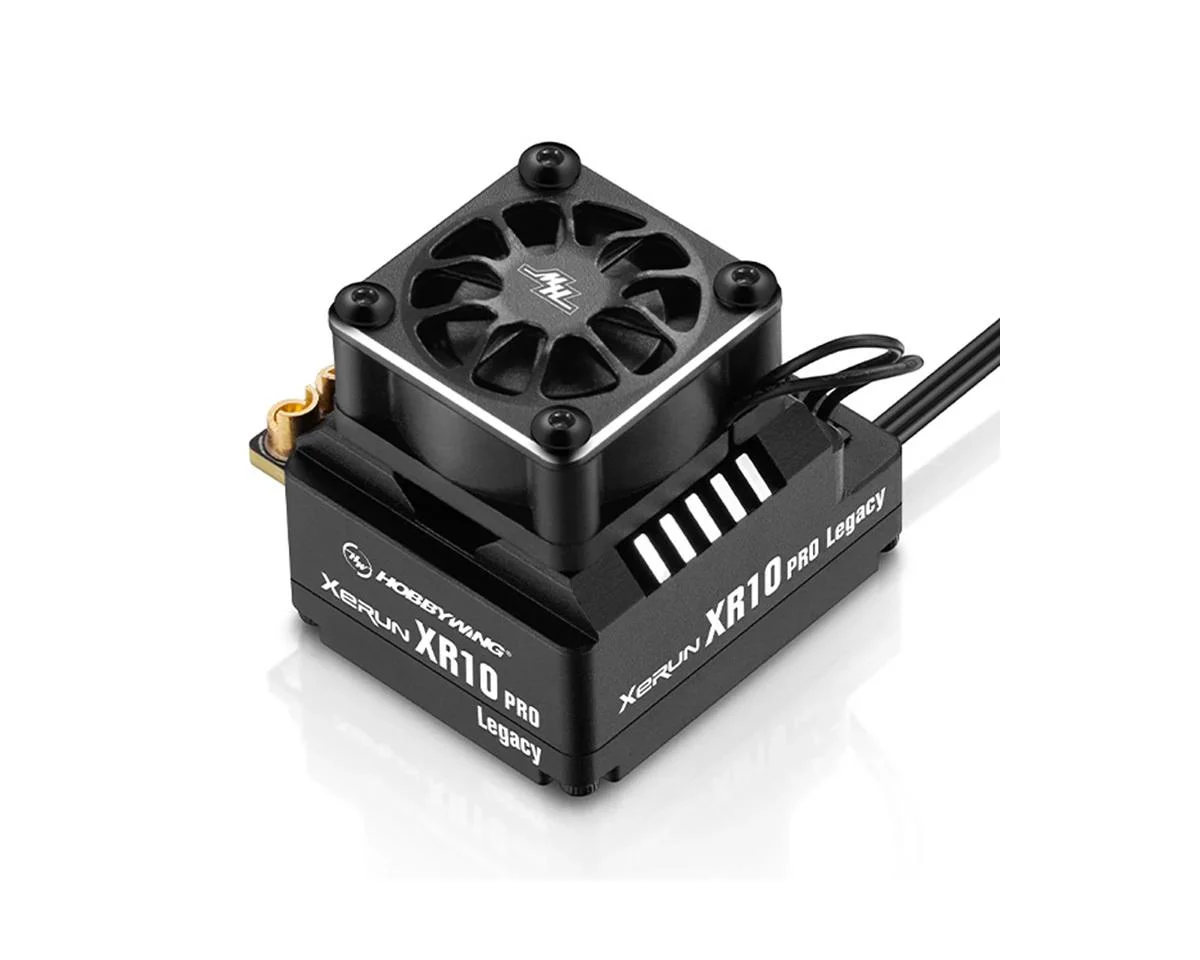

The Hobbywing Xerun XR10 Pro Legacy 1/10 150A Sensored Brushless ESC is tailored for competitive 1/10 modified class racing. This ESC provides optimal performance, offering racers precise control, improved power delivery, and advanced customization options to adapt to various track conditions. With features like Reverse Polarity Protection*, customizable profiles, and built-in data logging, this ESC gives racers a competitive edge while ensuring long-term reliability and efficiency.

About the XR10 Pro Legacy

Advanced Tuning

The XR10 Pro Legacy ESC adds powerful tuning tools to elevate on-track performance. Hobbywing's patented Softening function smooths initial throttle response, giving drivers greater control when traction is low or conditions change throughout a run. Paired with real-time data logging through the optional OTA Bluetooth module and HW Link app, you can monitor key metrics like voltage, temperature, throttle input, and RPM—all recorded for detailed post-race analysis. Together, these features make it easier than ever to fine-tune handling, optimize efficiency, and adapt your setup to any track.

Protection

Designed for dependable performance, this ESC includes a full suite of built-in safeguards such as low-voltage cutoff, thermal protection for both the ESC and motor, and a fail-safe that activates if throttle signal is lost. It also features integrated reverse polarity protection to help prevent damage from incorrect battery connections. Together, these protections provide a safer, more reliable experience every time you power up.

32-Bit M4 Processor

With a high-performance 32-bit M4 processor at its core, this ESC delivers ultra-fast response and increased data-handling accuracy. Its advanced architecture allows room for ongoing feature improvements, blending professional-grade hardware with intelligent software for a truly next-level racing experience.

Features:

• 150A continuous current
• Patented Reverse Polarity Protection
• 9 profiles applicable to all 1/10th RC car racing
• Variable frequency PWM and brake control
• Built-in data logging
• Internal and external switch options
• Softening power delivery function
• Disc Brake mode for enhanced braking
• ESC and motor thermal protection
• Designed for long-term durability and reliability

Includes:

• (1) Xerun XR10 Pro Legacy 1/10 150A Sensored Brushless ESC
• (1) Cooling Fan
• Factory Decals & Accessories
• Product Manual

Specifications:

*Tech Note: While the ESC provides Reverse Polarity Protection, the standard capacitor in the ESC does not offer reverse connection protection. Reverse connection of the battery will damage the capacitor.

**Tech Note: The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.
