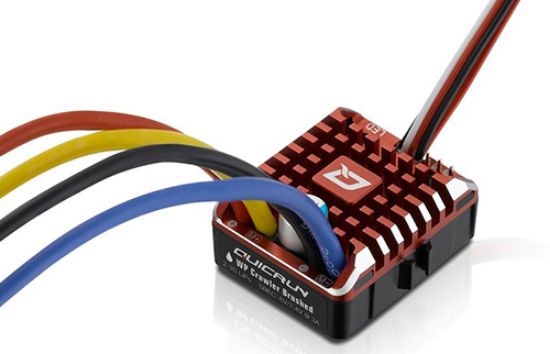

Hobbywing 30112750 QuicRun 1080 WP Crawler Brushed +Program Card

Hobbywing 30112750 QuicRun 1080 WP Crawler Brushed +Program Card
Manufacturer: Hobbywing
Availability: Out of stock
SKU: 30112750
$77.00

Bonus Program card included!!!

Special Design for 1/10th, 1/8th Crawlers The reliable hardware combined with powerful software (features an array of programmable parameters like start force, drag brake rate, and etc.) creates an ideal power solution to 1/10th, 1/8th rock crawlers.



Hobbywing QuicRun Waterproof Brushed 80A ESC w/ Program Card For 1/10 1/8 Crawler #QUICRUN WP-CRAWLER-BRUSHED



Hobbywing QuicRun Waterproof Brushed 80A ESC w/ Program Card For 1/10 1/8 Crawler #QUICRUN WP-CRAWLER-BRUSHED



Hobbywing QuicRun Waterproof Brushed 80A ESC w/ Program Card For 1/10 1/8 Crawler #QUICRUN WP-CRAWLER-BRUSHED



Hobbywing QuicRun Waterproof Brushed 80A ESC w/ Program Card For 1/10 1/8 Crawler #QUICRUN WP-CRAWLER-BRUSHED



*Photos for reference only.



Feature:

  • 100% Waterproof
  • PWM Frequency: 1K/2K/4K/8K/16K Adjustable
  • Freewheeling (DEO) capability
  • Drag brake rate in 9 levels (adjustable)
  • Electronic switch
  • Aluminum case
  • Great heat dissipation
  • WP-1080 ESC VS WP-1060
  • Higher cont. and peak current
  • BEC output can go up to 7.4V
  • 9 levels of drag brake mode
  • Adjustable PWM frequencies
  • Freewheeling capability
  • Adjustable neutral range (9 levels)
  • Adjustable reverse/drag brake
  • LED program box supported
  • Electronic switch
  • Aluminum case



Specification:

  • Applications: 1/10 Rock Crawler
  • Brushed Motor Limit with 2S LiPo/6S NiMH: T≥12 or RPM
  • Brushed Motor Limit with 3S LiPo/9S NiMH: T ≥18 or RPM< 20000 @7.2V (540/550 size motor)
  • LiPo Cells: 2-3S LiPo/5-9S NiMH
  • Weight: 36.2mm*31.6mm*17.0mm/ 58.5g(W/Wires)
  • Size: 36.5 x 32 x 18mm (without fan)
  • Separate Programming Port
  • LED Program Box
  • Cont/Peak Current : 80A/400A
  • BEC Output 6V/7.4V @ 3A (switch mode)
  • Adjustable Reverse/Brake Force
  • LED program box supported
  • Brushed Motors (540/550/775 Series of Motors)



Include:

  • Hobbywing QuicRun Waterproof Brushed 80A ESC w/ Program Card (1 Set)
