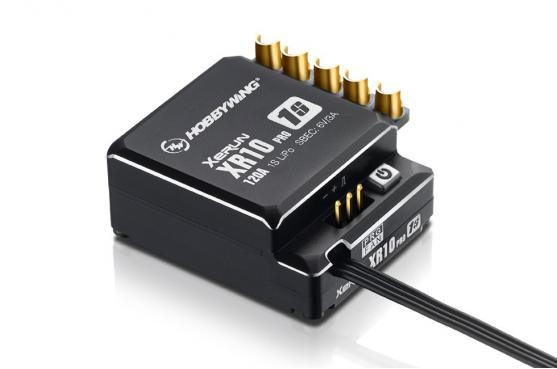

Hobbywing 30112603 XERUN XR10 PRO 1S ESC

Be the first to review this product

Manufacturer: Hobbywing

Availability: 2 in stock

SKU: 30112603

$259.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Special Design for 1/12^th Scale Top Racing

Reliable hardware combined with great software (contains 5 common ready-to-use profiles)
creates an ideal power solution to1/12^th scale top touring car racing.

Small Size & Light Weight

Height of 15.9mm (6mm shorter than the previous V3.1 1S ESC) saves space and makes the
installation convenient; weight of 35.6g (12g lighter than the previous V3.1 1S ESC)
provides more weight margin when adjusting the balance of the chassis.

Super BEC

Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and
power various servos without connecting any extra receiver battery.

Built-in Electronic Switch & Capacitor Module

Built-in electronic switch (with a lifespan of over 50000 on/off cycles, housed in a completely waterproof,
dust-proof and shock-resistant design)and capacitor module save space and
make the wiring simple and neat.

Programming/Upgrading/Data
Reading Wirelessly

With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link
software installed), the user can remotely program parameters, upgrade firmware and
check relevant data of the ESC without leaving the control stand.

Adjustable Throttle & Brake PWM Frequencies

Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate
throttle and brake control for all classes of competitions (esp. the Stock class).

Separate Programming/Fan Port

The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance
or connect the ESC to a LCD program box or WiFi module for ESC programming.

Innovative Data-logging Function

This ESC features the data-logging function which can record the maximum ESC/motor
temperature, RPM and etc. in real time and allows users to check those
data via a LCD program box or WiFi module after each use.

Specifications

Cont./Peak Current: 120A/830A
Input Voltage: 1S Lipo/3-4 Cell NiMH
BEC Output: Switch Mode: 6V@3A

Wires & Connectors

Input Wires: Red-12AWG-200mm*1 Black-12AWG-200mm*1
Red-14AWG-200mm*1 Black-14AWG-200mm*1
Output Wires: Black-12AWG-200mm*3 Black-14AWG-200mm*3
Input Connectors: No
Output Connectors: No

ESC Programing via

SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD Program Box: Supported
WiFi Module: Supported
Program Port: Separate Program Port
Firmware Upgrade: Supported

Size & Weight

Size: 37.5x31x15.9mm
Weight: 35.6g

Applications

Vehicles: 1/12^th Touring Car
KV Rating/T Count: 1S LiPo: ≥3.0T(* ESC in Zero-timing/Blinky Mode)

Programmable Items
