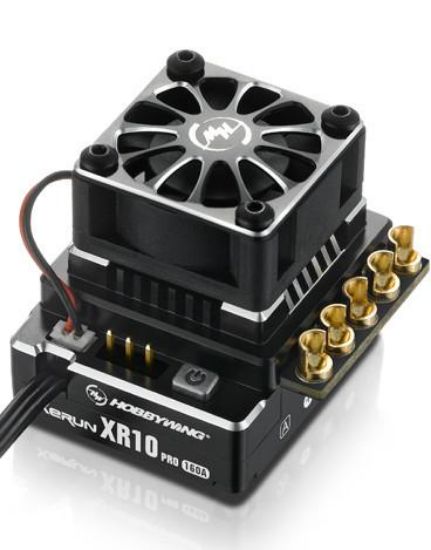

Hobbywing 30112600 XERUN XR10 PRO 160A ESC

Why you need this ESC?

• 10 different programmable profiles available through LCD program box or WiFi Express Modeule
• Fully adjustable brake and throttle functions
• LiPo Low Voltage Cut off
• ESC thermal overheat protection
• Motor thermal overheat protection
• Remote On/Off feature
• "1 degree" Precision throttle and brake control
• Coast Control (patent pending*)
• Drive Frequency Control
• Brake Frequency Control
• Boost Timing control and options for Modified racing
• Turbo Timing control and option for Modified racing
• Ultra-Low-resistance circuitry
• ROAR-approved software including Zero-timing
• Smallest footprint and height possible with current technology to fit within even more tighter space of a vehicle.
• 12-gauge high quality power wires
• Powerful external capacitor board
• HOBBYWING Over-The-Air Firmware updateable through WiFi Express module (purchased separately)
• The most advanced brushless ESC proven by World Champ. Competitions worldwide.

Specifications

• ID:  XR10 PRO ESC
• p/n: 30112600 (Black)
• Type Scale: 1/10th
• Brushless Sensored ESC
• Cont./Peak Current:  160A/1200A
• Power input:  2-3S LiPo/4-9 Cell NiMH
• BEC output:  6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
• Wire input:  Black-12AWG-200mm*2
• Wire output:  Black-12AWG-200mm*3
• Size:  37.5x30.9x31.6mm (w/Fan & Fan Shroud)
• Weight:  95g (w/ Wires)
• Cooling Fan: 25.0x25.0x10.0mm
• Voltage Range:  Powered by the stable BEC voltage of 6V/7.2V

Application:

ROAR approved
1/10th Touring Car & Buggy & Drift Car & F1; 1/8th,1/10th Rock Crawler

What's in the box?

• XR10 PRO ESC w/ a cooling fan
• (2) Input wires 12AWG-200mm
• (3) Output wires 12AWG-200mm
• (2) x cooling fan (comes with one back-up fan)
• Dual capacitors
• Decals
• Bonus parts: heat tubes, double tape, nylon cable zap traps
• User's manual

Motor:

Brushless sensored motor
KV Rating/T Count:

• 2S LiPo/6S NiMH: (Touring Car) T≥3.5T, (Buggy) T≥4.5T.
• 3S LiPo/9S NiMH: (Touring Car) T≥6.5T, (Buggy) T≥8.5T.
