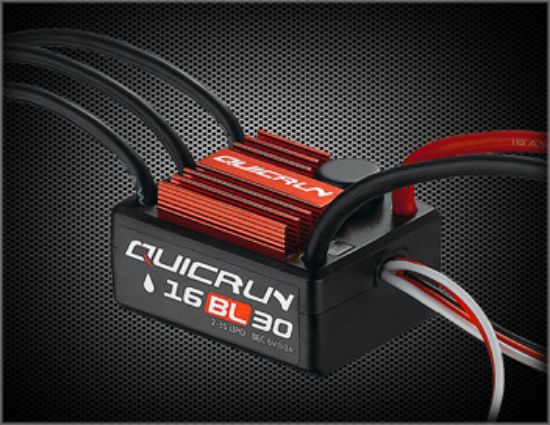

Hobbywing 30110000 QUICRUN-WP-16BL30 30amp Car ESC

Be the first to review this product

Manufacturer: Hobbywing

Availability: 1 in stock

SKU: 30110000

$58.90

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1.1 Water-proof and dust-proof for all-weather races.
(Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
1.2 Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
1.3 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
1.4 Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
1.5 One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
1.6 Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

2. Specifications

Model	QUICRUN-WP-16BL30	QUICRUN-WP-10BL60	QUICRUN-WP-8BL150
Cont./Peak Current/ Resistance	30A/180A/0.002Ω	60A/360A/0.001Ω	150A/950A/0.00035Ω
Motor Type Supported	Sensorless Brushless Motor
Car Applicable	1:18 & 1:16 On-road/Off-road/Buggy/Monster	1:10 On-road/Off-road/Buggy/Monster	1:8 Buggy/Monster
Motor Limit	For 2S Lipo or 6 cells NiMH: 1. On-road: 2435-size or smaller motor with the KV<8000 2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000 For 3S Lipo or 9 cells NiMH: 1. On-road: 2435-size or smaller motor with the KV<5500 2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500	For 2S Lipo or 6 cells NiMH: 1. On-road: 3656-size or smaller motor with the KV<6000 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000 For 3S Lipo or 9 cells NiMH: 1. On-road: 3656-size or smaller motor with the KV<4000 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<300	For 4S Lipo or 12 cells NiMH: 4274-size or smaller motor with the KV<3000 For 6S Lipo or 18 cells NiMH: 4274-size or smaller motor with the KV<2400
Battery	4-9 Cells NiMH 2-3S Lipo	4-9 Cells NiMH 2-3S Lipo	9-18 Cells NiMH 3-6S Lipo
BEC Output	6V/1A (Linear Mode)	6V/2A (Linear Mode)	6V/3A (Switch Mode)
Size/ Weight	36(L)28(W)16(H) / 38g	48.5(L)38(W)32(H) / 90g	59.5(L)48(W)42(H) / 178g
External Program Port	Not Available	Available	Available
Working voltage of Fan	No cooling fan	From battery directly without regulating	From BEC (6V)

Programmable Items	Option 1	Option 2	Option 3	Option 4	Option 5	Option 6	Option 7	Option 8	Option 9
1. Running Mode Note 1	Fwd/Br	*Fwd/Rev/Br*	Fwd/Rev
2. Drag Brake Force	0%	5%	10%	20%	40%	60%	80%	100%
3. Low Voltage Cutoff	Disable	2.6V /Cell	2.8V /Cell	3.0V /Cell	3.2V /Cell	3.4V /Cell
4. Start Mode (Punch)	Level 1	Level 2	Level 3	Level 4	Level 5	Level 6	Level 7	Level 8	Level 9
5. Max. Brake Force	25%	50%	75%	100%	Disable
6. Max. Reverse Force	*25%*	50%	75%	100%
7. Initial Brake Force	=drag brake force	0%	20%	40%
8. Throttle Range	6% (Narrow)	9% (Normal)	12%(Wide)
9. Timing	0.00 deg	3.75 deg	7.50 deg	11.25 deg	15.00 deg	18.75 deg	22.50 deg	26.25 deg
