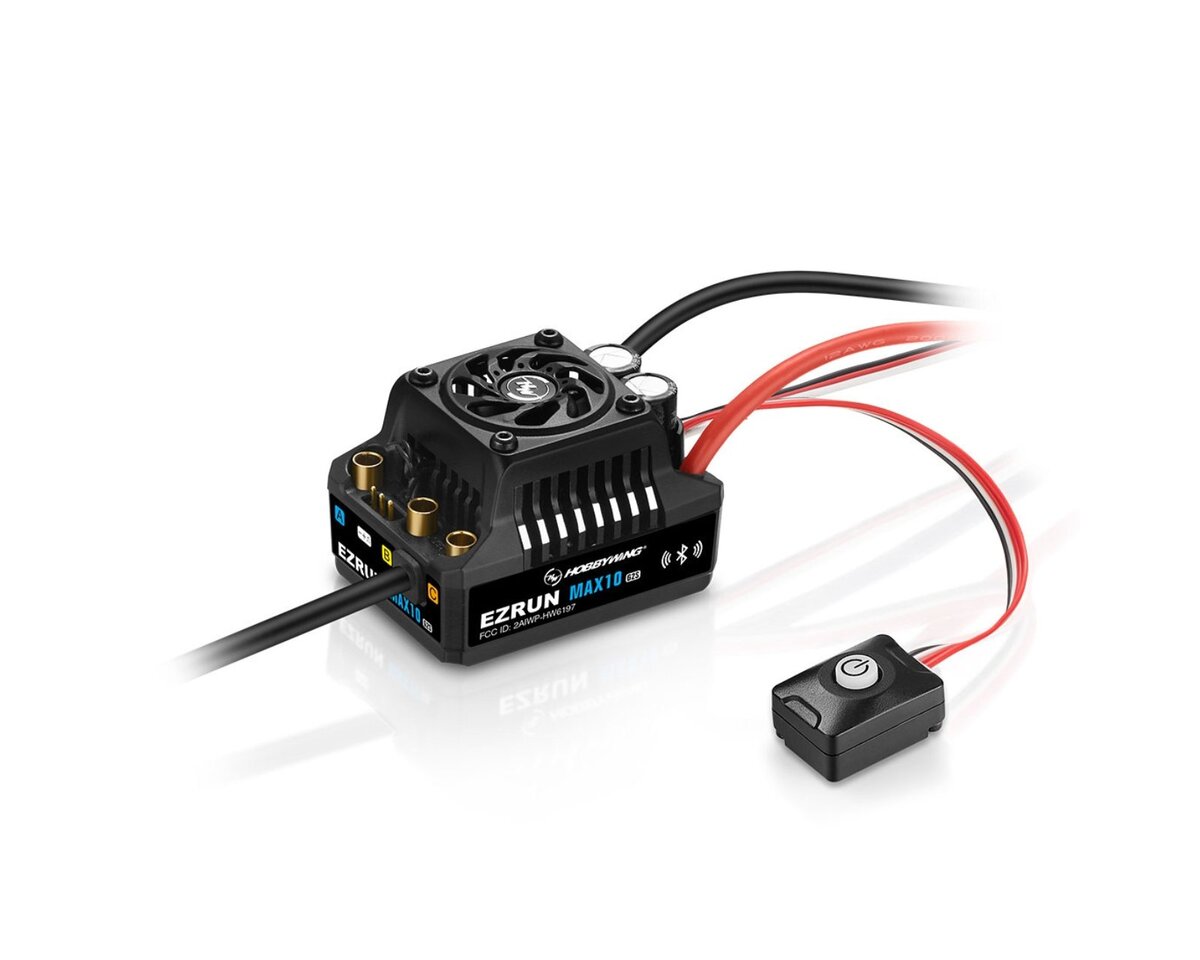

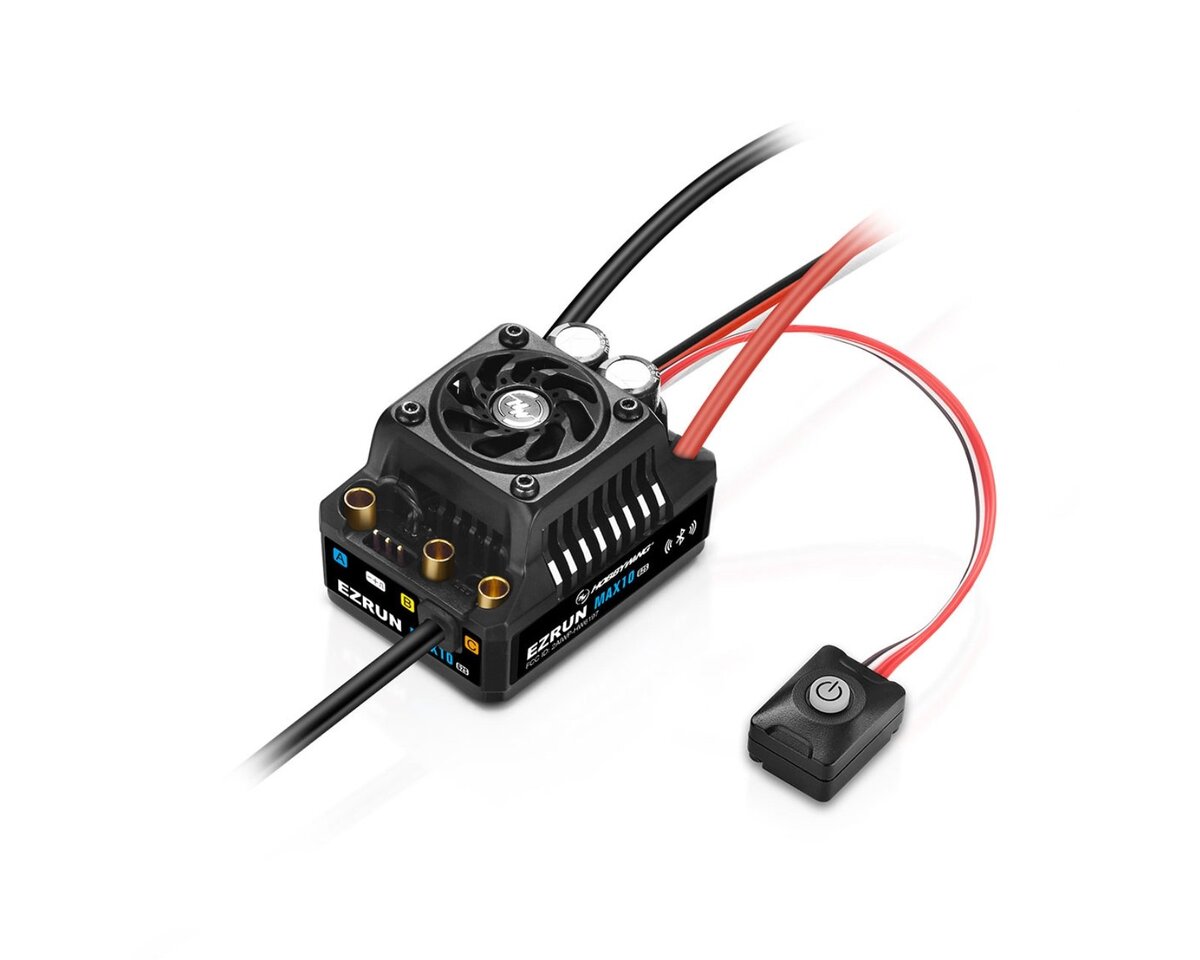

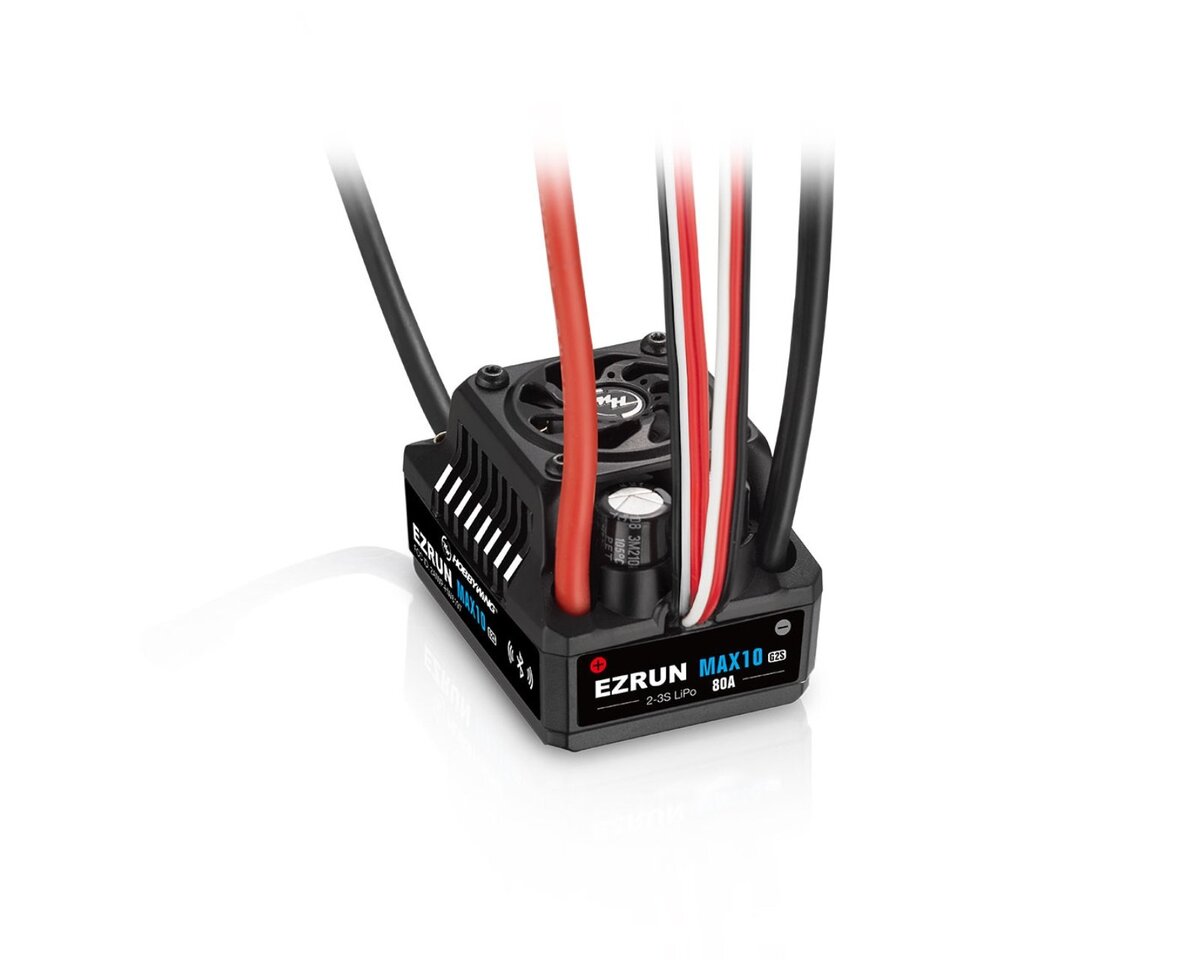

Hobbywing 30102700 Ezrun MAX10 G2S Brushless Controller 80A 2-3s LiPo

The Hobbywing Ezrun MAX10 G2S Brushless Controller 80A 2-3s LiPo is the advanced evolution of the MAX10 G2, offering the same power specifications and housing but now equipped with built-in Bluetooth for effortless setup without additional devices. The Bluetooth module is integrated directly into the switch, enabling seamless connection to your smartphone via the HW-LINK app, where you can perform configuration, data analysis, and firmware updates.

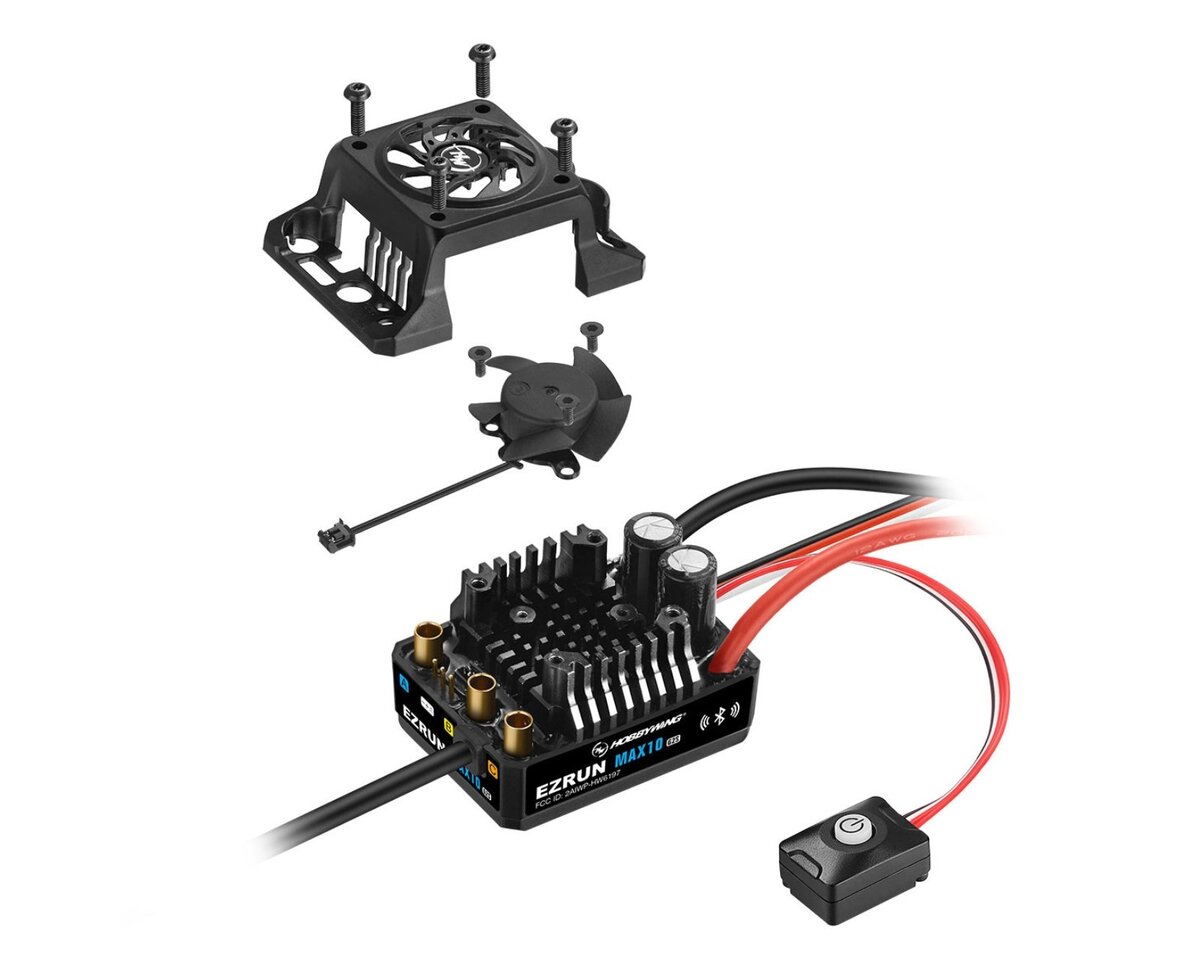

In sensor mode, this brushless speed controller delivers consistent and linear power output throughout the entire RPM range. It provides strong acceleration, precise control in technical slow passages, and stable performance at full throttle or during jumps. The robust housing features an integrated heatsink and a frameless fan that exhausts air sideways to maintain optimal operating temperatures, activating only when a preset threshold is reached to save energy and reduce noise.

Compared to its predecessor, the MAX10 G2, the G2S version introduces three key improvements: integrated Bluetooth, internal data logging, and a third BEC voltage setting at 8.4V to support high-voltage servos.

• Bluetooth module integrated in the switch for direct programming via smartphone without extra hardware
• Internal data logging of the last 10 minutes of runtime, visually analyzable through the HW-LINK app
• Turbo Timing adjustable up to 20 degrees, boosting max RPM by up to 25% with Ezrun 3652/3665 G3 motors
• Three-stage BEC: 6V / 7.4V / 8.4V selectable with 5A continuous output in switch mode
• Frameless fan with lateral airflow, temperature-controlled activation
• Waterproof sensor interface with IP67 dust and water resistance
• Overheat protection for capacitors ensures durability under demanding conditions
• Dual programming options: Bluetooth app or LCD programming box
• Firmware updates via the app provide ongoing enhancements and bug fixes
• Comprehensive protection features including under-voltage, overheating, and signal loss safeguards

Technical specifications include support for 1/10 scale brushless motors both sensored and sensorless, continuous current of 80A with peaks up to 520A, and compatible input voltages of 2-3S LiPo batteries. The controller supports motor limits with KV ratings up to 6000 for 2S and up to 4200 for 3S LiPo setups, particularly optimized for the Ezrun 3652/3665 series. It features an XT60 input and gold connector outputs in a compact footprint (53 x 39.5 x 37.2 mm), weighing just 125g including cables and connectors.

Ideal applications include 1/10 scale on-road cars, buggies, rally vehicles, and short course trucks. Please note that 7.4V or 8.4V BEC operation requires a 3S battery. Turbo timing and motor overheat protection function only with supported Hobbywing motors such as the Ezrun 3652/3665 SD G3. Bluetooth range is approximately 5 meters due to design constraints.

Package contents:

• 1x Ezrun MAX10 G2S Brushless Controller 80A
