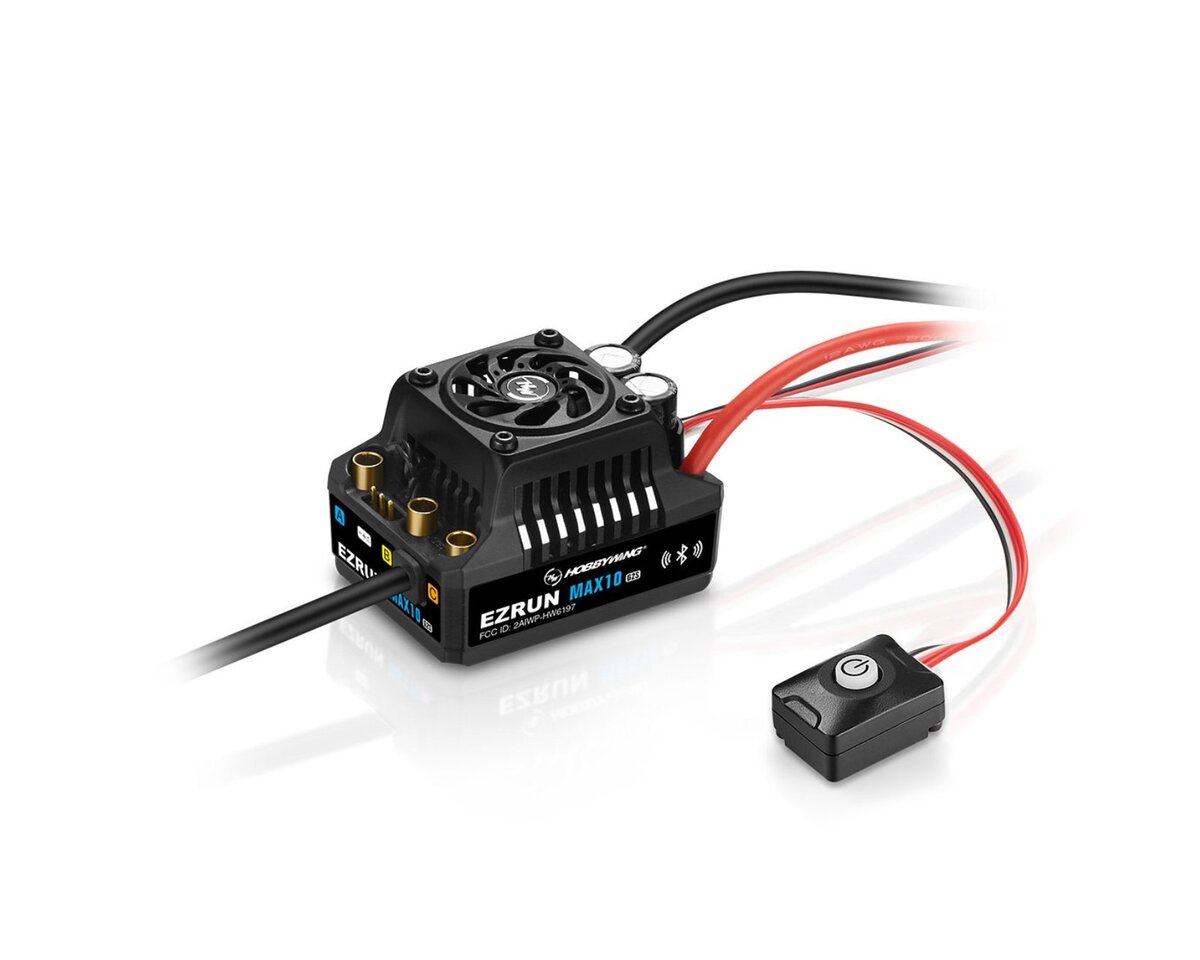

Hobbywing 30102500 Ezrun MAX10 G2S Brushless ESC 140A 2-4s LiPo

The Hobbywing Ezrun MAX10 G2S Brushless ESC 140A 2-4s LiPo is the advanced evolution of the MAX10 G2, offering the same powerful specifications and compact housing but with enhanced ease of configuration. Equipped with an integrated Bluetooth module directly in the switch, it enables wireless connection to your smartphone via the HW-LINK app, allowing seamless programming, data analysis, and firmware updates.

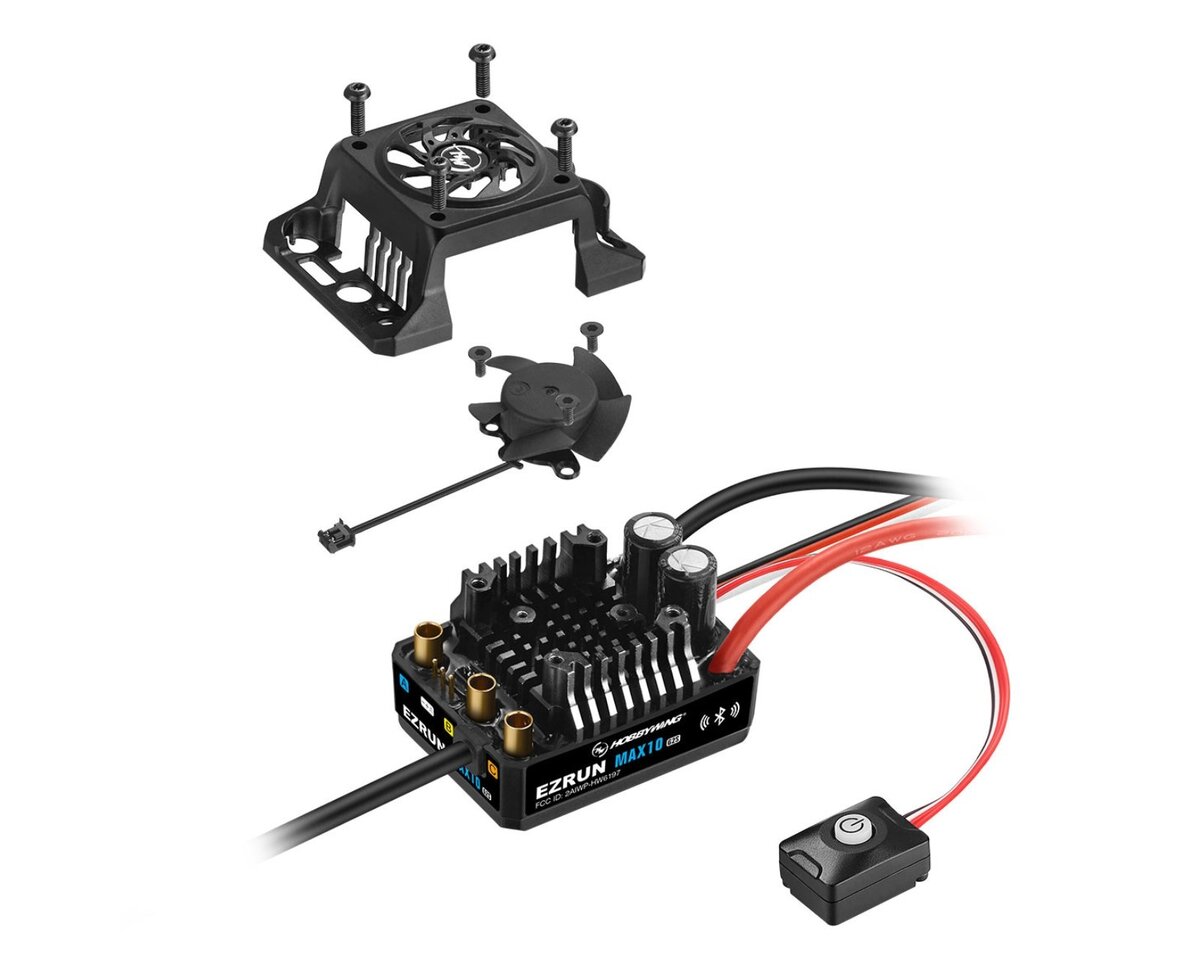

In sensor mode, this ESC delivers a stable and linear output across the entire throttle range: powerful acceleration, precise control in slow technical sections, and consistent performance at full throttle or during jumps. The robust housing includes an integrated heatsink and a frameless fan that expels air sideways, maintaining low operating temperatures. The fan operates only above a preset temperature threshold, staying off during cooler conditions.

Compared to the previous MAX10 G2, this model introduces three key upgrades:

• Built-in Bluetooth for direct wireless control.
• Internal data logging of the last 10 minutes of runtime, fully visualized in the app.
• A third BEC voltage stage at 8.4V designed for high-voltage servos.

Features:

• Integrated Bluetooth module inside the switch – effortless programming directly via smartphone without extra devices.
• Internal data recording of the last 10 minutes for detailed performance evaluation in the HW-LINK app.
• Turbo timing adjustable up to 32 degrees, enabling up to about 25% higher maximum RPM when paired with Ezrun 3652/3665 G3 motors.
• Three-step BEC output: 6V / 7.4V / 8.4V at 5A in switch mode to support various system requirements.
• Frameless temperature-controlled fan with lateral air exhaust for efficient cooling.
• Waterproof sensor interface with IP67-rated dust and water protection.
• Capacitor overheat protection for enhanced durability.
• Dual programming options: Bluetooth app or LCD programming box.
• Firmware updates done effortlessly over-the-air via the app.
• Comprehensive safety features including low voltage cutoff, overheat protection, and signal loss safeguards.

Technical specifications:

• Type: 1/10 scale brushless ESC, supporting both sensored and sensorless motors
• Current (continuous/peak): 140A / 880A
• Input voltage: 2-4S LiPo batteries
• BEC voltages selectable: 6V, 7.4V, 8.4V at 5A continuous current (switch mode)
• Compatible motor types: Brushless motors with or without sensors
• Motor limits based on LiPo count:
  • 2S LiPo: KV ≤ 6000 (3652 motor)
  • 3S LiPo: KV ≤ 4000 (3665 motor)
  • 4S LiPo: KV ≤ 2600 (4268 motor)
• Turbo timing adjustment up to 32 degrees
• Cooling fan powered via BEC
• Programming interfaces: Bluetooth (HW-LINK app), LCD programming box, OTA update module
• Separate 3-pin programming port
• Waterproof rating: IP67
• Connector: XT60 input, gold-plated output connectors
• Dimensions: 53 x 39.5 x 37.2 mm
• Weight: 125 g (including cables and connectors)
• Recommended use: 1/10 scale short course trucks, trucks, and monster trucks

Note: For selecting 7.4V or 8.4V BEC output, a 3S battery or larger is required. Turbo timing and motor overheat protection functions are optimized for Hobbywing motors such as the Ezrun 3652/3665 SD G3. The Bluetooth range is approximately 5 meters due to design constraints.

Package contents:

• 1x Ezrun MAX10 G2S 140A ESC
