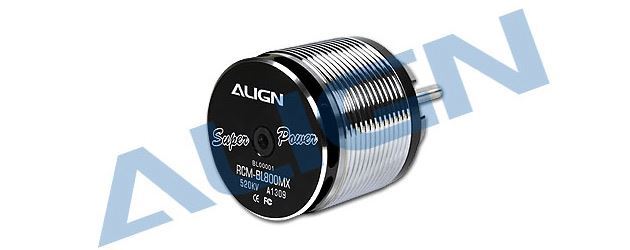

HML80M06 Align 800MX Brushless Motor (520kV)

This is the Align 520kV, 800MX Brushless Motor. This motor is a great choice for both 700 and 800 class helicopters, providing 5,100 watts of continuous power output with an incredible 11,000 watts of burst power! The 800MX motor is a high efficiency, low current draw motor that will operate reliably with a 120A ESC, and will provide consistent torque and head speed during demanding 3D maneuvers.

Features:

• 5,100 watts continuous power output and 11,000 watts of burst power
• High efficiency, superior power, excellent torque, low current draw and low temperature
• Capable of maintaining consistent torque and head speed through continuous 3D maneuvers
• Compatible with 120A electronic speed controller
• Incorporates radial fan in its end bell, creating powerful airflow to dissipate heat
• Tweaks to the design and reduction in weight provide a dramatic power increase
• High efficiency cooling system enables cooler operating temperature during and after flights when compared to previous generation motors
• The 800MX motor armature are dynamically balanced to eliminate typical imbalance found in other outrunner motors.
• High-speed ball bearings, powerful magnetic outrunner rotor
• Suitable for T-REX 700E and 800E helicopters

For information on setting the ICE2 HV 120 governor mode with the 800MX motor, click here.

Specifications:
Input Voltage: 12S (50.4V)
Max Continuous Current: 115A/250A(2sec)
Max Output Power: 5100/11000W(2sec)
KV Value: 520KV
Stator Arms: 12
Magnet Poles: 10
Dimension: Spindle 6x56.7x94.5mm
Output Shaft Length: 51.9mm
Output Shaft Diameter: 6mm
Weight: 508g

Includes:

• (4) Socket Screw 4x10mm
• (4) Washer 4x10x1mm
• (3) 4mm Gilt Terminal
