Hitec HS-D845WP MEGA Torgue 1/5 Scale Servo, Water Proof

Wide Voltage 4.8V, 6.0V, 7.4V, Torque 32.5, 40.5, 50.0 kg/cm, Speed 0.26,0.21, 0.17
Manufacturer: Hitec
Availability: Out of stock
Ship to
Shipping Method
Estimated Delivery
No shipping options
Product Description

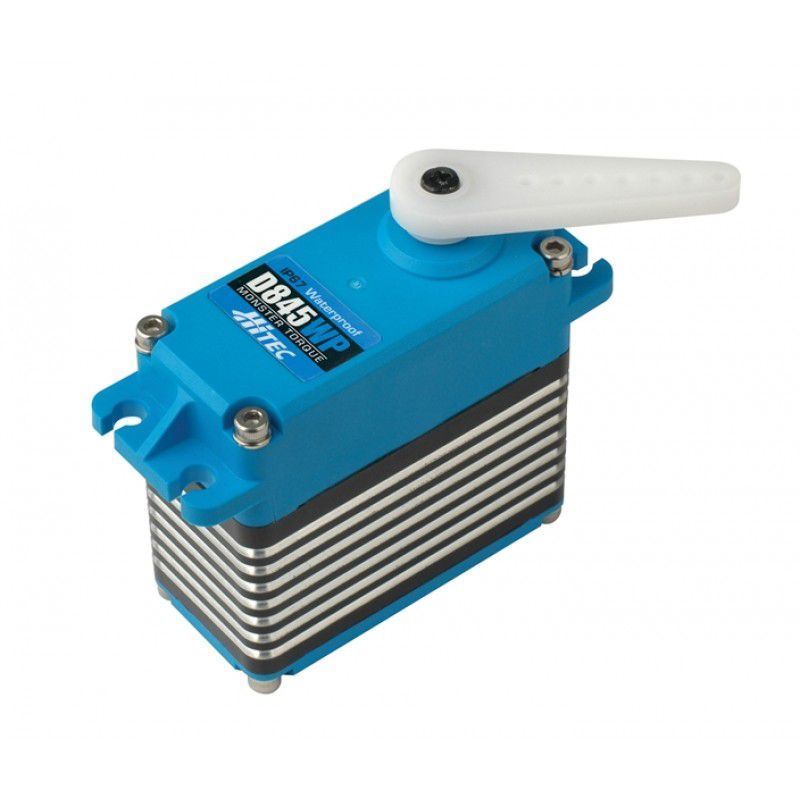

The steel D-845WP is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring a 15 tooth HD output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

D845WP Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC)4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°)0.26 ~ 0.21 ~ 0.17
Maximum Torque Range oz. / in.454 ~ 566 ~ 698
Maximum Torque Range kg. / cm.32.5 ~ 40.5 ~ 50.0
Current Draw at Idle30 mA
No Load Operating Current Draw1,600 mA
Stall Current Draw10,000 mA
Dead Band Width2 µs
Physical Specifications
Dimensions (Inches)2.59 x 1.26 x 2.44
Dimensions (Metric)66.0 x 32.0 x 62.0
Weight (Ounces)8.0
Weight (Gram)227.0
Circuit Type32bit Programable Digital
Motor Type5 Poles Cored Metal Brush
Gear MaterialSteel
Bearing TypeDual Ball Bearing
Output Shaft (type / Ømm)Mega 15
Case MaterialPlastic / Aluminum
Dust / Water ResistanceIP 67
Connector Gauge (AWG) / Strand Count20 / 80
