Hitec HS-85BB+ Mighty Micro Servo 4.8V Nylon Gear

Be the first to review this product

Manufacturer: Hitec

Availability: 3 in stock

SKU: HS-85BB+

$44.50

This product has a minimum quantity of 4

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Product Description

The HS-85BB features a high power motor for greater speed and torque. The HS-85BB is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sail planes.

Features

High Torque and Precision Centering
Strong Resin Gear Train
Ball Bearing-Supported Output Shaft
Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required
Includes vertical mounts/brackets

HS-85BB Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.16 ~ 0.14
Maximum Torque Range oz. / in.	42 ~ 49
Maximum Torque Range kg. / cm.	3.0 ~ 3.5
Current Draw at Idle	8 mA
No Load Operating Current Draw	280 mA
Stall Current Draw	1,200 mA
Dead Band Width	8 µs

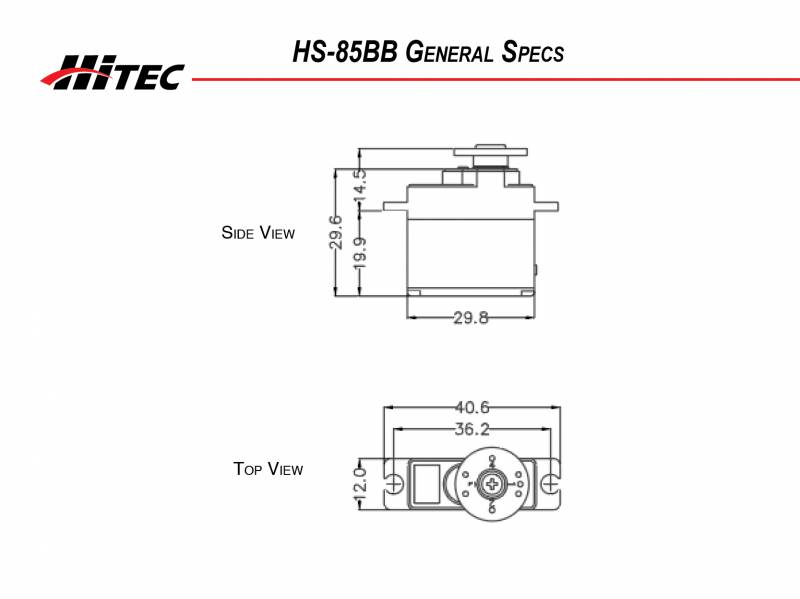

Physical Specifications
Dimensions (Inches)	1.14 x 0.51 x 1.18
Dimensions (Metric)	29.0 x 13.0 x 30.0
Weight (Ounces)	0.67
Weight (Gram)	19.2
Circuit Type	HT7003 Analog SMT
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Nylon
Bearing Type	Top Ball Bearing
Output Shaft (type / Ømm)	Standard 24
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	28 / 20
