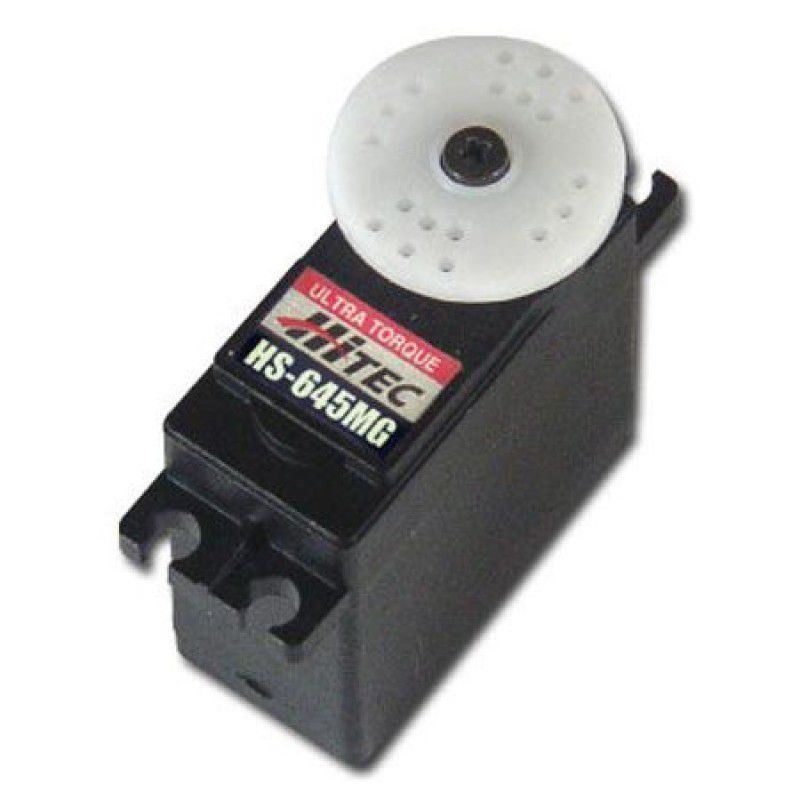

Hitec HS-645MG Ultra-Torque Servo, 9.6kg

HS-645MG Ultra-Torque Servo, 9.6kg, 0.2/sec @ 6v, Dual Ball Bearing, 55.2g, 40.6x19.8x37.8mm

Be the first to review this product

Manufacturer: Hitec

Availability: Out of stock

SKU: HS-645MG

$99.90

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Product Description

The powerful HS-645MG is one of Hitec’s most popular servos. It’s the perfect choice for those larger sport planes or monster trucks and buggies requiring a durable high torque servo. Featuring our unique M/P and metal gear train technology, the HS-645MG offers one of the strongest gear trains available in any servo.

Features

Top Selling High Torque Metal Gear Servo
Strong Three-Pole Ferrite Motor
Heavy Duty Metal Gear Train Featuring our Revolutionary Metal/Plastic First Gear (MP Gear)
Dual Ball Bearing-Supported Output Shaft

HS-645MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.24 ~ 0.20
Maximum Torque Range oz. / in.	107 ~ 133
Maximum Torque Range kg. / cm.	7.7 ~ 9.6
Current Draw at Idle	9.1 mA
No Load Operating Current Draw	450 mA
Stall Current Draw	2,500 mA
Dead Band Width	8 µs
Physical Specifications
Dimensions (Inches)	1.59 x 0.77 x 1.48
Dimensions (Metric)	40.6 x 19.8 x 37.8
Weight (Ounces)	1.94
Weight (Gram)	55.2
Circuit Type	HT7003 Analog SMT
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Metal
Bearing Type	Dual Ball Bearing
Output Shaft (type / Ømm)	Standard 24
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	22 / 60
