Hitec HS-5245MG Servo Digital Mighty Mini Servo- fits PRO12 & Mini Rally

Be the first to review this product

Manufacturer: Hitec

Availability: Out of stock

SKU: HS-5245MG

$119.90

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Product Description

With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

Features

High Speed and High Torque in a Mini Package
Durable Metal Gears
Dual Ball Bearings
Standard Programmable Digital Circuit for Greater Holding Power
Fast, High Torque

Programmable Functions

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Data Save / Load
Program Reset

HS-5245MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.15 ~ 0.12
Maximum Torque Range oz. / in.	61 ~ 76
Maximum Torque Range kg. / cm.	4.4 ~ 5.5
Current Draw at Idle	3 mA
No Load Operating Current Draw	300 mA
Stall Current Draw	1,200 mA
Dead Band Width	4 µs
Physical Specifications

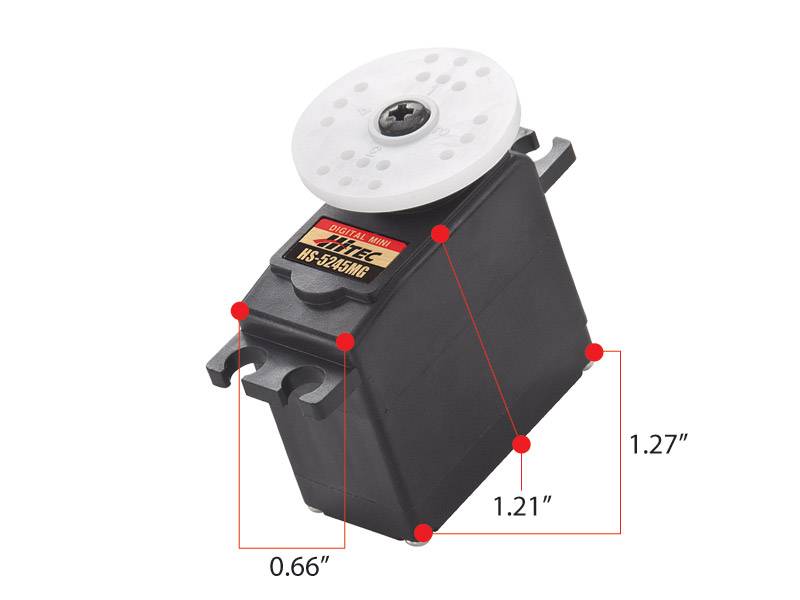

Dimensions (Inches)	1.27 x 0.66 x 1.21
Dimensions (Metric)	32.4 x 16.8 x 30.8
Weight (Ounces)	1.12
Weight (Gram)	32.0
Circuit Type	G1 Programable Digital
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Metal
Bearing Type	Dual Ball Bearing
Output Shaft (type / Ømm)	Standard 24
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	25 / 40
