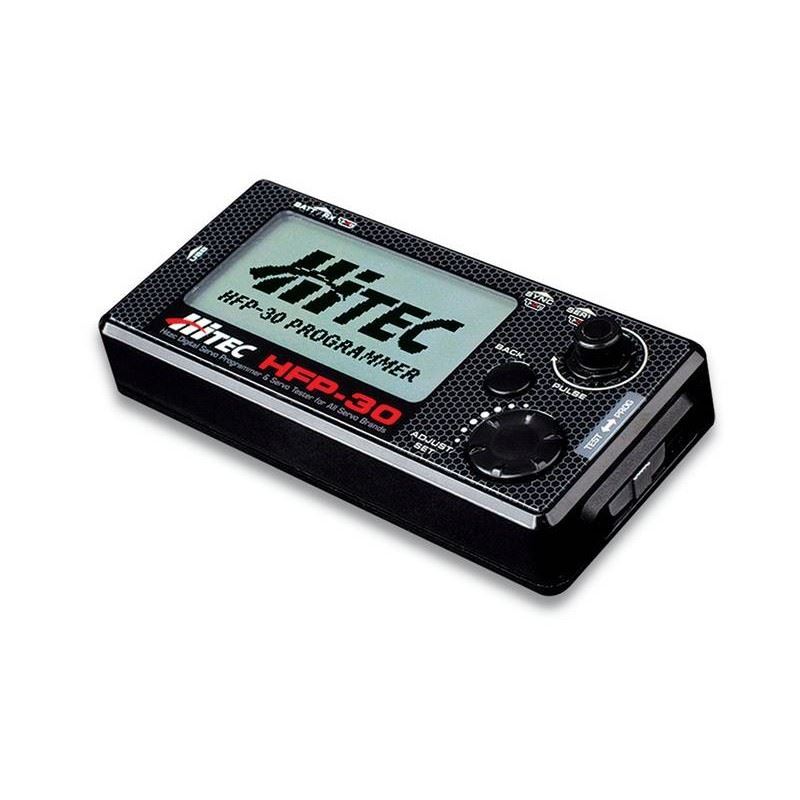

Hitec Digital Servo Programmer & Universal Servo Tester

Performs manual or automatic test on any brand servo, measures receiver pulse width and frame rate, programmes all programmable HITEC servos.

Manual mode

• Displays output pulse
• Displays test time
• Super fine setting selectable (adjustments per 1us)

Auto-Extreme Mode

• Cycles servo through 3 selectable points (1100us, 1500us, 1900us default)
• Speed adjustable from 0.1sec to 5sec
• Displays cycle count
• Displays test time

Auto-Sweep Mode

• Cycles the servo in a sweeping motion between 2 selectable points (1100us and 1900us default)
• Transit time adjustable from 1.6sec/cycle to 80sec/cycle
• Displays pulse output (us)
• Displays cycle count
• Displays test time

Auto-Step Mode

• Cycles the servo in a stepping motion between 2 selectable end points (1100us and 1900us default)
• Step pulse width is adjustable from 1us to 100us
• Displays pulse output (us)
• Displays cycle count
• Displays test time

Auto-DB Mode

• "Jitters"the servo by a selectable pulse width
• Jitter pulse width ajustable between 0.25us-100us (0.25us increments)
• Displays pulse output (us)
• Displays cycle count
• Displays test time
• Great tool for testing the resolution of servos

Adjustable frame rates (3-30ms)

Large easy-to-read LCD screen

Input voltage 4.8-8.4V range

• Reset to factory default
• End and center points
• Direction of Rotation
• Dead Band Width
• Failsafe Point (BLDC/D Series only)
• Speed (reduction only)
• Overload Protection (HS-50XX & HS-7XXX Series)
• Resolution Mode Setting HS-7XXX Series Only)

Digital Servo Programmer and Universal Servo Tester with Instructions

Length: 5.2" (132mm)
Width: 2.5" (63mm)
Height: 0.94" (24mm)
