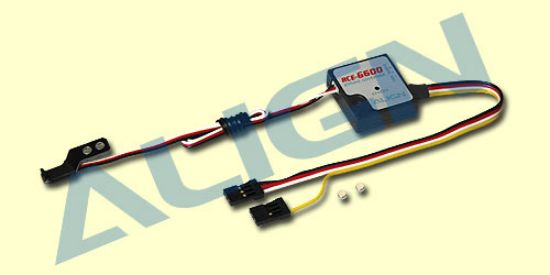

HE50H09 RCE-G600 Governor RCE-G600

●Compact design, easy use, simple setting with great speed control performance.
●Speed resolution: 0.1RPM
●Speed stability accuracy: within 1%(Steady State)
●Not apply to S9251、S9256 and other 760μs servos.
●Operating voltage:DC4.5V-6V
●Consumption current:<20mA@4.8V
●Direct detection of engine rotation speed.
●Speed control range:10500~21000RPM
●Servo RWM output pulse width: 1~2ms，not apply to S9251、S9256 and other 760μs servos.
●Operating temperature range:-20�C~85�C
●Operating moisture range:0%~95%
●Case size(body):28.5x26.2x9mm
●Signal wire length:160mm
●Sensor wire length:250mm
●Weight:10g(including wires)

(Instruction Manual)
