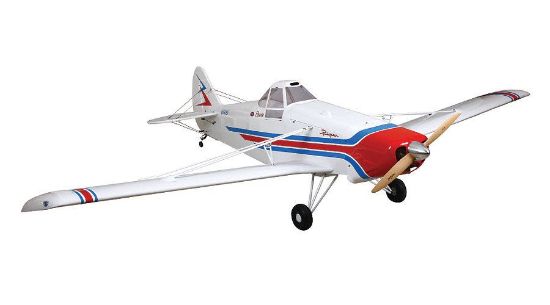

This big, beautiful recreation of Piper’s famous ag workhorse may look imposing, but it’s really a pushover. Even with its 130+ inch wingspan, near-perfect scale outline and details like working oleo struts and functional flaps, it’s no more of a challenge to assemble than many smaller ARFs. And, like the full-scale Pawnee, it’s one of the tamest tail draggers you’ll ever have the joy of flying. The generous wing area, stable flat-bottom airfoil and fiberglass wingtips forgive much while providing smooth, solid control at most any speed. Short field takeoffs and landings with flaps are a whole lot of fun too. If you’ve always wanted a giant-scale plane but were daunted by the complexity or performance, this easy-going 80cc ARF is for you.
Key Features
- Full working scale undercarriage will let the Pawnee operate out of the roughest fields
- Accurate scale outline and color scheme makes a great starting point for a competitive scale project
- Operational cockpit doors provide easy access to internal equipment as well as provide a realistic appearance
- Removable top hatch for easy access to the fuel tank
- Adjustable engine box provides an easier build and greater options to power this plane
- Optional rear battery mount hatch allows modelers to adjust CG without adding weight
- This model is one of the many available for the Phoenix RC Flight Simulator
Needed To Complete
- A 6+ channel transmitter and receiver radio system
- Receiver battery pack
- Eight (8) high-torque servos
- 80cc gas engine
- Propeller
- Fuel
Specs
| Approx. Flying Duration: | 15 minutes |
|---|
| Assembly Time: | 20+ Hours |
|---|
| Control Throw (Ailerons): | Low: 18°; High: 18°; Expo: 30% |
|---|
| Control Throw (Elevator): | Low: 15°; High: 15°; Expo: 30% |
|---|
| Control Throw (Flaps): | 40° maximum |
|---|
| Control Throw (Rudder): | Low: 30°; High: 30°; Expo: 30% |
|---|
| Engine Size: | 60cc to 100cc gas |
|---|
| Experience Level: | Intermediate |
|---|
| Flaps: | Yes |
|---|
| Flying Weight: | 34.0-38.0 lb (15.5-17.3 kg) |
|---|
| Fuel Type: | Gas |
|---|
| Is Assembly Required: | Yes |
|---|
| Overall Length: | 94.0 in (2.40m) |
|---|
| Plane Type: | Scale Civilian |
|---|
| Power Plant Size: | 4.9-7.2 2-Cycle Gas |
|---|
| Prop Size: | 24" A Vess Propeller |
|---|
| Radio: | 6 channels minimum |
|---|
| Recommended Battery: | 2700mAh receiver battery |
|---|
| Recommended Environment: | Outdoor |
|---|
| Retracts: | No |
|---|
| Servos: | 8 high-torque servos required |
|---|
| Spinner Size: | 3-3/4" |
|---|
| Trim Scheme Colors: | UltraCote True Red (U866), White (U870), Sky Blue (U875) |
|---|
| Wing Area: | 2620 sq. in. (169 sq. dm.) |
|---|
| Wingspan: | 130 in (3.30m) |
|---|
