Hangar 9 HAN1070 Super Decathlon 100cc ARF

Be the first to review this product

Manufacturer: Hangar 9

Availability: Out of stock

SKU: HAN1070

Shipping Options *

Store Pickup
North Island [+$15.00]
South Island [+$25.00]

$2,960.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Key Features

Huge 138" wingspan sport aerobatic model of the popular Super Decathlon civilian aircraft
Balsa/plywood construction
Plug-in wings with fast-connect struts make it easy to transport and fast to assemble
Opening left side window and door scale cockpit
Removable cabin top for easy access
Concealed servo mounts for scale looks
Factory-installed fuel tank and plumbing
Painted fiberglass cowl and wheel pants
High-quality hardware included

Needed To Complete

4+ channel transmitter and receiver radio system
Engine
5 × high-torque servos and 1 × standard servo
Servo extensions
Servo arms
2 × Voltage regulator
2 × Receiver packs
Ignition pack
Spinner
Propeller

Video Overview

Overview

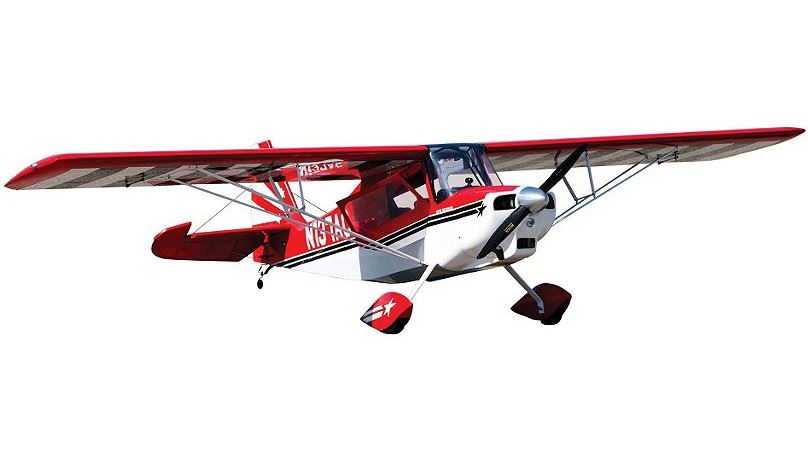

Designed by Mike McConville, the Hangar 9^® Super Decathlon 100cc ARF aerobat is an accurate Giant-Scale representation of the classic general aviation and sport aerobatic, measuring in at an impressive 138-inch wingspan. It easily accepts most popular 80–120cc gas engines. Plug-in wings struts make transportation and field assembly a snap. Along with its factory-painted fiberglass cowl and wheel pants, the model features a scale cockpit with a functional door and window. The cabin top can be removed for easy access. All servos all hidden from view to preserve scale looks. And it has an eye-catching UltraCote^® trim scheme that anyone would be proud to own and fly.

Specs

Wingspan:	137.9 in (3504mm)
Overall Length:	96.0 in (2439mm)
Wing Area:	3177.0 sq. in. (205.0 sq. dm.)
Flying Weight:	38–42 lb (17.2–19.1 kg)
Engine Size:	80–120cc gas
Radio:	4-channel radio system (minimum)
Servos:	(5) high-torque servos, (1) standard servo required
Recommended Receiver Battery:	(2) 4000mAh
Trim Scheme Colors:	UltraCote White (U870), True Red (U866), Black (U874)
CG (Center of Gravity):	6-1/2 to 7-1/8 in (165–181mm) back from the leading edge of wing
Prop Size:	24 x 10–27 x 10
Spinner Size:	4-1/2 in (114mm)
Flaps:	No
Control Throw (Ailerons):	Low: 19º up, 11.5º down, 25% expo; High: 26º up, 16.5º down, 30% expo
Control Throw (Elevator):	Low: 15º up/down, 40% expo; High: 35º up/down, 45% expo
Control Throw (Rudder):	27º right/left, 35% expo
Main Wing Tube Length:	46.0 in (1168mm)
Main Wing Tube OD:	2.0 in (51mm)
Tail Wing Tube Length:	14.0 in (356mm)
Tail Wing Tube OD:	0.5 in (13mm)
Scale:	36%
Is Assembly Required:	Yes
Plane Type:	Scale Civilian
Experience Level:	Advanced
Power Plant Size:	4.9-7.2 2-Cycle Gas
Recommended Environment:	Outdoor
Fuel Type:	Gas
