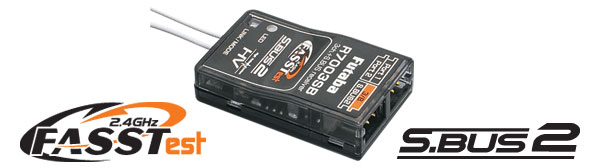

Futaba R7003SB 3/18 Ch S.Bus HV FASSTest RX

Built-in telemetry — incomparable versatility.

Telemetry isn't the only feature that sets the R7003SB apart from other receivers.

Its flexibility is unequaled. The R7003SB allows you to select from 11 modes of operation. Instead of using ports 1 and 2 for channels 1 and two, you can program them to operate channels 1 and 5 instead. But you can also use port 1 as the S.Bus or S.Bus2 port...or choose from eight other configurations

The chart at right shows all 11 possibilities. And picking the one that's right for you is as easy as programming it into the R7003SB.

Features

• Small and lightweight
• Includes programmable ports
• Included cable lets you monitor the voltage of an external (non-Rx) battery
• Full-range receiver
• Dual-Antenna Diversity
• Continuous Channel Shifting
• Pre-Vision

FUTL7672
Modulation: FASSTest;
Type: SBus.2; programmable; bi-directional; telemetry-enabled
of PWM channels: 3 with non-S.Bus/S.Bus2 radio systems up to 18 with S.Bus/S.Bus2 systems
Compatible with: FASSTest transmitters
Dimensions: 1.50 x 0.89 x 0.37 in (37 x 23 x 9.3 mm)
Weight: 0.25 oz (7.1 g)
Includes: Futaba R70038SB FASSTest Receiver & External Voltage Cable
Input Power: up to 2S LiPo
Voltage Range: 3.5-8.4V (receiver)
External Voltage Range: 0-70V
