Futaba R2001Sb 2.4G 1Port SFHSS SBus Receiver

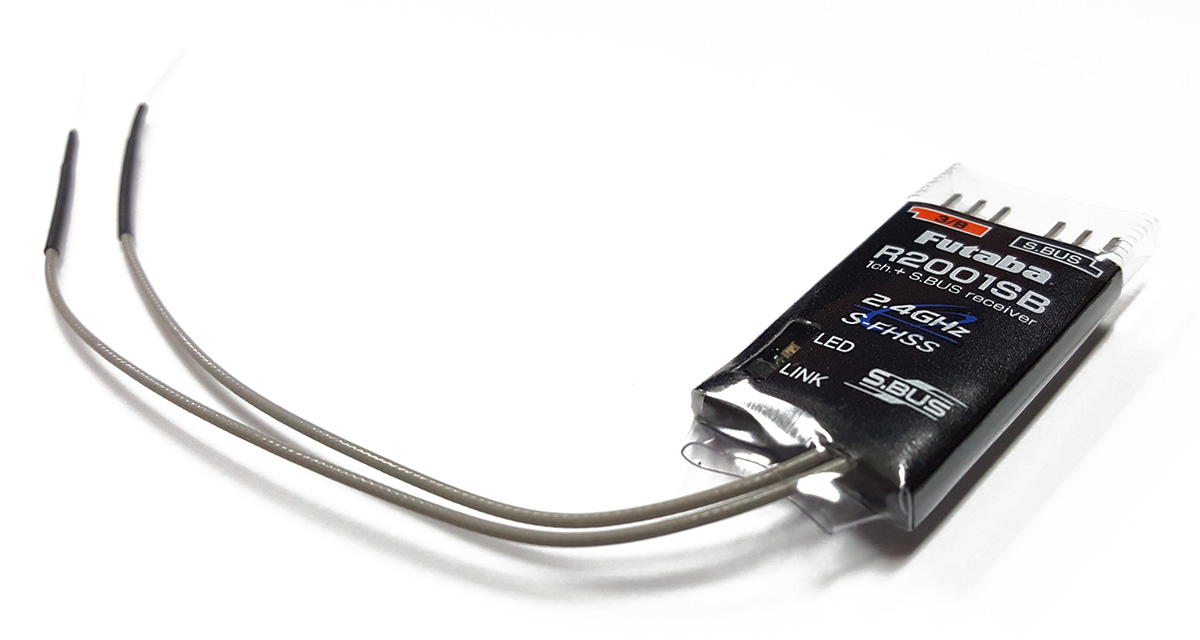

This is the Futaba 2.4GHz R2001SB SFHSS S.BUS HV Receiver.
The smallest, lightest full-range Futaba receiver ever, weighing in at
4.2 grams, but is also an S.Bus powerhouse guaranteed to take your FPV flights
to the max. Link it with one of four Futaba S-FHSS radios with multicopter
function for unparalleled reliability, programming and innovation.

Includes an output on channel 3 for conventional systems
S.BUS can be used with up to 8 channel transmitter
Compatible with conventional system servos in addition to S.BUS
type servos and gyros
Dual antenna diversity
Battery Fail Safe, voltage is set for 4-cell NiCd/NiMH battery,
fail safe function will not work properly if different type of
battery is used
LED status indicator
One year limited warranty through Hobby Services beginning at date
of purchase

R2001SB SFHSS S.BUS HV Receiver
Instruction Sheet

4-cell NiCd/NiMH battery

Applicable Systems: Futaba S-FHSS 2.4GHz system and TM-FH RF Module
Size: 0.83 x 1.65 x 0.21" (21.1 x 41.8 x 5.3mm)
Weight: 0.15oz (4.2g)
Power Requirement: 4.8V - 7.4V

SFHSS system that this receiver uses is NOT compatible with
FASST, FASStest, or T-FHSS systems
