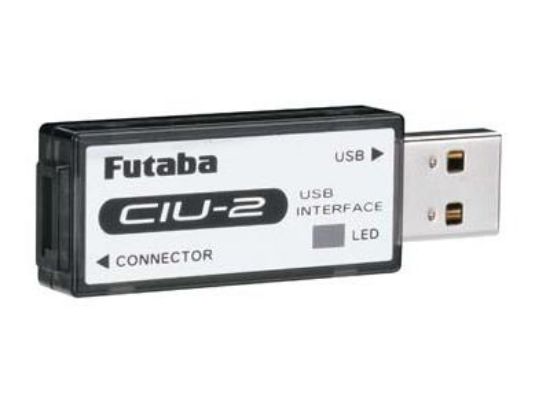

Futaba CIU-2 USB PC Interface

This is the PC USB interface for Futaba products, including the GY520 Gyro and MC line of brushed electronic speed controllers.

Features:

• Setting Data Read-reads the program setting data of the connected ESC
• Setting Data Write-writes data to the ESC
• Default Data Write-writes standard data from the factory
• Get Data-reads the program data when connected to ESC
• Clear Data- clears data from the ESC

Specifications:

• Interface: USB Rev1.1 compliant
• 500mm extension included with the CIU-2 to connect to your ESC
• USB Connector: USB series A connector
• Operating Voltage: 5V � .2V (USB bus power)
• Current Drain: At connection idle; 12.3 � 2mA
• Operating Environment: Temperature -10 ~ 50�C
• Dimensions: .72 x 2.22 x .35" (18.2 X 56.5 X 9mm)
• Weight: .26oz (7.5g)
• Applicable OS: Windows Vista/XP/2000
