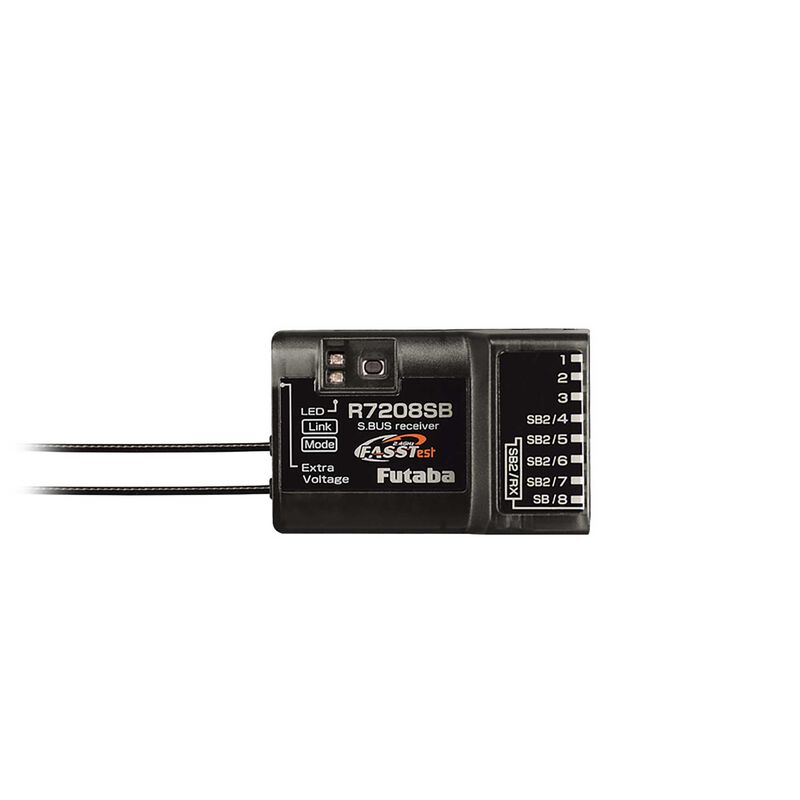

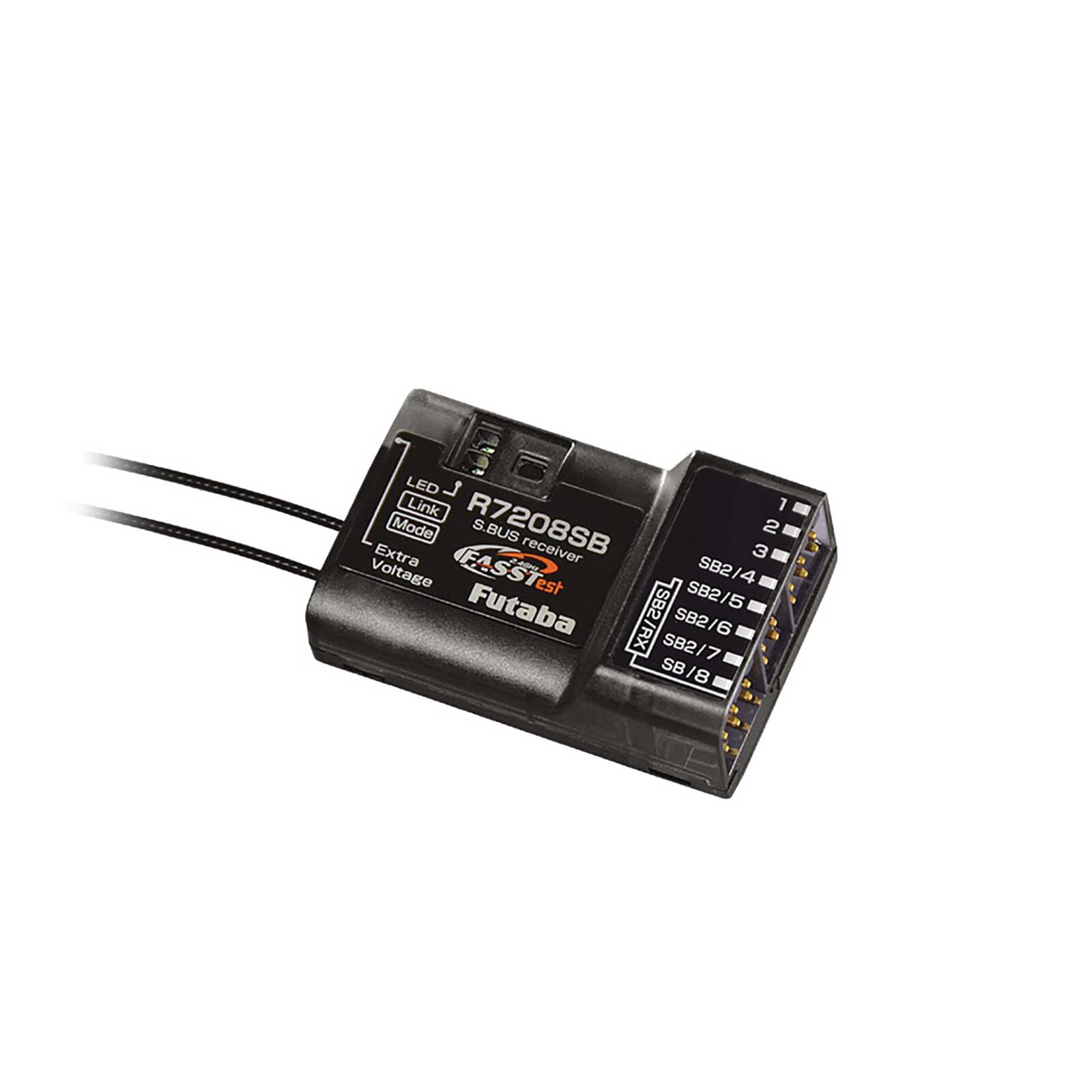

Futaba R7208SB 8/18 Channel FASSTest S.Bus2 Dual Antenna Diversity Receiver (replaces R7008SB)

Manufacturer: Futaba
Availability: 1 in stock
SKU: R7208SB
$248.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Futaba's eight-channel FASSTest-2.4GHz and FASST (no telemetry) transmission system telemetry receiver with a pair of full-band diversity antennas.
It is designed for general use in models of all categories; its compact size, light weight and retractable along connectors make it suitable for slim-frame models such as F3B, F3J, etc. With a choice of channel modes and dual-receiver operation, it will also serve well in models requiring a large number of channels, in which case the R7208SB pair will provide up to 16 classic PWM channel outputs or 14-15 PWM outputs and 1-2 S.BUS serial outputs. In addition, the receiver is equipped with an S.BUS2 port for bi-directional communication, allowing the connection of S.BUS2 servos, telemetry sensors and other compatible devices; channel slots 4-7 can also serve as S.BUS2 ports.

Key Features:

  • 8/18 channel FASSTest receiver
  • Dual RX Link
  • Telemetry with S.BUS2
  • Telemetry with 32 channels
  • PWM channels 1-8 or 9-16 selectable
  • S.BUS / S.BUS2 port
  • Hi-Voltage (HV)
  • Antenna diversity
  • Pulse switching digital servos

Technical Specifications:
Transmission type: FASSTest
Frequency range: 2.4 GHz
Channels: 8 PWM / 18 S.BUS
Transmit power: 100 mW EIRP
S.BUS Port: S.BUS / S.BUS2
Voltage range: 3.7 - 8.4 V
Weight: 11 g
Dimensions: 24.9 x 38.8 x 14.3 mm
