Futaba 10PX 2.4GHz T-FHSS 10 Channel Transmitter with 2 x R404SBS receivers

Manufacturer: Futaba
Availability: Out of stock
SKU: 10PX
Old price: $1,299.01
$1,199.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

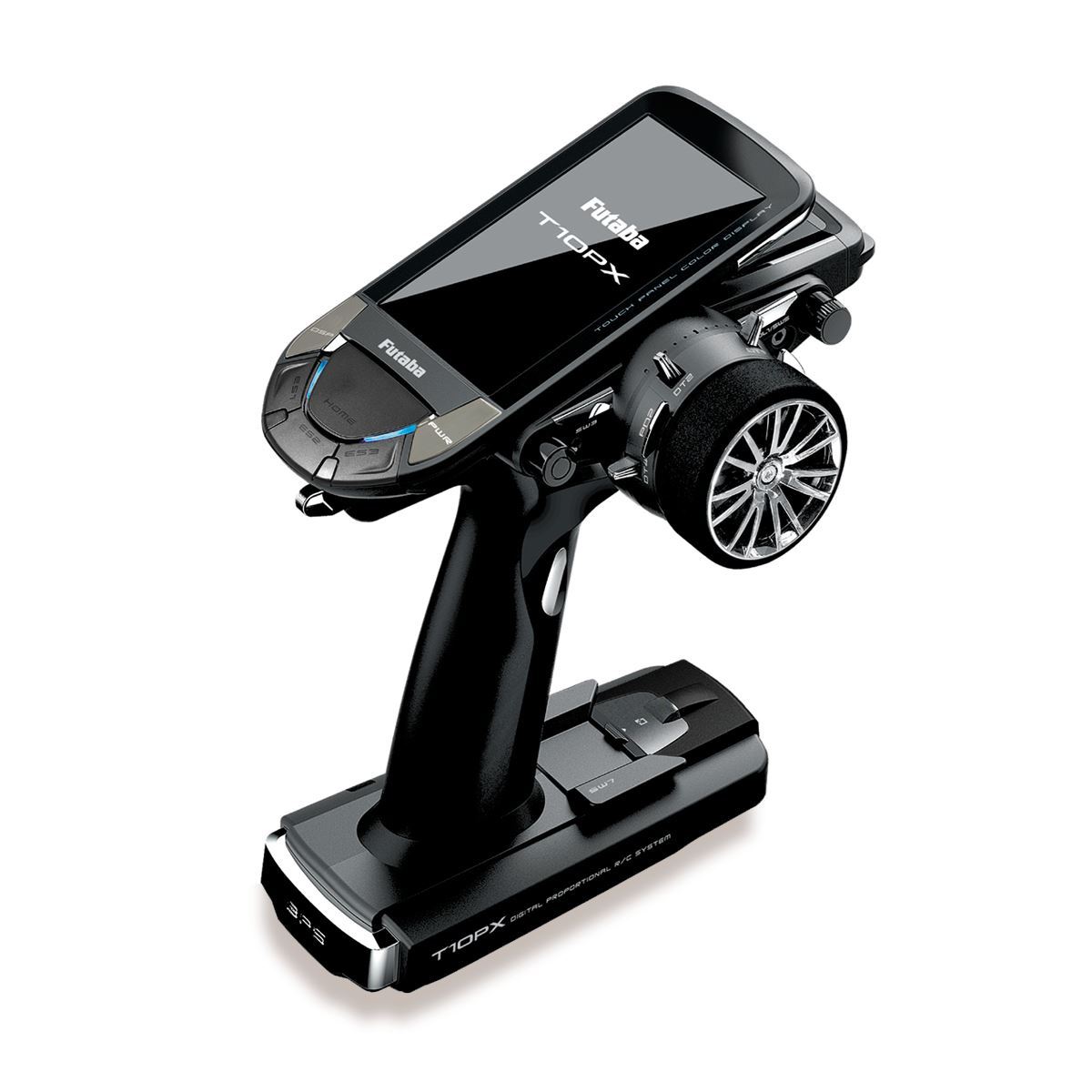

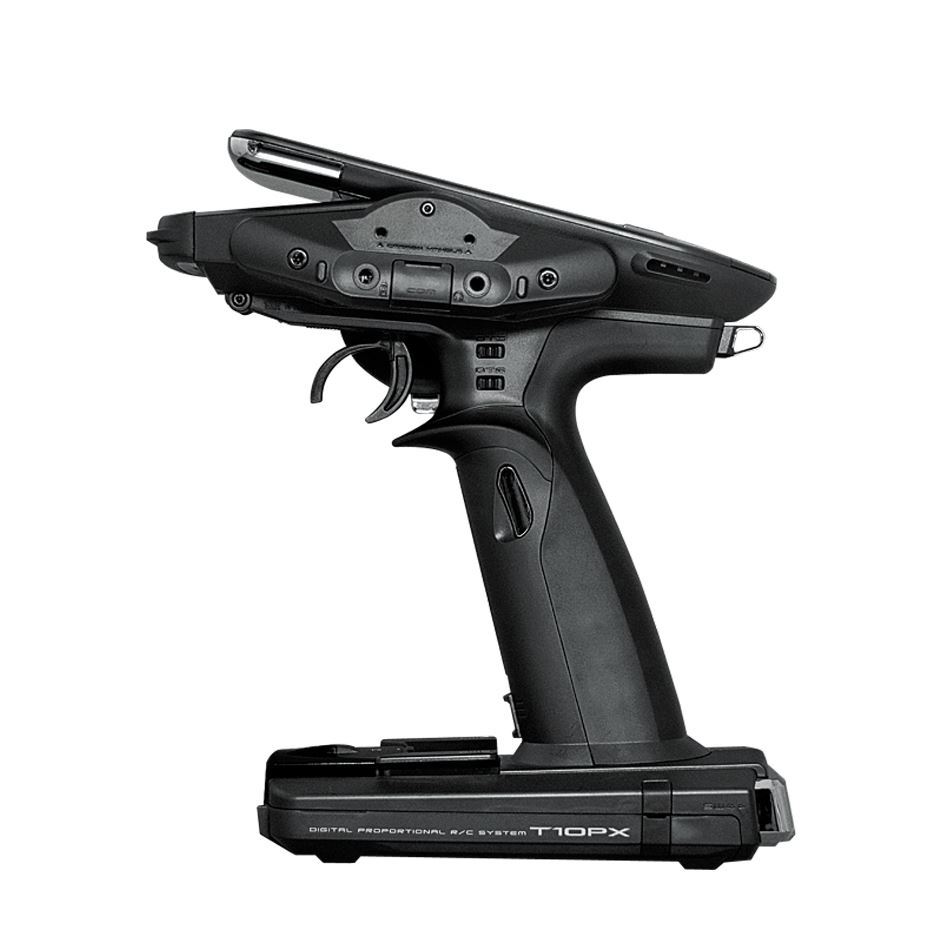

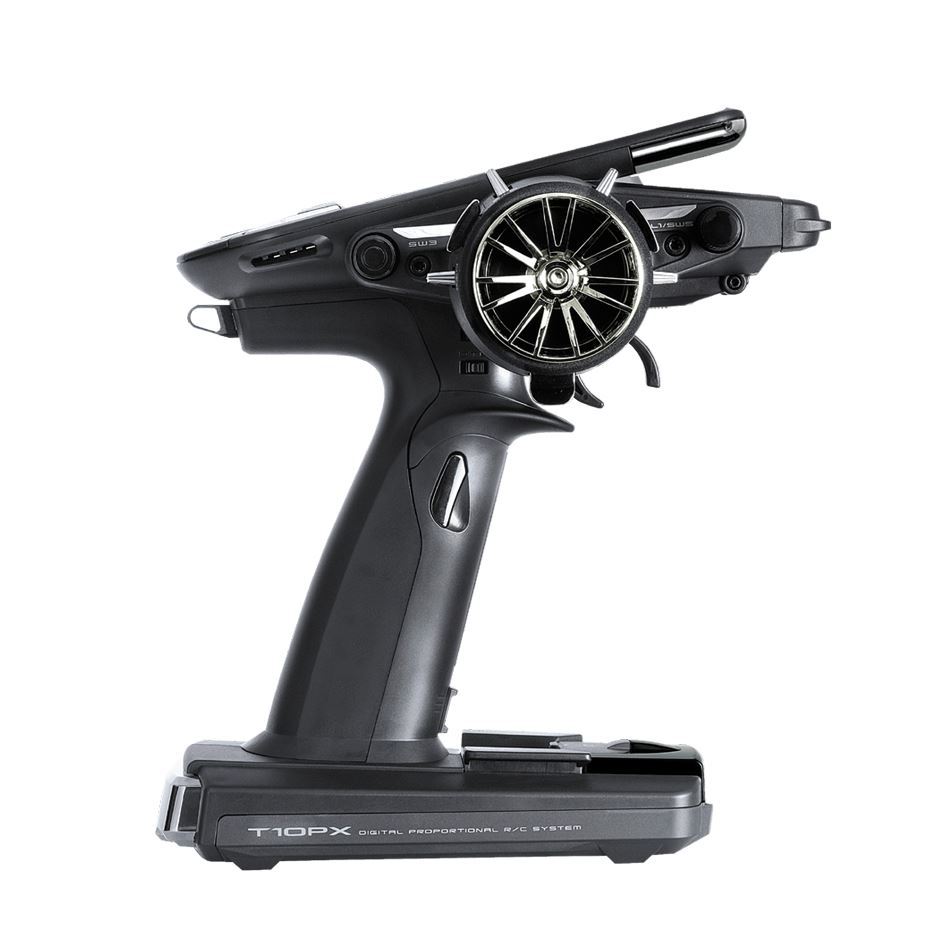

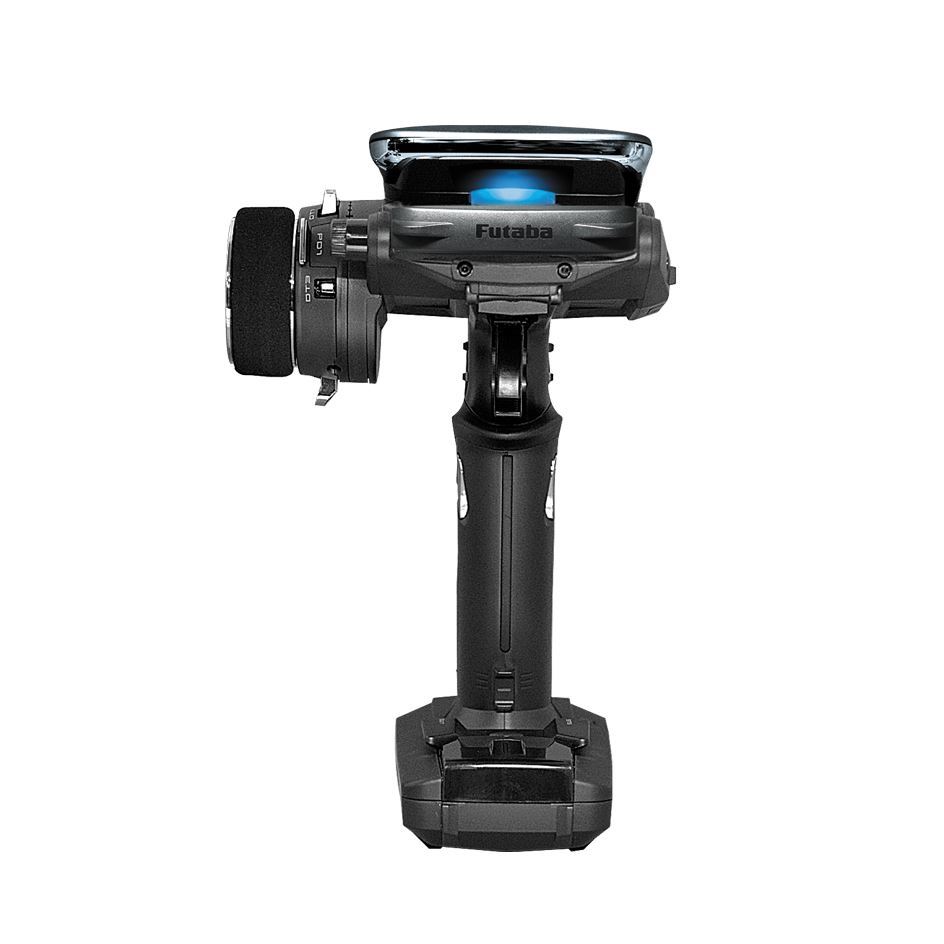

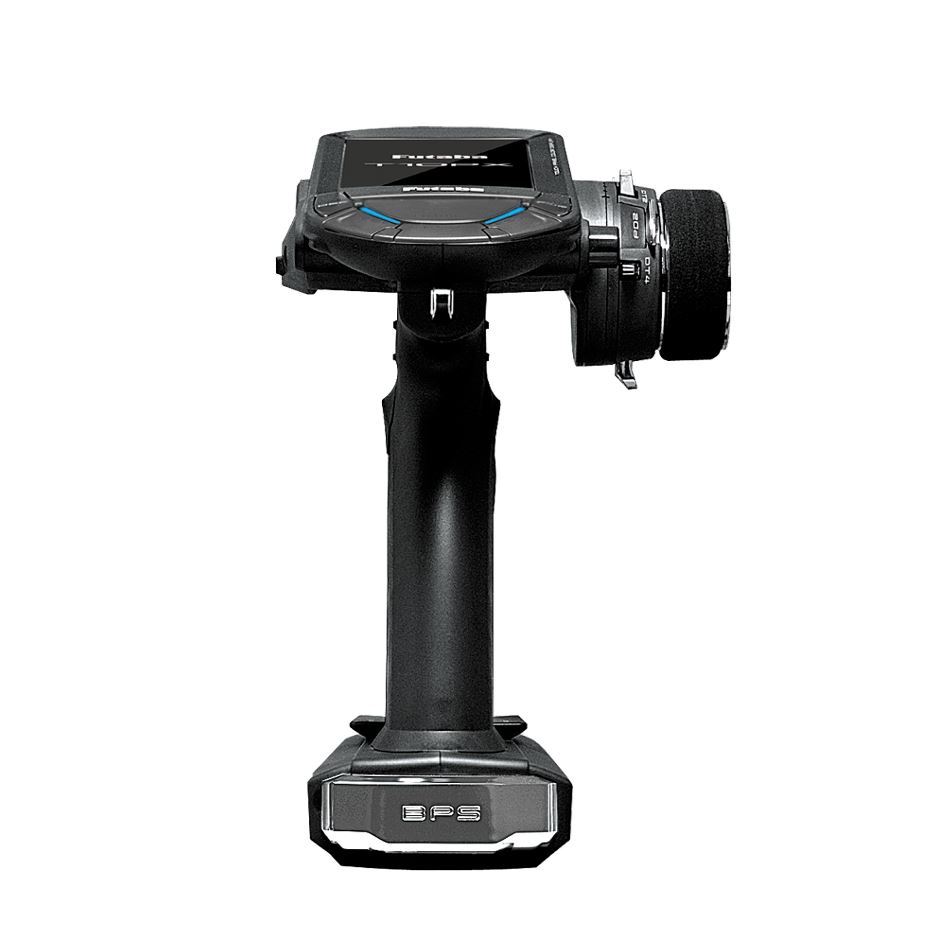

Futaba 10PX 10-Channel Touch Screen Radio System

The Futaba 10PX 10-Channel 2.4GHz T-FHSS Radio System is a digital proportional RC system that features a super response rate. This transmitter features the F-4G telemetry with a faster response than the T-FHSS SR system. Made for the serious racer, this radio allows for many fine tuned adjustments including gyro mixing, throttle speed, steering speed, dual rate and more! These features and functions give you the needed adjustments for refined performance. This combo includes the Futaba R404SBS receiver for out of the box performance.



The large 4.3" is produced in full color and features a backlit LCD touch screen. The screen is transflective, allowing for excellent indoor and outdoor visibility. For extreme comfortability, the steering wheel may be angled and adjusted. This gives the user the ability to fine tune the fitment of the radio to best suite their driving style. For adaptability, the steering wheel may also be moved to a left-handed position. The switch layout offers precise control over the assigned channel/function.



NOTE: When the 10PX is powered on, bright dots may appear on the display. The display contains an extremely large number of Thin-Film-Transistors (TFT) and is manufactured using high-precision technology. Any bright dots that may appear on the display are intrinsic of the TFT manufacturing.



Features:

Full color touch screen LCD

F-4G system & telemetry

Up to 10 channels can be operated by using the S.BUS2 system

By setting to the MINIZ system in the receiver setting menu, you can use Kyosho Mini – Z Evo dedicated receiver RA-42 (Sold Separately)

Software can be updated via microSD card (Sold Separately)

40 model memory with allowance for 15 character names

Allows for the use of an optional LiPo

Brake mixing for large cars

Steering mixing is independent allowing for precise left and right steering servo settings

4WS mixing for crawlers

Dual ESCs mixing allows for two ESCs to be controlled independently

The sensitivity of Futaba car gyros can be adjusted from the T10PX

Tank mixing

CPS LED light mixing

Futaba S.BUS servo allows setting of the parameters of select Futaba S.BUS servo

Specifications:

Transmitter:

Frequencies: 2.4GHz band @ 100mW

Protocols: T-FHSS-SR/T-FHSS/S-FHSS/F-4G

Voltage:

LiPo: 7.4 V

LiFe: 6.6 V

Current Drain: 350 mA or less (When the T-FHSS, Vibration off, back lighting on)

Antenna: 1/2 dipole

R404SBS Receiver:

Size: 1.00×0.81×0.42in (25.5×20.7×10.6mm)

Weight: 5.7g (0.2oz)

Voltage: 3.7-7.4V DC

Includes:

(1) T10PX Transmitter

(2) R404SBS Receiver

(1) 6.6v 1100mAh Life & Charger

(2) Wheel offset adapters

(1) 32° Wheel adapter

(1) 5° Wheel Angle spacer

(1) Large diameter steering wheel

(2) Trigger guards

(1) Rubber Grip

(1) Hex wrench

(1) Short manual
