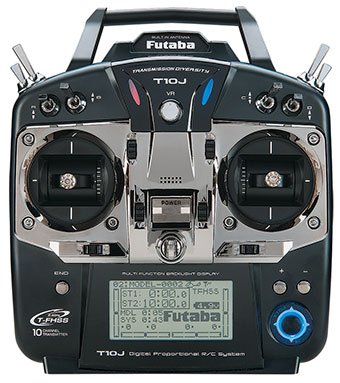

Futaba 10J 10Ch 2.4GHz FHSS Transmitter MODE 2 HELI

The 10J has it all!

Futaba consistently delivers the very best radios and the 10J is no exception. Its full list of features is below, but here are a few of the best: 10 channels, telemetry capable, fully programmable and user updateable. The functions can be assigned to a multitude sticks, switches, knobs and levers. The telemetry data can be viewed on the backlit LCD screen and audibly reported through headphones. Three buttons and a jog dial make it exceptionally easy to program. Plus, it's light weight, easy to handle and equipped with an astonishing 30 model memory. Updating is simple, so your transmitter will never be out of date.

All those features and more are included in a radio that's also the first to have multi-rotor helicopter programming. It's perfect for a whole host of applications: Airplane, helicopter, glider and multi-rotor menus are all included.

Even with all its features, the Futaba 10J is still the most inexpensive telemetry enabled radio system on the planet. It's priced right for a first time radio, but packed with so many features pros will love it as well.

When you're ready for a radio that can fly anything, comes packed with features and includes a powerful telemetry-enabled receiver, pick up the Futaba 10J. You'll be glad you did.

System Features:

• Futaba T-FHSS, S-FHSS 2.4GHz security


• Airplane, heli, glider and multi-rotor software


• 30-model memory


• S.Bus capable T-FHSS receiver


• Telemetry


• Synthesized voice for telemetry data


• Vibration alerts for alarm conditions and low battery


• User-updatable software (requires optional CIU-2 interface)


• Wireless data transfer among 10J transmitters


• Built-in S.Bus programming link for S.Bus servos


• 10-character model and user naming


• Large (128 x 64 dot) backlit LCD display


• 10 channels (one variable knob, five 2-position switches, two 3-position switches, one momentary switch, two digital levers)


• Built-in diversity antenna


• Jog dial and 3 buttons for fast, easy programming


• Sub-trim and fail-safe (all channels)


• Servo reversing, endpoint adjustment, digital trims, dual rates/exponential* & ATL


• Trim step adjustability


• Trainer system


• Throttle cut


• 2 count-up/-down timers + integrated timer


• Model timer


• Range check mode


• Servo cycle w/bar graph displays


• Assignable switch/lever/functions (Ch. 5-10)

Airplane Features:

6 programmable mixes, plus:
9 factory-defined mixes
Flaperons with differential rate
Flap trim
Differential ailerons
Gyro sensitivity
5-point throttle & pitch curves
Throttle delay
Idle down

6 programmable mixes, plus:9 factory-defined mixesFlaperons with differential rateFlap trimDifferential aileronsGyro sensitivity5-point throttle & pitch curvesThrottle delayIdle down

Helicopter Features:

• 6 programmable mixes, plus:


• 10 factory-defined mixes


• 8 swash plate types


• 5 flight conditions w/delay


• Throttle curve (4 curves, 5 points)


• Pitch curve (5 curves, 5 points)


• Throttle hold & delay


• Swash AFR


• Electronic swash ring

Glider Menu:

• 6 programmable mixes, plus:


• 3 factory-defined mixes


• 5 wing types


• Gyro sensitivity


• Motor menu


• 2 flight conditions



Multi-Rotor Menu:

• 6 programmable mixes, plus:


• Gyro sensitivity/mixing


• Center stick alarm

The R3008SB is a T-FHSS telemetry-capable receiver that features S.Bus and S.Bus2 compatibility and 8 conventional ports. The receiver also features an external battery voltage connector.

The large backlit LCD display helps make programming easy, as well as clearly showing the timers and telemetry data.

Acrobatic Home Screen

Multi-rotor Home Screen

Glider Home Screen

Helicopter Home Screen

Model Type Selection Menu

Stick Position Alarm

Telemetry Data

Receiver Type Selection Menu

Glider Butterfly Setup Menu

5-point Throttle Curves

Programmable Mixing

Built-in S.Bus Servo Programmer

Compatibility of Futaba FHSS System
