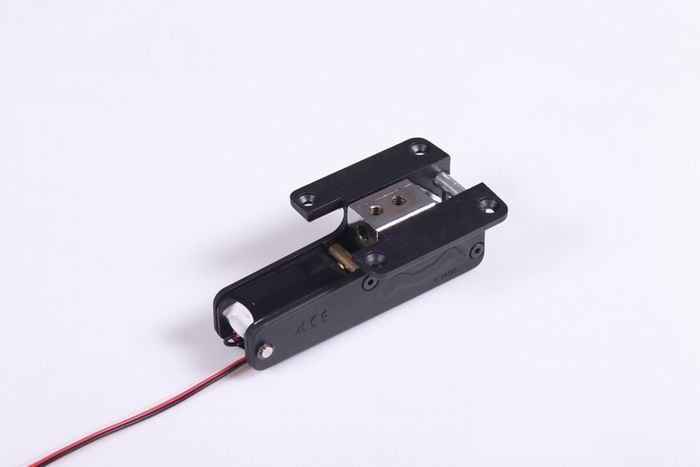

FMS RE003 Servoless Retract

FMS E-Retract003 E-Retract(Plastic) For 1400mm P51 v8 /T28 v2 or v3

It is a slow scale retract, the retracted time is 5-6 second. Designed by FMS team, for 1400mm warbirds updated.

Currentdraw

Idle    10mA

Operating  900mA (maximum)

Pulse width trigger points

Down   1.310ms

Up       1.510ms

Operation with FM and DSM

FM      22ms frame rate,5V signal

DSM   20ms frame rate,3.3V signal

Sequence time

@4.8V      5.68sec

@6.0V      4.57sec

@7.4V       3.68sec

Operating voltage range : 4.8 - 7.4V

Aircraft weight :  8.0 - 13.2 lb (3.63-6.00kg)

Unit weight(FMSRE003) :    2.7 oz (75.2g)
