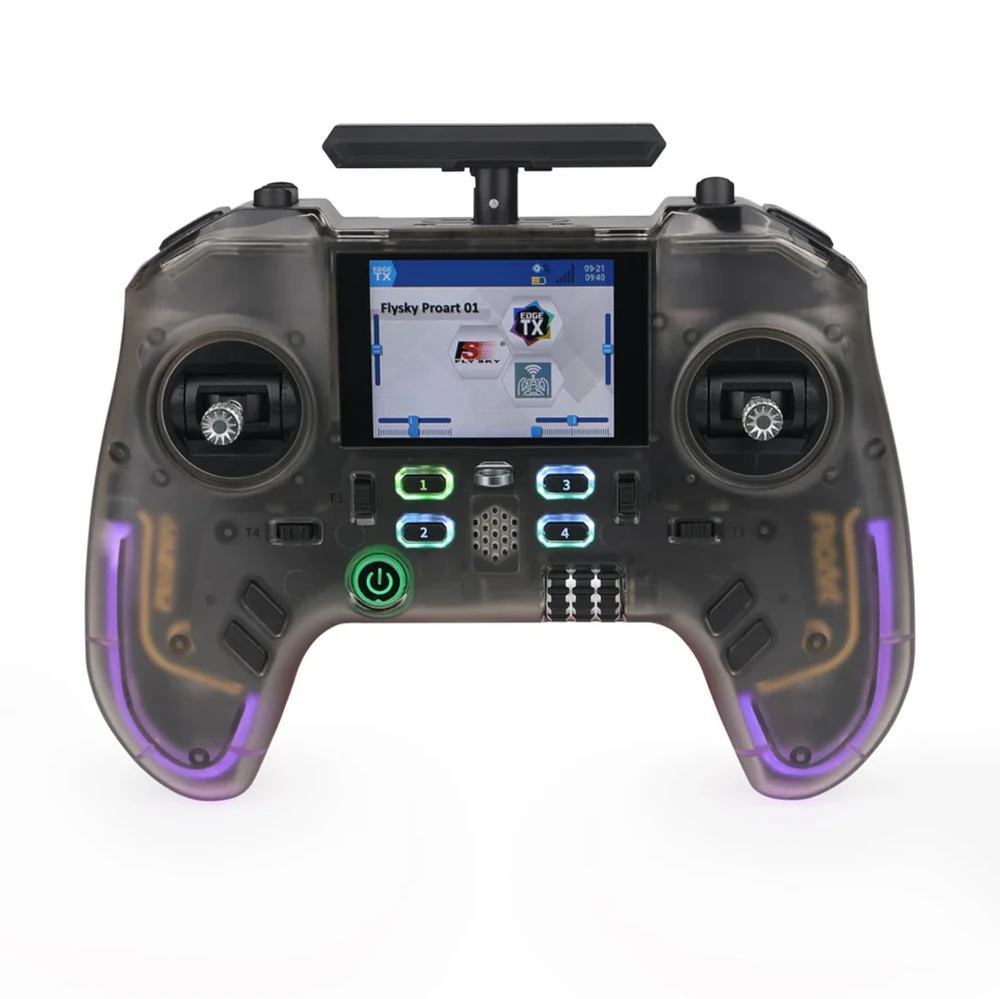

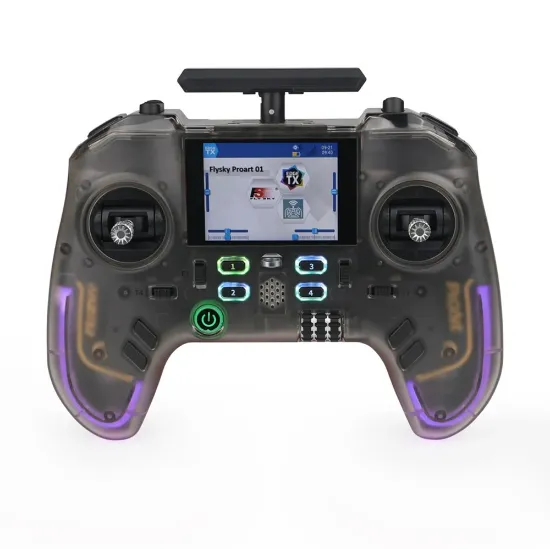

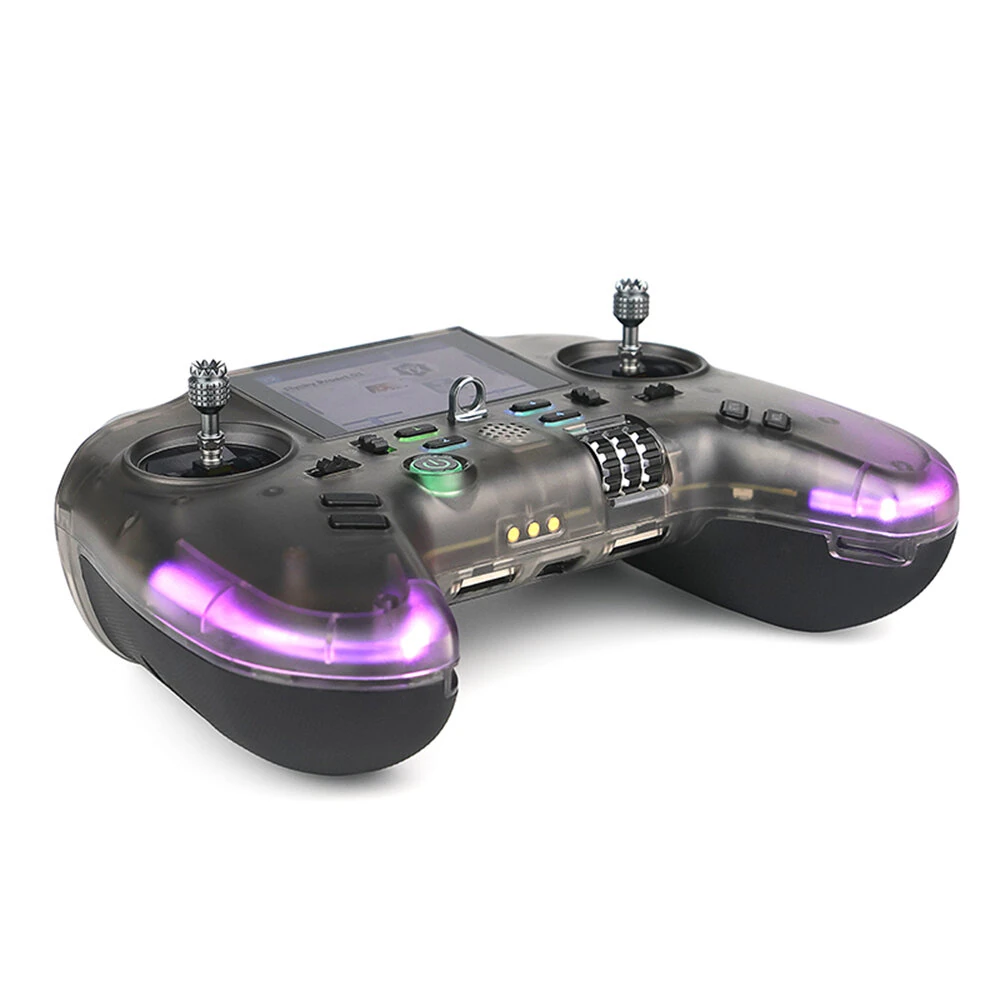

Flysky ELRS PA01

Flysky mode 2 transmitter

Be the first to review this product

Availability: Out of stock

SKU: PA01 /ELRS

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Futuristic, Customizable Air Transmitter

The Flysky ProArt PA01 AFHDS3 18-Channel Air Radio System is a high-performance radio system designed for precision control, comfort, and modern customization. Built around advanced processing hardware and a vivid IPS display, it delivers reliable performance for demanding RC pilots and gamers alike. With ergonomic design elements and flexible connectivity options, the PA01 is well suited for extended use across a variety of applications. Its customizable lighting and button layout further enhance both functionality and visual appeal.

About the Air Radio System

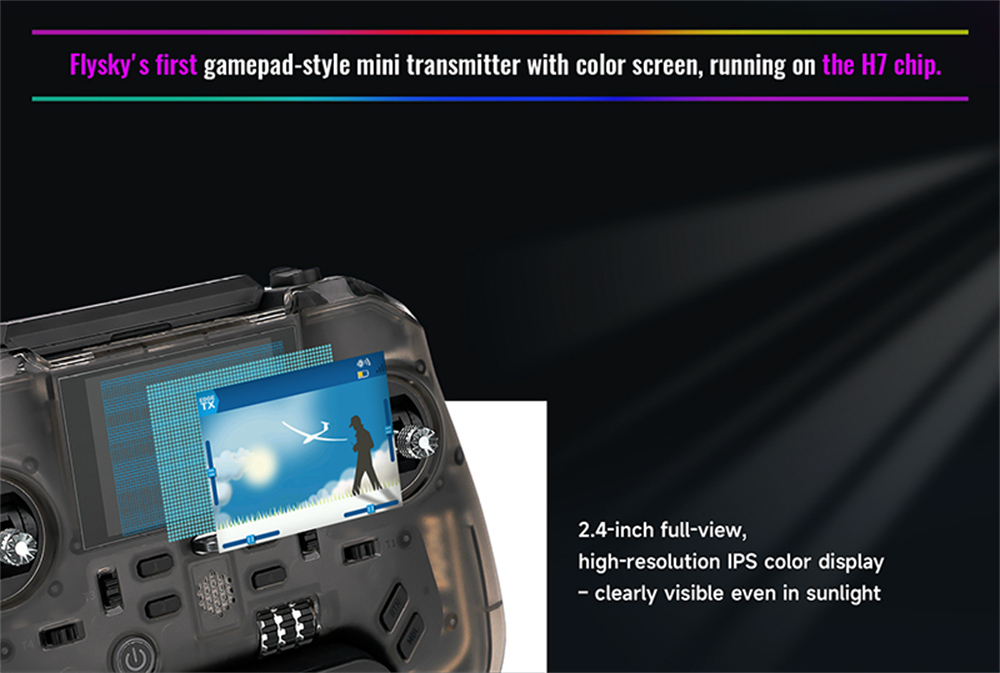

High-Resolution IPS Display

The PA01 features a 2.4-inch full-color IPS display that delivers sharp visuals and wide viewing angles. High brightness ensures excellent visibility even in direct sunlight, making it easy to monitor settings and telemetry at a glance. The clear, responsive screen enhances usability in both indoor and outdoor environments.

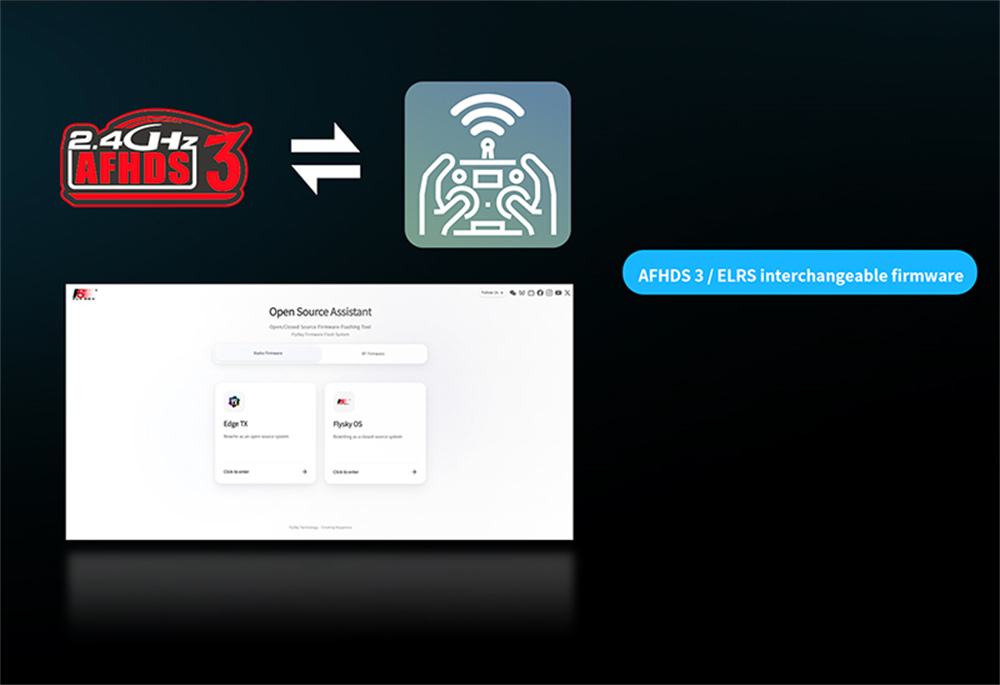

Advanced Processing & Transmission Technology

Powered by STM32 H7 and ESP32-S3 chipsets, the PA01 offers fast processing speeds and stable signal performance. Support for AFHDS 3 and ELRS transmission protocols provides high precision, low latency, and dependable control. This advanced core architecture ensures smooth operation and consistent performance during demanding sessions.

Ergonomic Design & Customization

An ergonomic body with 3D-mesh anti-slip grips delivers comfort and control during long operating sessions. Customizable RGB lighting and four RGB buttons allow users to personalize both appearance and functionality. Multiple connectivity ports further expand versatility, making the PA01 adaptable to a wide range of setups.

Specifications

Flysky ProArt PA01 2.4GHz 18CH AFHDS 3/ELRS Built-in 500mW Hall Gimbal EdgeTX Raido Controller 2.4-Inch Full-view Color IPS Display for FPV Drone RC Car Boat Airplane

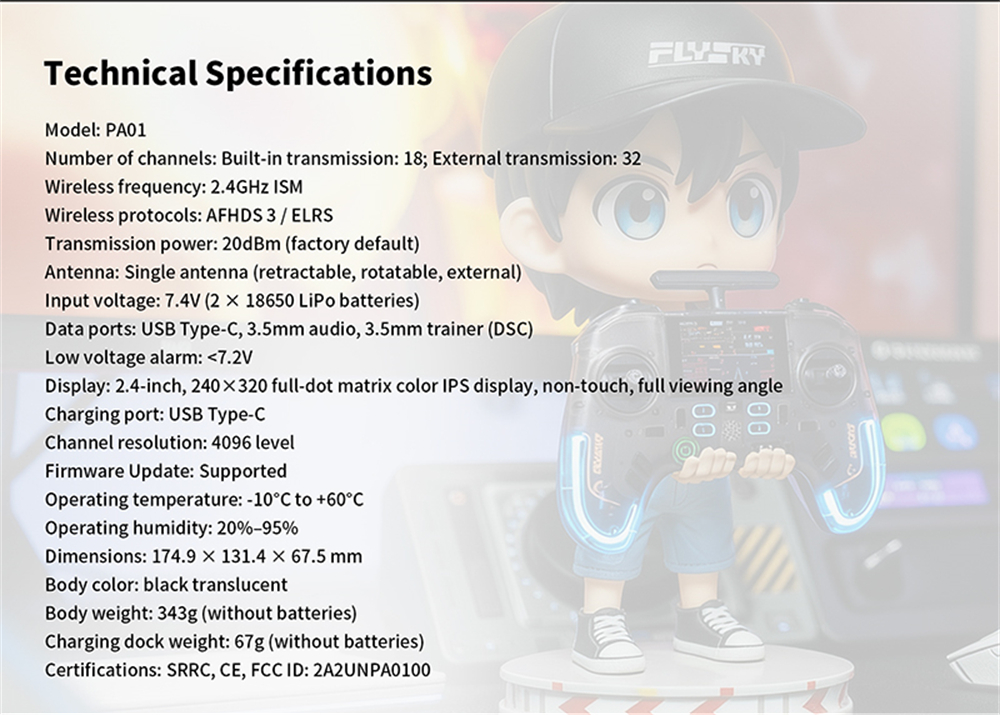

Specification:
Brand: FLYSKY
Model: ProArt PA01
Number of channels: Built-in transmission: 18; External transmission: 32
Wireless frequency: 2.4GHz ISM
Wireless protocols: AFHDS 3 / ELRS

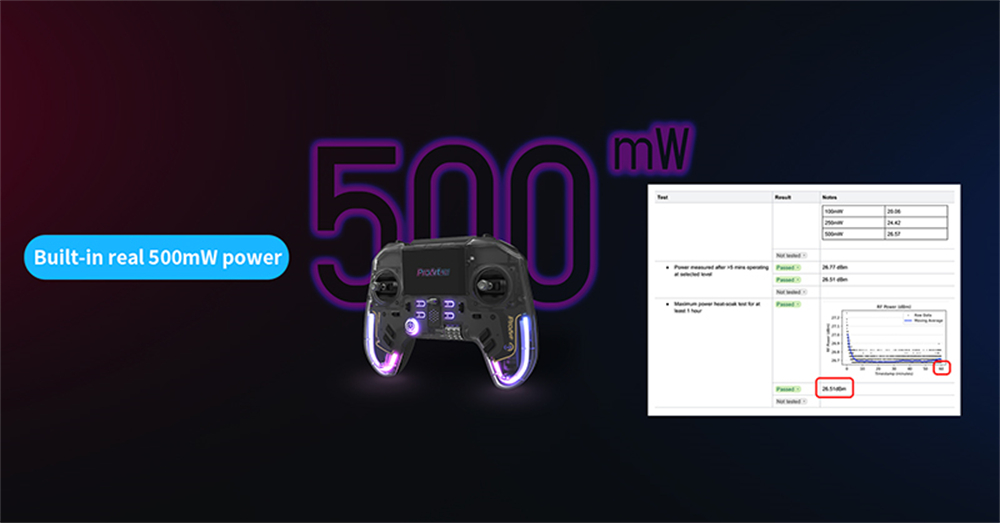

Transmission power: 20dBm (factory default)

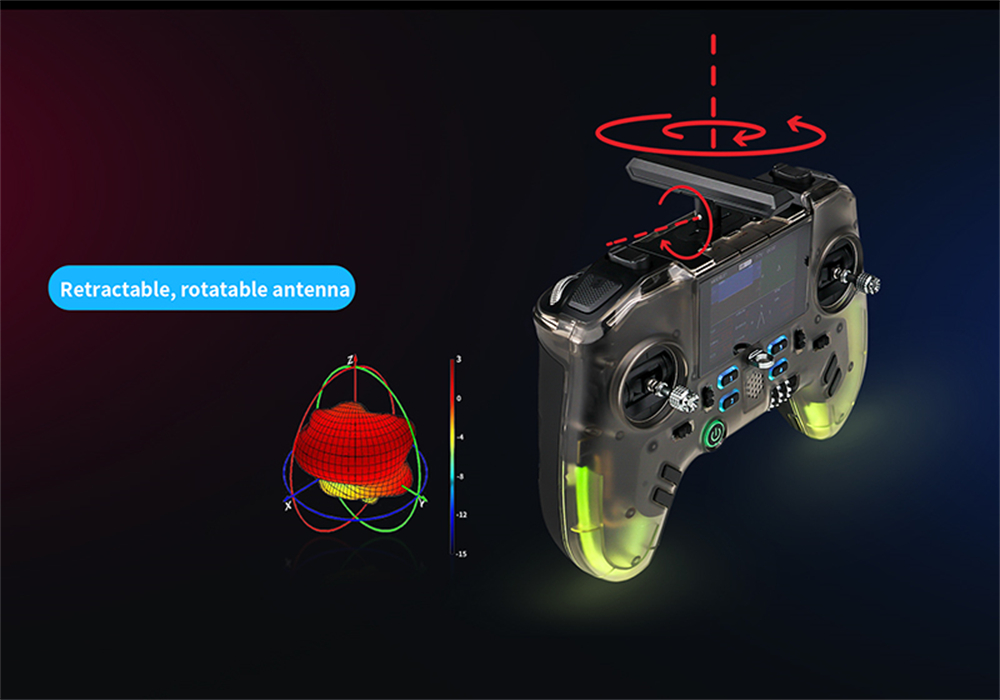

Antenna: Single antenna (retractable, rotatable, external)

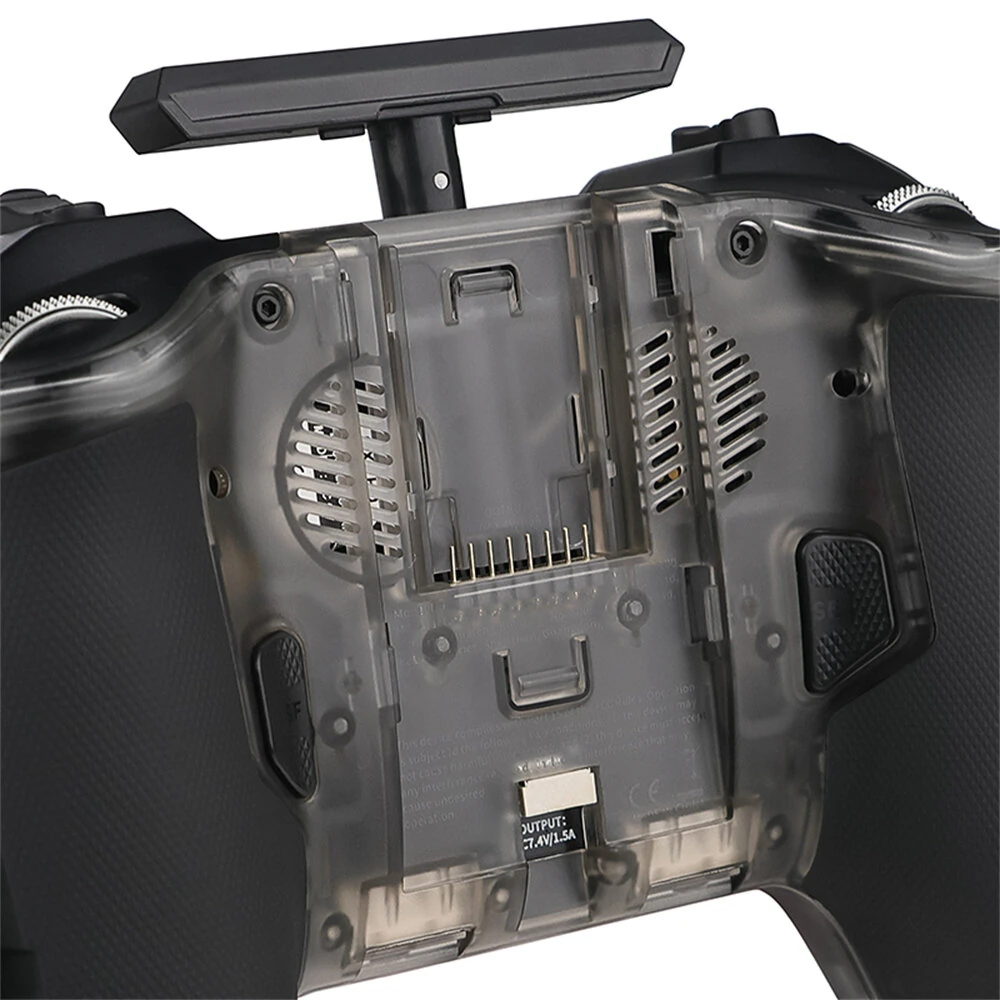

Input voltage: 7.4V (2 × 18650 LiPo batteries)

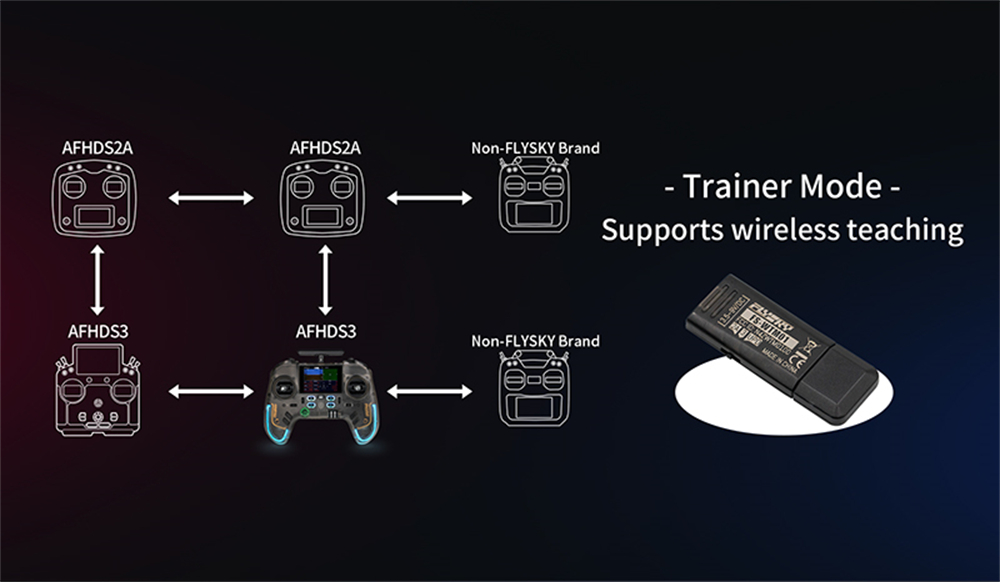

Data ports: USB Type-C, 3.5mm audio, 3.5mm trainer (DSC)
Low voltage alarm: <7.2V
Display: 2.4-inch, 240 × 320 full-dot matrix color IPS display, non-touch, full viewing angle
Charging port: USB Type-C
Channel resolution: 4096 level
Firmware Update: Supported
Operating temperature: -10°C to +60°C
Operating humidity: 20%–95%
Dimensions: 174.9 × 131.4 × 67.5 mm
Body color: black translucent
Body weight: 343g (without batteries)
Charging dock weight: 67g (without batteries)
Certifications: SRRC, CE, FCC ID: 2A2UNPA0100

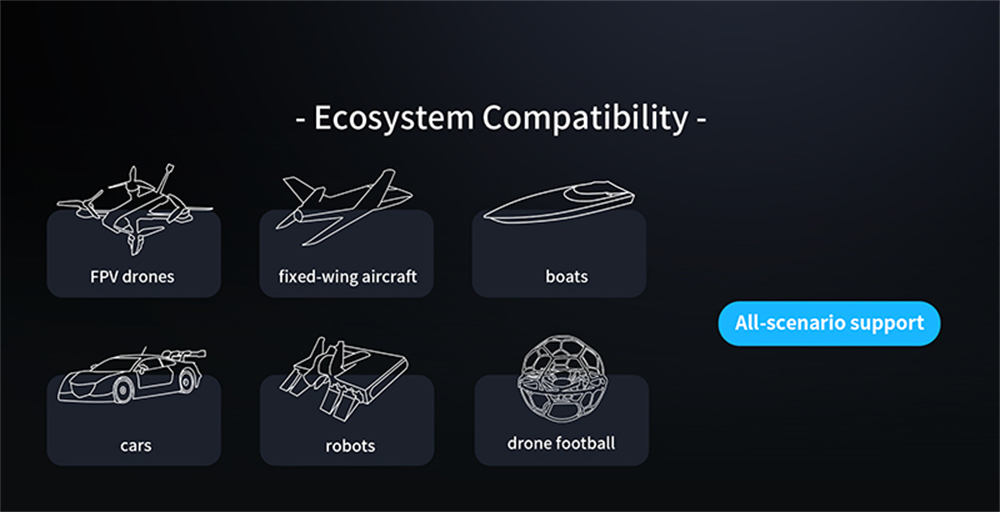

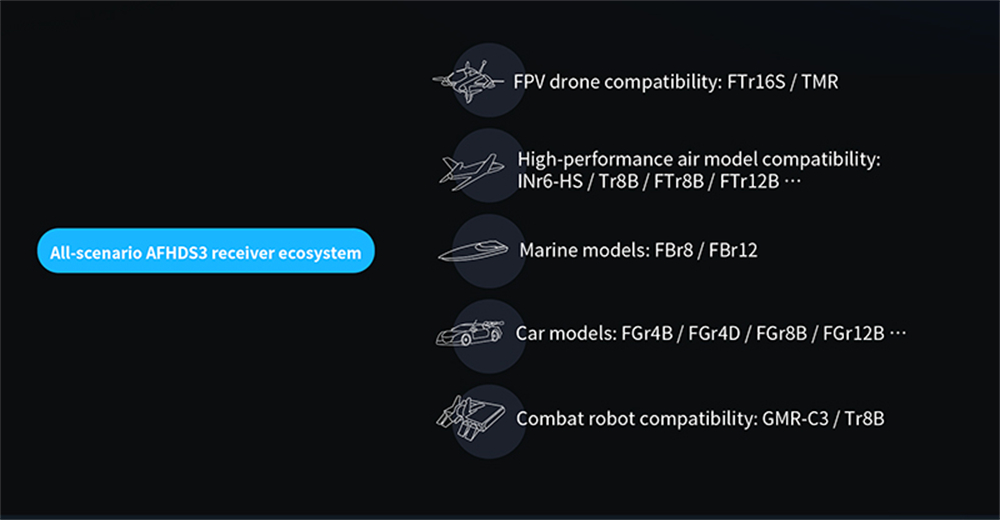

Compatibility:
FPV drone compatibility: FTr16S / TMR
High-performance air model compatibility: INr6-HS / Tr8B/ FTr8B / FTr12B …
Marine models: FBr8 / FBr12All-scenario AFHDS3 receiver ecosystem
Car models: FGr4B / FGr4D / FGr8B / FGr12B …
Combat robot compatibility: GMR-C3 /Tr8B

Feature:
High-Resolution IPS Display
Enjoy clear visuals on the 2.4-inch full-color IPS screen with a wide viewing angle, offering superior brightness even under direct sunlight.

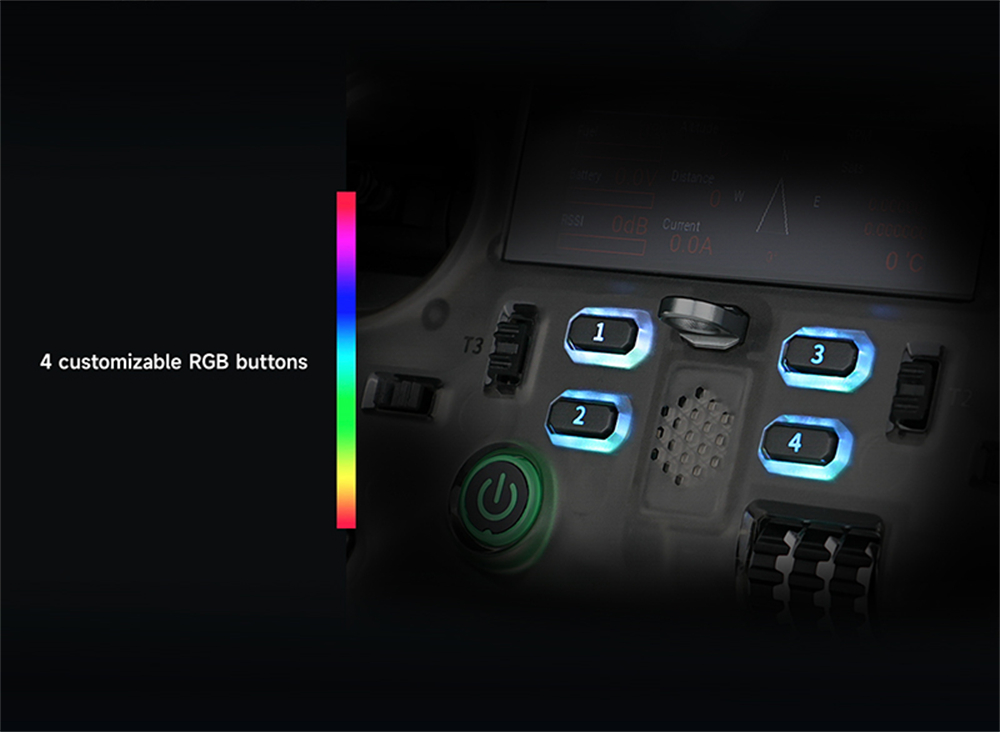

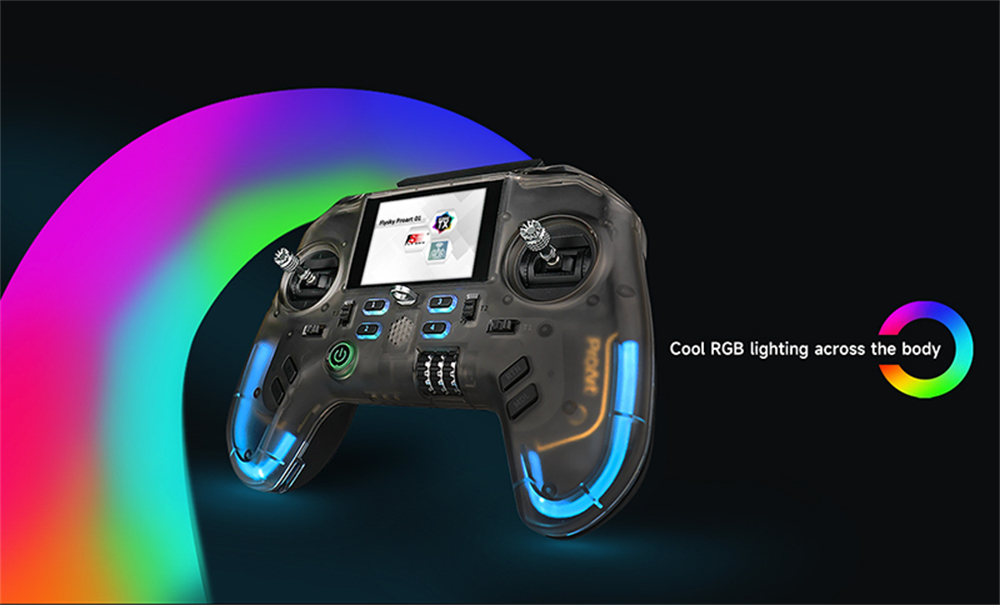

Customizable RGB Lighting & Buttons
Stylish RGB lighting across the body and four RGB buttons provide the flexibility to customize functionalities and appearance, enabling a personalized experience.

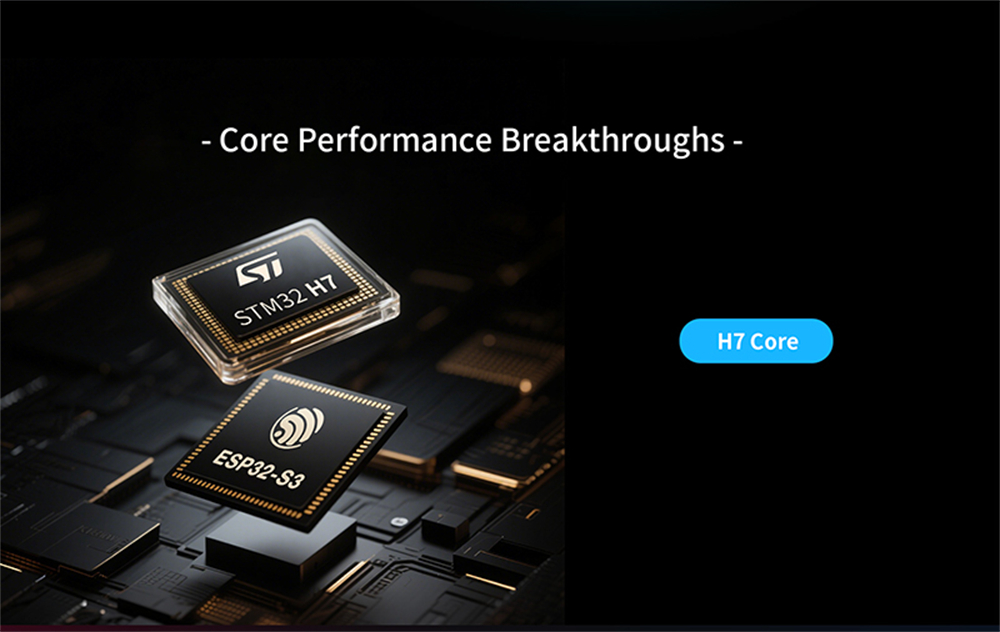

Advanced Core Chipset Performance
Powered by STM32 H7 and ESP32-S3 chips, delivering high-speed processing and seamless transmission protocols—AFHDS 3 / ELRS—for higher precision and reliability.

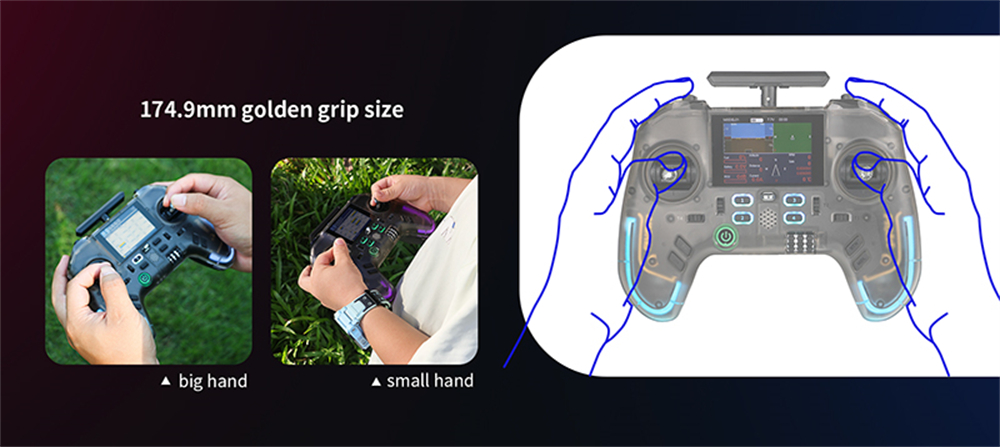

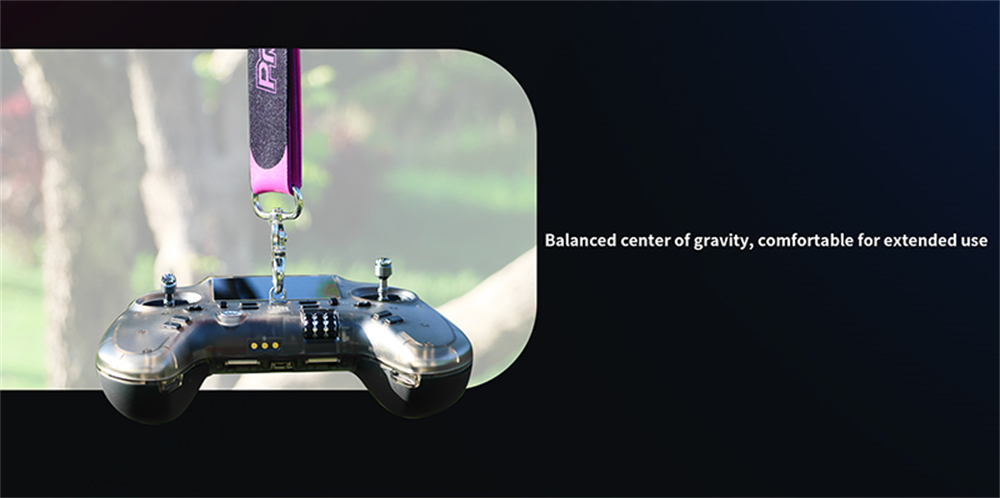

Enhanced Grip Design for Comfort
Ergonomic design with 3D-mesh anti-slip grips ensures extended comfortable use, ideal for long gaming or remote control sessions.

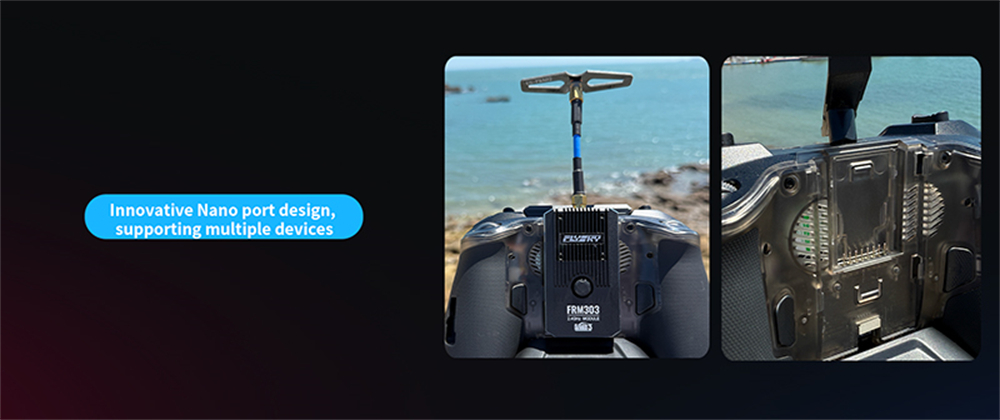

Multiple Connectivity Ports
Equipped with USB Type-C, 3.5mm audio and trainer ports to connect multiple devices—perfect for diverse gaming and remote-control needs.

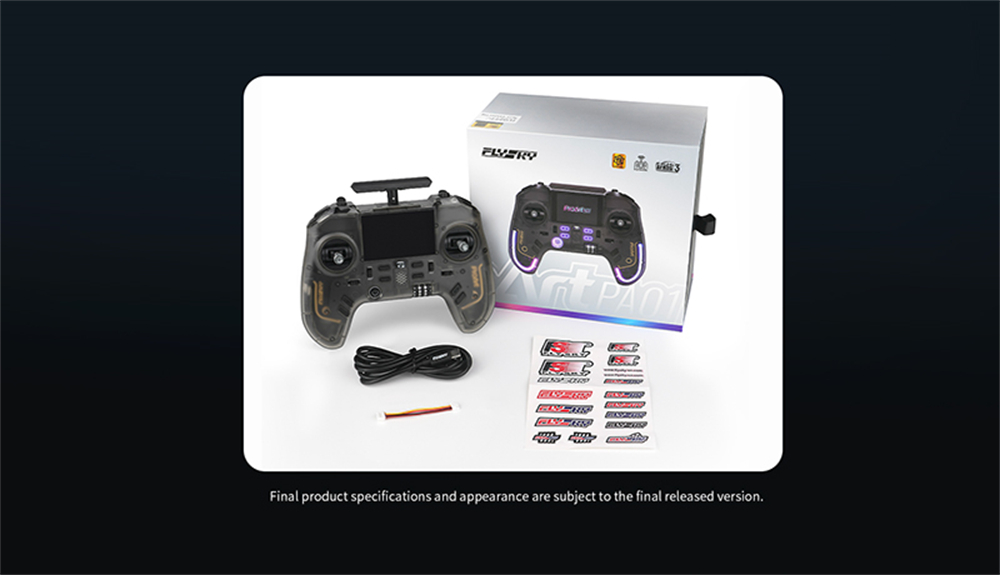

Package included:
1 x FLYSKY PA01 Radio Controller
