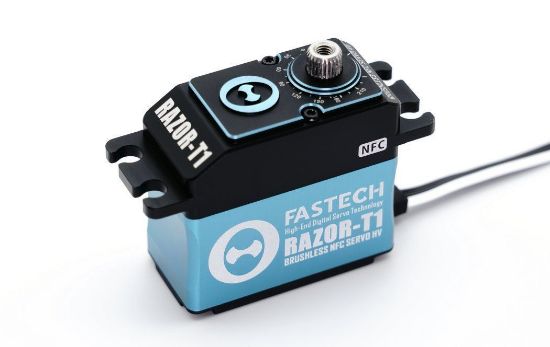

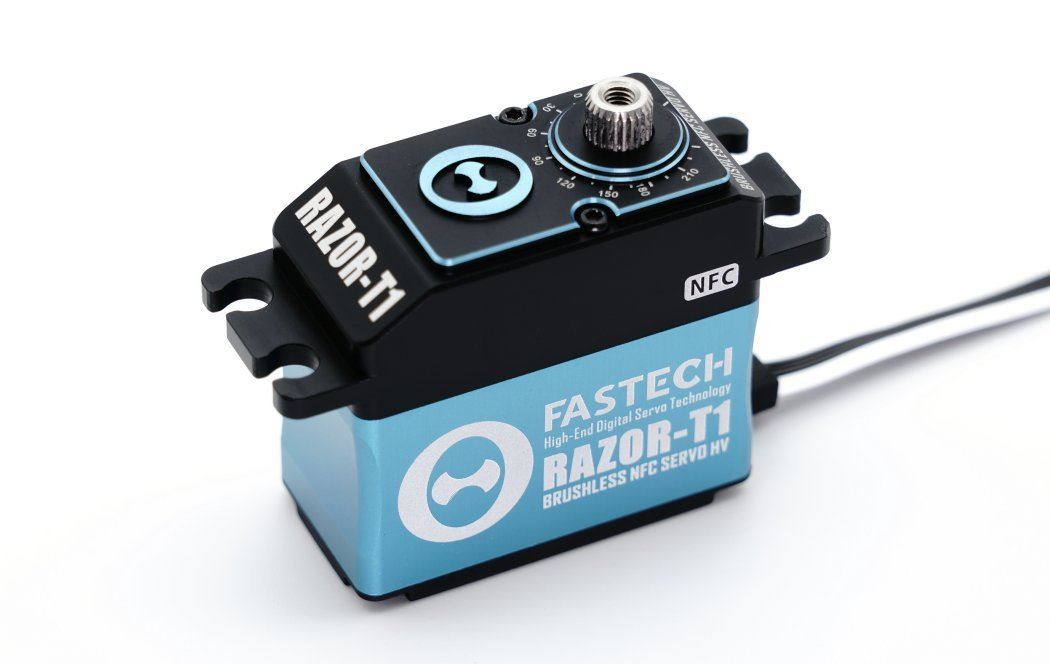

THETA Fastech Razor-T1 Brushless NFC Tail Servo

Theta series servo is the world's first high-end brushless adjustable servo (with NFC parameter adjustment function), created by Fastech Company.

PRODUCT FEATURES:
1 All steel gear with lock pins makes its super torque and durability.
2 Completely new designed and programmed circuit makes its fast response and operation speed.Speed, strength and accuracy reach to the highest level in the world,provide users with fast,accurate and smooth feel.
3 NFC sensoring wire and chip allow near field communication between your phone and the servo.
4 The load current can be adjusted by APP to balance the torque output and power consumption.
5 The load protection function allows limitation of the servo current to protect it from mechanical stuck or overheat, and even rescue the servo from a servere crash.
6 An inside look of the Razor series servo.

RAZOR-C1 brushless adjustable servo,mainly used for Helicopter Cyclic, Turbine Jet,3D Aircraft Model,Rc cars and other applications requiring large torque.

RAZOR-T1: brushless adjustable servo, mainly used for helicopter locking tail, and other applications requiring high speed.



Factory Default Parameter of RAZOR-T1
Default Operating Speed
5.0V-0.062sec/60°@2.6A
6.0V-0.054sec/60°@2.6A
7.4V-0.047sec/60°@2.6A
8.4V-0.042sec/60°@2.6A

Default Dynamic Torque
5.0V-17kgf.cm@2.6A
6.0V-18kgf.cm@2.6A
7.4V-19kgf.cm@2.6A
8.4V-20kgf.cm@2.6A
Size:38x20x40mm / Weight：73g
