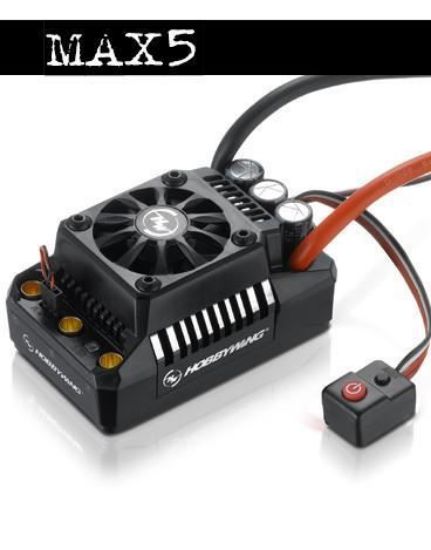

Hobbywing 30104000 Ezrun MAX 5 ESC (3-8S)

• (1) Ezrun MAX5 ESC
• (3) 10 AWG, 200C Black wires for a brushless motor
• (1) Extra set of 8 AWG 200C RED power wire
• (1) Extra set of 10 AWG 200C Black power wire
• (1) Double side tape
• (2) Heat shrink tube
• User's manual
• A HOBBYWING decal

Specification

	MAX5	MAX6	MAX8	MAX10 SCT
Scale Vehicles	1/5th	1/6th, 1/7th	1/8th	1/10th
Cont./Peak Current	200A/1300A	160A/1050A	150A/950A	120A/760A
Motor Mode	Sensorless	Sensorless	Sensorless	Sensorless
Input	9-24 Cells NiMH， 3-8S Lipo	9-24 Cells NiMH， 3-8S Lipo	9-18 Cells NiMH 3-6S Lipo	6-12 Cells NiMH 2-4S Lipo
Motor Limit	8S:KV≤1000 (Motor Size:58110）	6S:KV≤1500 8S:KV≤1200 (Motor Size:5892)	4S:KV≤3000 6S:KV≤2400 (Motor Size:4274）	2S LiPo:KV≤6000; 3S LiPo:KV≤4000; 4S LiPo:KV≤3000 (36XX Series of Motors)
BEC Output	6V/7.2V  adjustable, 6A	6V/7.2V adjustable, 6A	6V/7.2V adjustable, 6A	6V/7.4V adjustable ,3A
Programming Port	Use Fan port	Same	Same	Same
ESC Programming	Via the SET button/LED Program card /LCD Program Box/ WiFi Module	Same	Same	Same
Switch Mode	Electronic Switch	Same	Same	Same
Capacitor protection	Yes	Yes	Yes	Yes
Waterproof	Yes	Yes	Yes	Yes
Size (L.W.H) mm	93.35/58.12/47.81	70.0/56.0/46.5	59.8/48/36.8	49.0/39.5/34.7
Weight g	342g	240g	173.5g	105g
